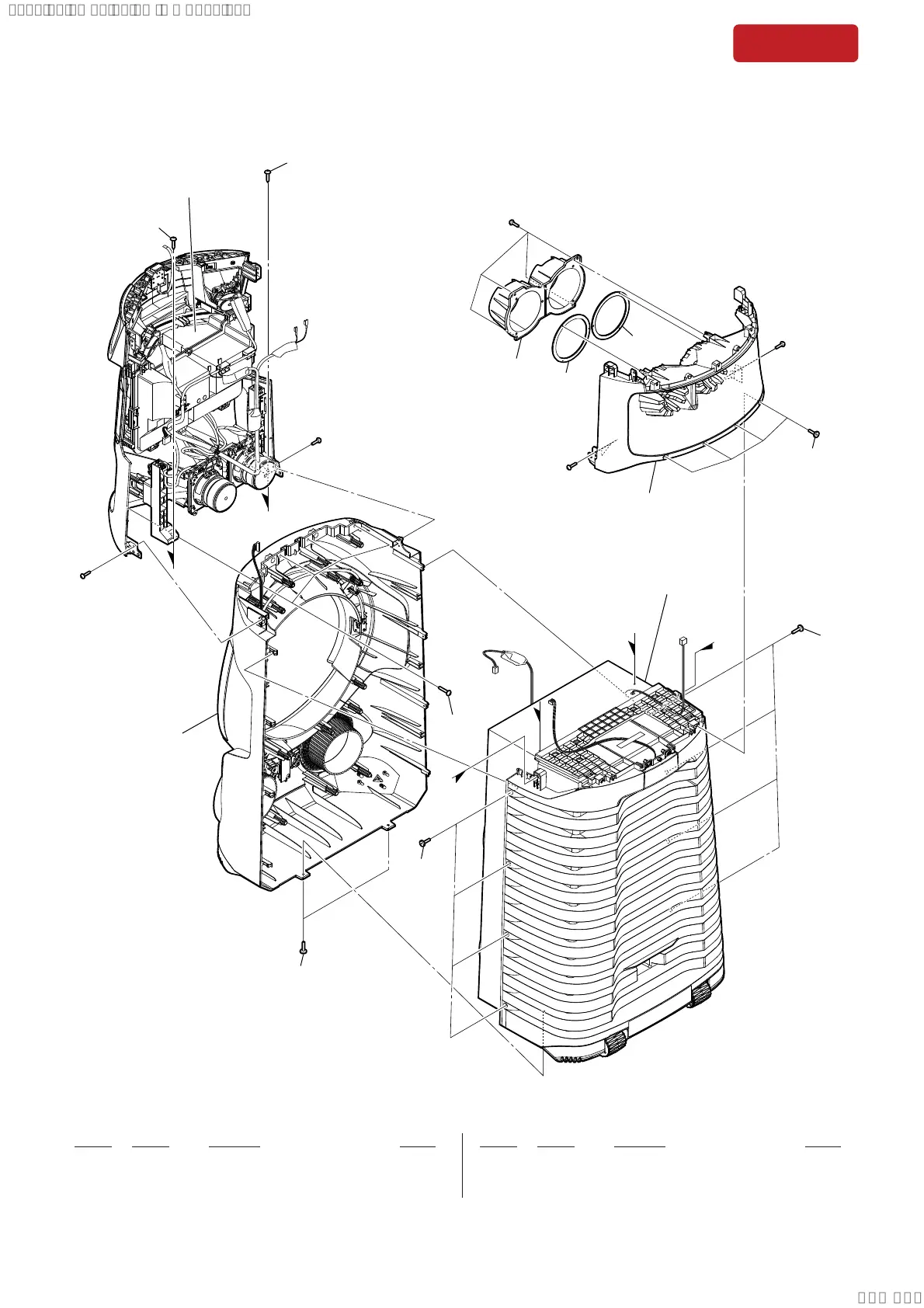

7-5. MID HORN REAR-H SECTION
loudspeaker
(10cm) section
loudspeaker (30cm)
section
203
202
202
201
E
D
F
F
G
G
201
#2
#2
201
E
D
#2
#2
#2
ns
ns
ns
ns
201
front panel SW
section
201 458928121 SCREW, TAPPING
202 453259302 SCREW (4X13) (TR-184A)
203 422996602 SCREW (4X16), +BV TAPPING
#2 768564771 SCREW +BVTP 3X10 TYPE2 IT-3
ns not supplied
