Sony MHC-V83D - Loudspeaker (30 Cm) (Woofer) (SP9)

MHC-V83D
25
Sony CONFIDENTIAL
For Authorized Servicer

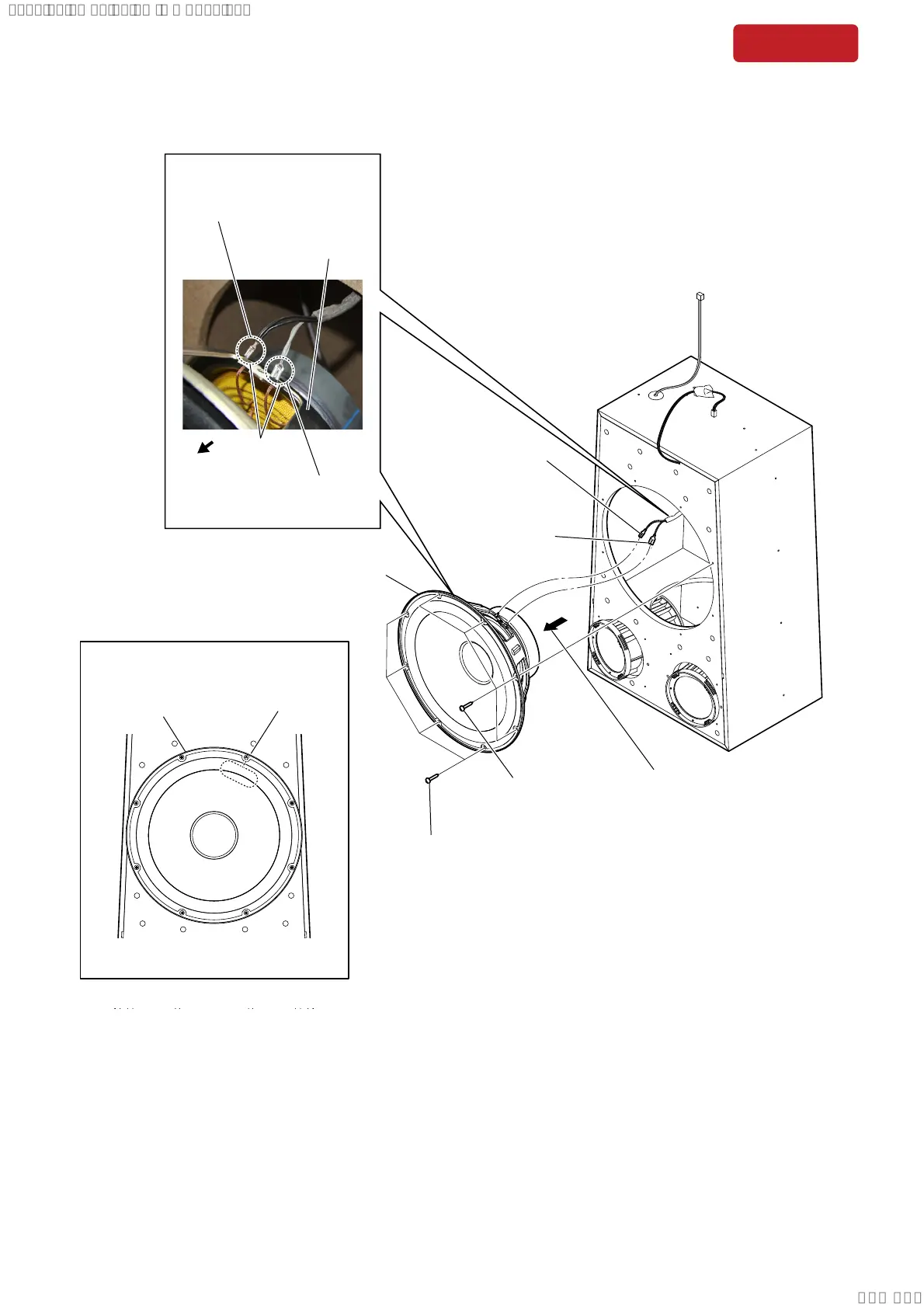

2-15. LOUDSPEAKER (30CM) (WOOFER) (SP9)
1 four screws
((1) (4 u 20),
+BV TAPPING)
2 terminal
(narrow side)
[grey/black]
2 terminal
(wide side)
[grey]
4 loudspeaker (30cm)
(woofer) (SP9)
1 four screws ((1) (4 u 20),
+BV TAPPING)
3 Remove the loudspeaker (30cm)
(woofer) (SP9) in the direction
of the arrow.
,QVWDOODWLRQGLUHFWLRQIRUWKHORXGVSHDNHU
FPZRRIHU63
terminal position
loudspeaker (30cm)
(woofer) (SP9)
Push the protrusion,
and remove the terminal
(wide side) [grey].
loudspeaker (30cm)
(woofer) (SP9)
Push the protrusion, and remove
the terminal (narrow side)
[grey/black].
:LUHVHWWLQJ
protrusion
front side
