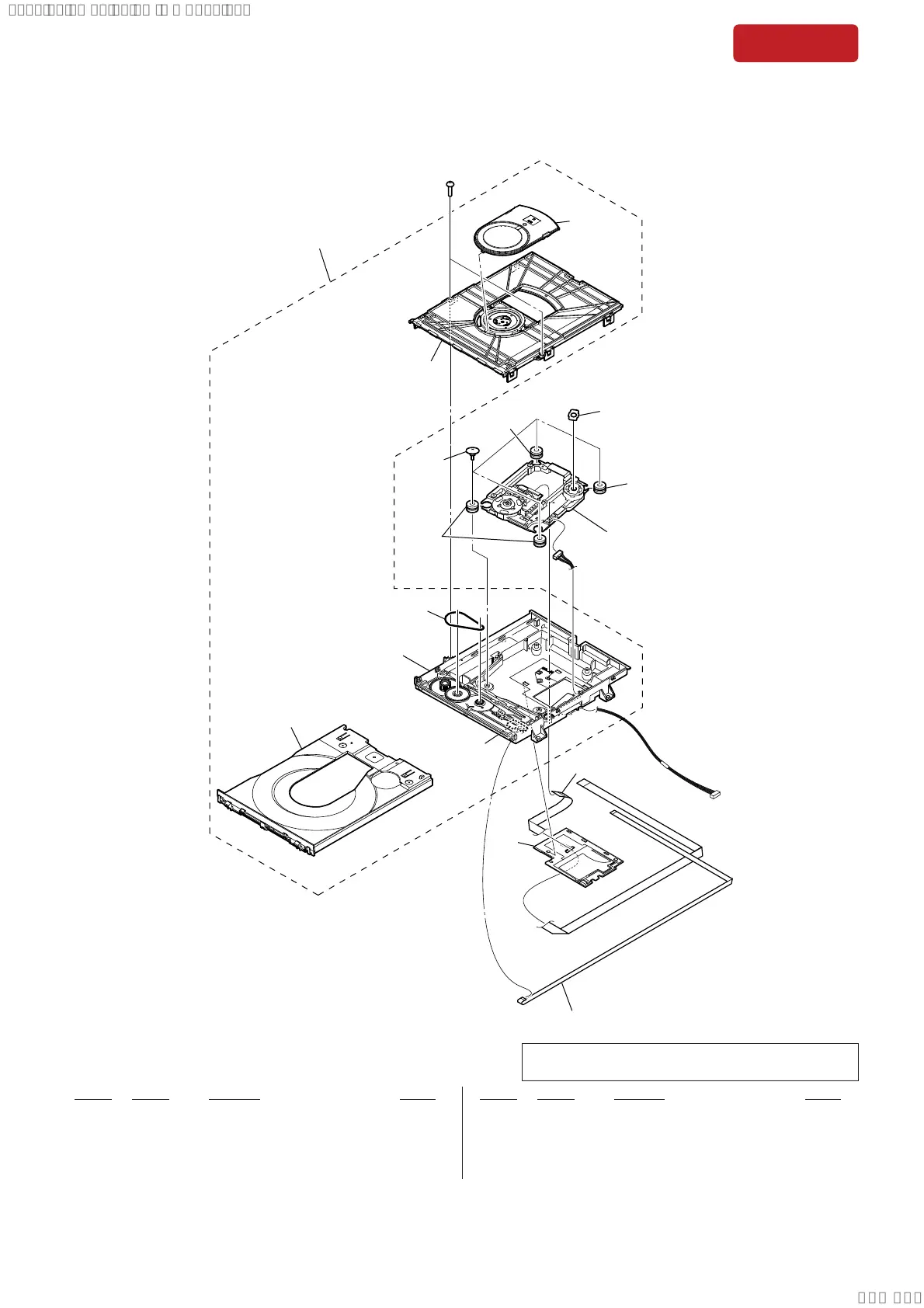

7-15. DVD MECHANISM SECTION
(CDM90-DVBU204//M)
Note: If fl exible fl at cable is replaced, install it after bending
it in the same form as that before replacement.
ns
ns
#1
MS-476
board (ns)
ns
(including MS-476 board)
ns
ns
ns
ns
701
702
703
703
703
704
705
706
0
701 A1896391D LOADING COMPLETE ASSY (T)
(including MS-476 board)
702 308759901 INSULATOR SCREW
703 263461821 INSULATOR
0
704 A2046956A SERVICE, OPTICAL DEVICE (7G)
705 100544111 FLEXIBLE FLAT CABLE (24 CORE)
706 100543611 FLEXIBLE FLAT CABLE (5 CORE)
ns not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
