Sony MHC-V83D - DAB Assembly_Uart (AEP); Rear Panel ST-H Section

MHC-V83D
15
Sony CONFIDENTIAL
For Authorized Servicer

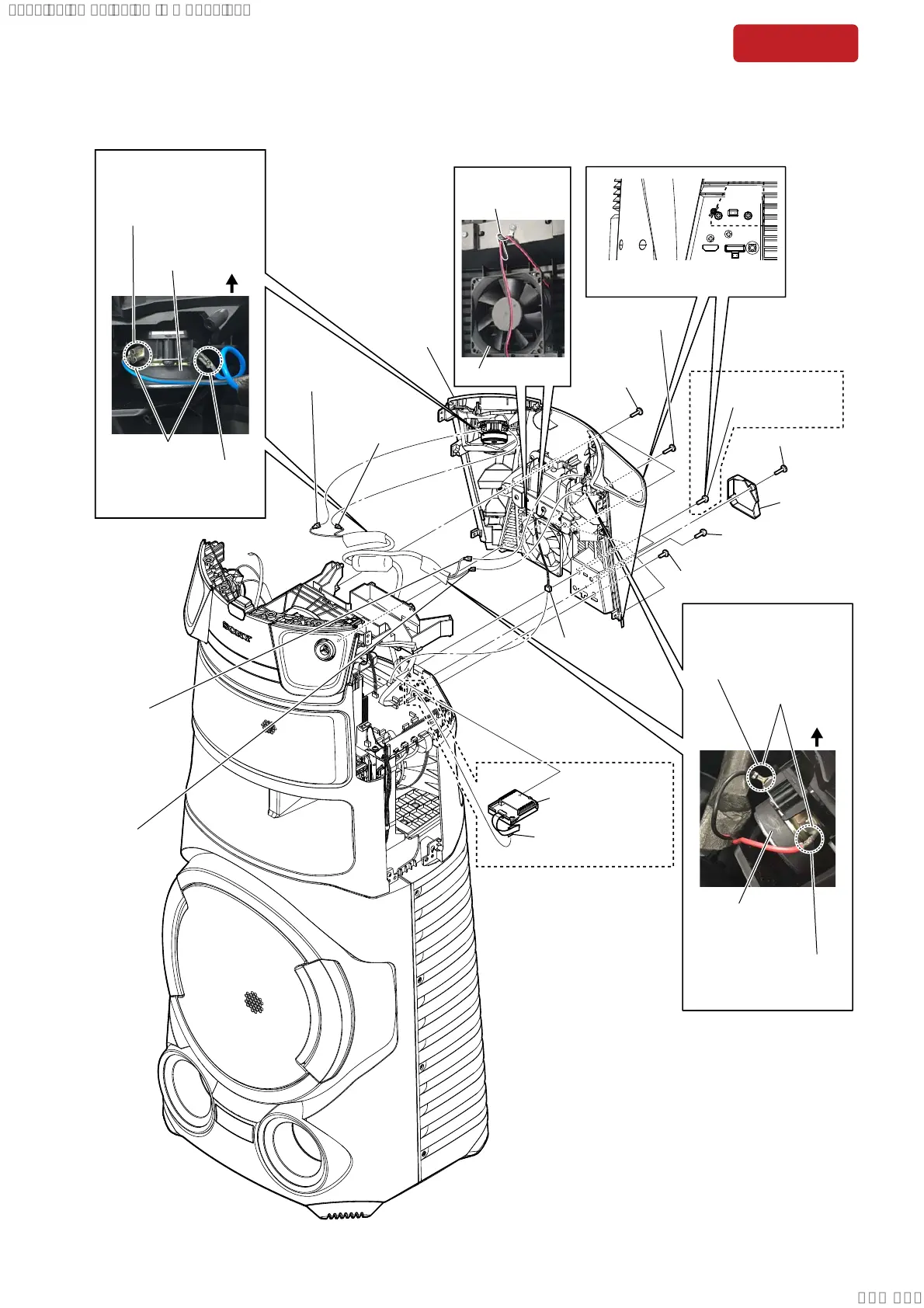

2-5. DAB ASSEMBLY_UART (AEP), REAR PANEL ST-H SECTION
4 flexible flat cable
(11 core) (CN600)
5 DAB
assembly_UART
2 cover, jack
assy
3 two screws
(+BVTP 3 u 8)
6 three screws
(tapping)
7 two screws
(tapping)
1 one screw
(tapping)
(AEP)
(AEP)
(AEP)
– Rear view –
8 one screw
(+BVTP 3 u 8)
9 one screw
(+B 3 u 6)
0 CN2001
(2P)
qa terminal
(wide side)
[blue/black]
qa terminal
(narrow side)
[blue]
qs terminal
(wide side)
[red/black]
qs terminal
(narrow side)
[red]
qd rear panel
ST-H section
protrusion
clamp
fan, DC
:LUHVHWWLQJ
:LUHVHWWLQJ
Push the protrusion, and
remove the terminal
(wide side) [blue/black].
Push the protrusion, and
remove the terminal
(narrow side) [blue].
top side
loudspeaker (4cm)
(tweeter) (R-CH)
(SP4)
protrusion
:LUHVHWWLQJ
Push the protrusion, and
remove the terminal
(wide side) [red/black].
Push the protrusion, and
remove the terminal
(narrow side) [red].
top side
loudspeaker (4cm)
(tweeter) (L-CH)
(SP8)
SYSSET
