Sony MHC-V83D - Rear Cabinet Section

MHC-V83D
24
Sony CONFIDENTIAL
For Authorized Servicer

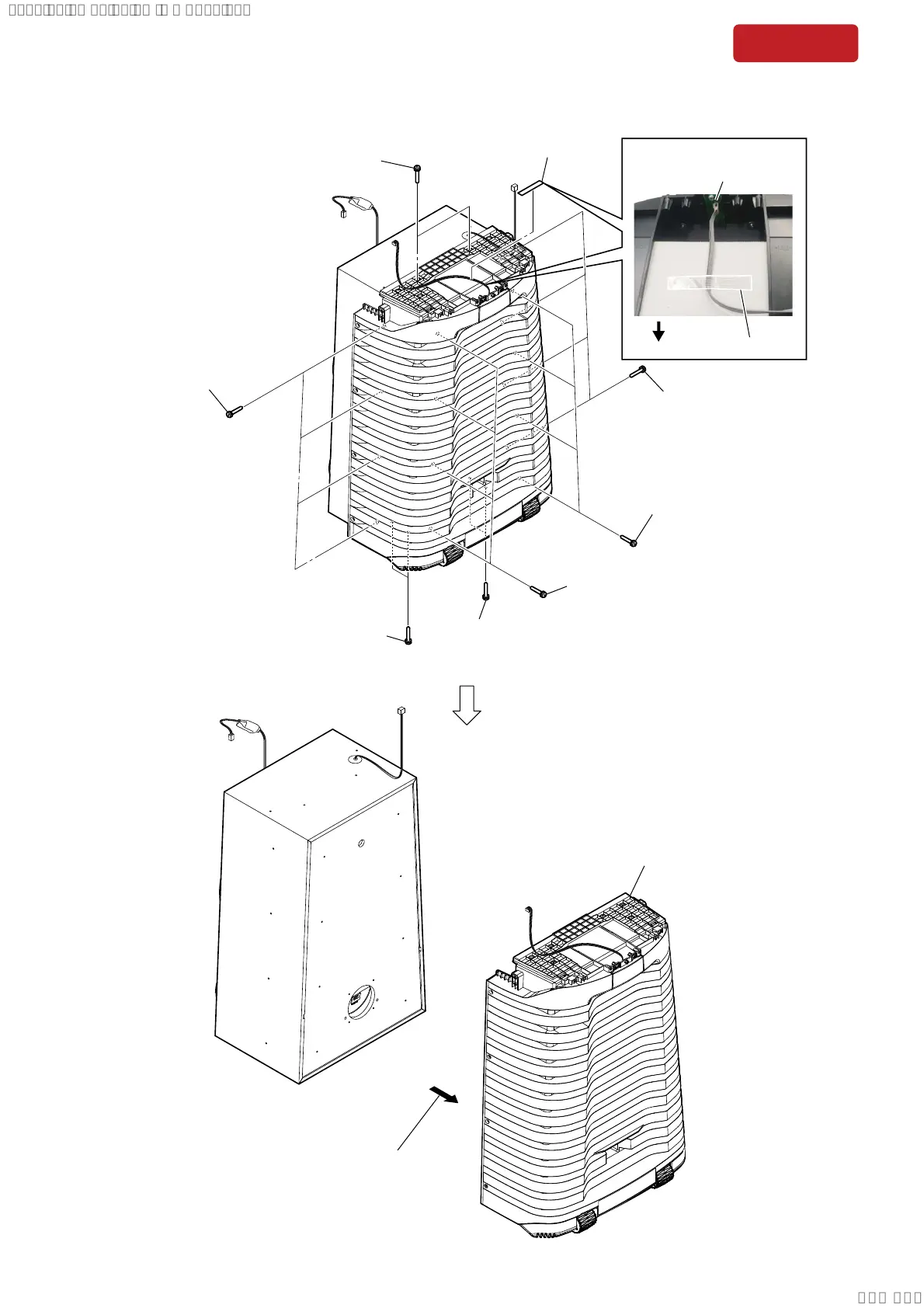

2-14. REAR CABINET SECTION
2 two screws
(M4 u 25)
1 filament tape
3 four screws
(M4 u 25)
3 four screws
(M4 u 25)
3 four screws
(M4 u 25)
3 four screws
(M4 u 25)
4 two screws
(M4 u 25)
4 two screws
(M4 u 25)
– Rear view –
filament tape
rear side
:LUHVHWWLQJ
PARTY RGB-BK board
5 Remove the rear cabinet section
in the direction of an arrow.
6 rear cabinet section
SYSSET
