Sony MVC-FD91

2-6

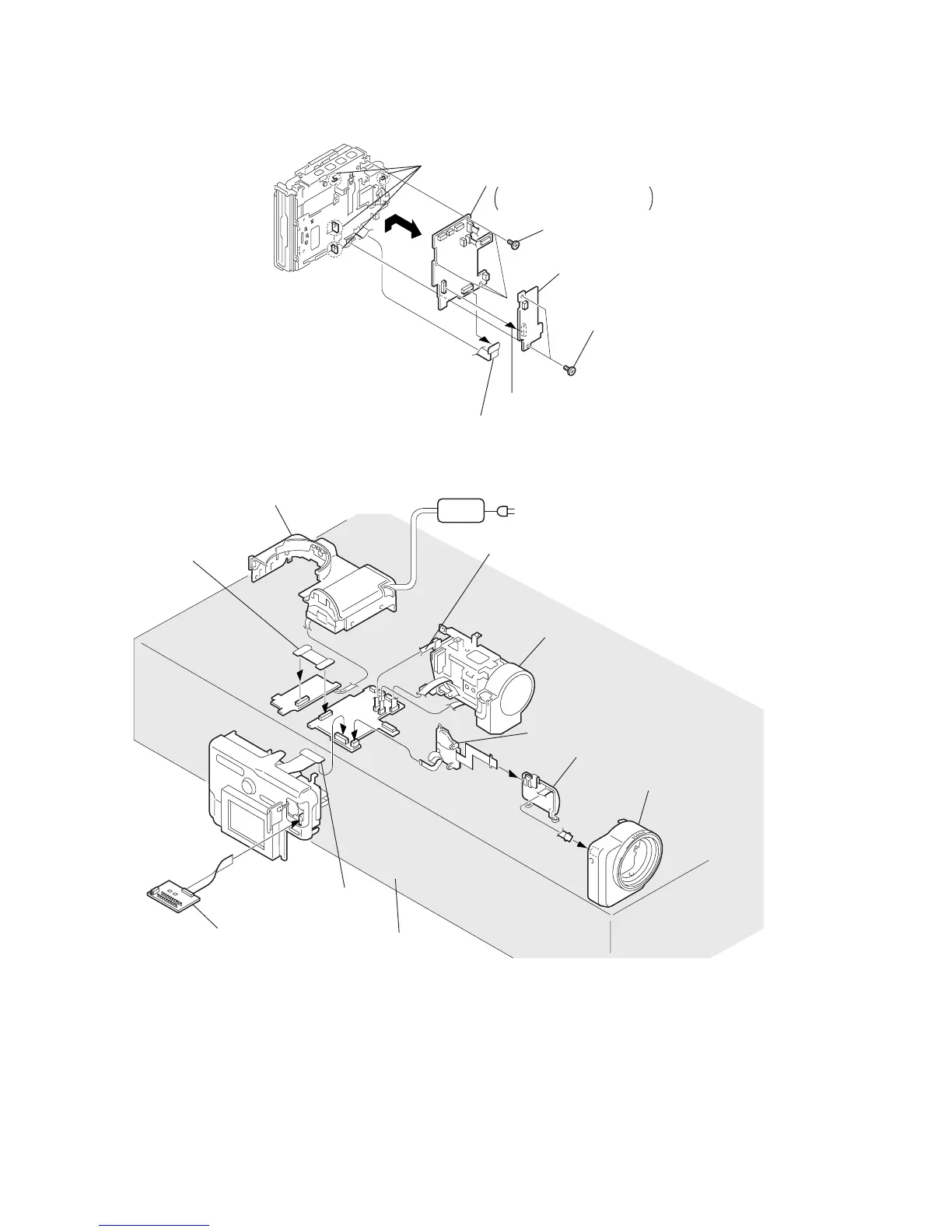

2-8. FC-67 BOARD, DD-119 BOARD
[MAIN (FC-67) BOARD CHECK SERVICE POSITION]
FC-67
Board
DD-119
DD-119
FC-67
Cabinet (VP) assembly
1 Screws (M2 × 3)
a
2
Board to board connector (50P)
3 DD-119 (110) board
5 Screws (M2 × 3)
4 FP-65 flexible board (70P)
6 Remove the claws
7 FC-67 board
Slide it in the direction of the
arrow
a , then remove it.
Cabinet (front) assembly
Extension cable
(J-6082-434-A)
Extension cable (J-6082-357-A)
FP-65 flexible board
CPC-12 jig (J-6082-436-A)
Base
(Use box or the like.)
Lens block
SW block (side sw)
ZM block (front sw)
AC IN
AC
ADAPTOR
