MVC-FD91
4-15 4-16
STEADY SHOT CONTROL
VP-49

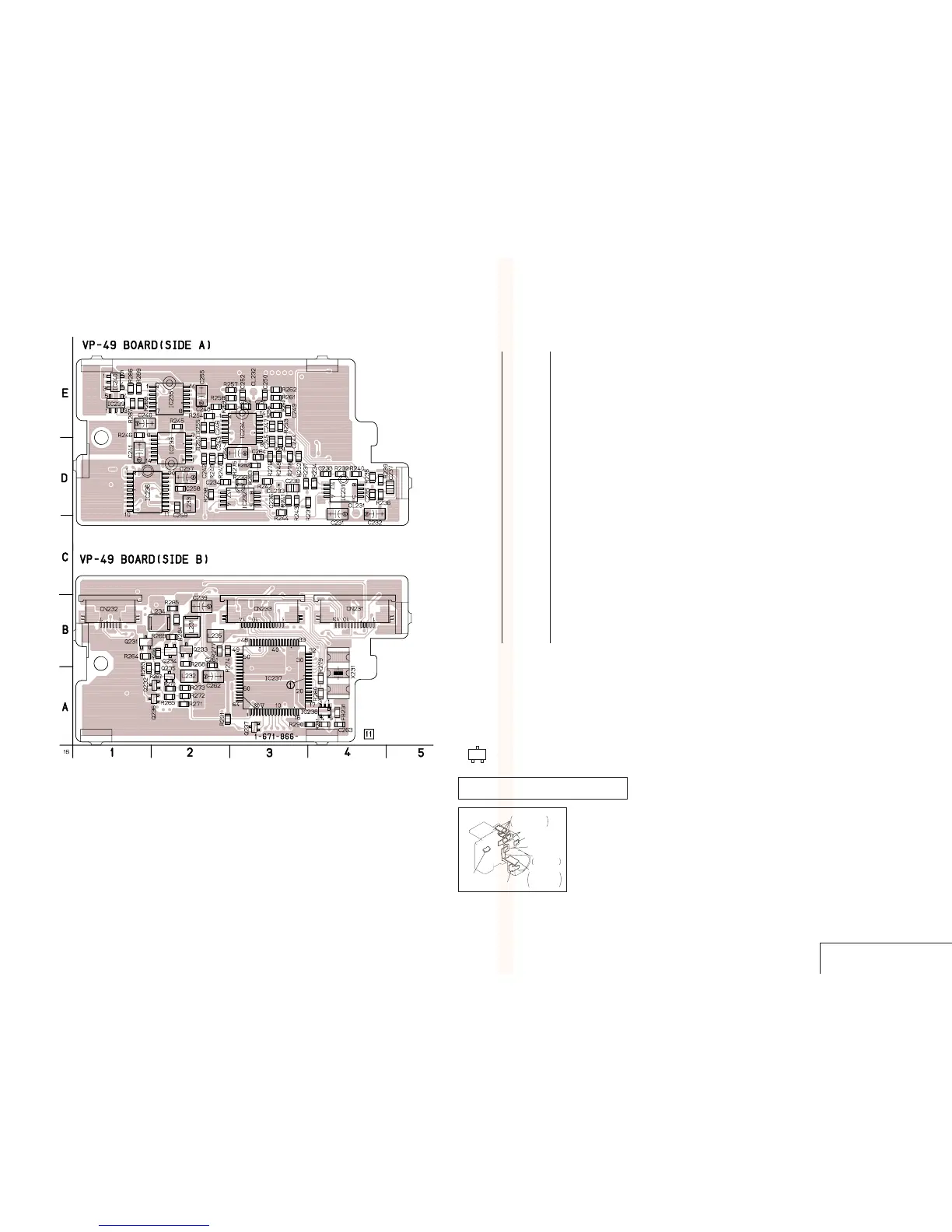

VP-49 (STEADY SHOT CONTROL, ACTIVE PRISM ACTUATOR DRIVE) PRINTED WIRING BOARD
— Ref. No. VP-49 Board; 2,000 Series —
For printed wiring boards
• This board is six-layer print board. However, the pat-
terns of layers two to five have not been included in
the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
VP-49 BOARD
CS UNIT (Included VAP UNIT)
(STEADY SHOT DRIVE)
RL-52
(RELEASE SWITCH)
VF-131
LCD DRIVE,
TIMING GENERATOR,
BACK LIGHT DRIVE
FLASH UNIT
MA-348
(MIC AMP, ALC)
CD-207
(CCD IMAGER)
SE-78
YAW,
PITCH SENSOR
VP-49
STEADY SHOT
CONTROL,
ACTIVE PRISM
ACTUATOR DRIVE
C231 C-4
C232 C-4
C234 D-2
C235 C-4
C236 C-3
C237 C-5
C238 C-3
C238 D-4
C239 B-2
C240 D-1
C241 D-1
C242 D-2
C243 D-2
C244 D-3
C245 D-3
C246 D-2
C247 D-3
C248 D-2
C249 D-3
C250 E-3
C251 D-3
C252 E-3
C253 D-3
C254 D-3
C255 E-2
C257 D-2
C258 C-2
C259 C-2
C261 B-2
C262 A-2
C263 A-4
C264 D-3
CN231 B-4
CN232 B-1
CN233 B-3
FB231 A-4
IC231 C-4
IC232 C-3
IC233 A-4
IC233 D-2
IC234 D-3
IC235 E-2
IC236 C-1
IC237 A-3
IC239 E-1
IC240 E-1
L231 B-2
L232 A-2
L233 C-2
L234 B-2
L235 B-2
Q231 B-1
Q232 A-2
Q233 B-2
Q234 B-2
Q235 A-2
Q236 A-2
Q237 A-3
R231 C-3
R232 D-4
R234 D-4
R235 D-3
R235 D-4
R236 C-2
R236 C-4
R237 D-3
R239 D-4
R240 D-4
R241 C-3
R242 D-3
R243 C-3
R244 C-3
R245 D-2
R246 D-1
R247 D-2
R248 D-3
R249 D-2
R250 D-2
R251 D-3
R252 D-3
R253 D-3
R254 D-2
R255 D-2
R256 D-3
R257 E-3
R258 E-3
R259 D-3
R260 D-3
R261 E-3
R262 E-3
R263 A-1
R264 B-1
R265 A-2
R266 B-2
R267 A-2
R268 B-2
R269 B-2
R270 A-2
R271 A-2
R272 A-2
R273 A-2
R274 B-2
R275 D-2
R276 D-3
R277 B-2
R278 D-3
R279 A-4
R280 A-4
R281 A-4
R282 D-3
R283 D-3
R284 B-2
R285 B-2
R286 E-1
R287 E-1
R288 E-1
R289 E-1
R290 A-4
R291 A-2
X231 A-4
