5-21
Address
6B
6C
6F
70
74
75
E0
Data
80
80
30
B0
98
80
1B
Remark
White balance adjustment
White balance adjustment
VCO adjustment
Backlight consumption current
adjustment
Bright adjustment
Contrast adjustment
Fixed value
1. EVF Initial Data Input
Mode Playback
Signal Arbitrary
Adjustment Page F
Adjustment Address 6B, 6C, 6F, 70, 74, 75, E0
Adjusting method:
1) Select page: 0, address:01, and set data: 01.
2) Select page: F, and input the data in the following table.
Note: To write in the non-volatile memory (EEPROM), press the
PAUSE button of the adjustment remote commander each time
to set the data.
Processing after Completing Adjustment
1) Select page: 3, address: 00, and set data: 29.
2) Select page: 3, address: 01, and set data: 29, and press the
PAUSE button of the adjustment remote commander.
2. VCO Adjustment (VF-131 board)
Set the VCO free-run frequency. If deviated, the LCD screen will
be blurred.
Mode Playback
Signal Arbitrary
Measurement Point Pin @™ of CN701 (EVF VCO) on PK-
45 board
Measuring Instrument Oscilloscope (DC range)
Adjustment Page F
Adjustment Address 6F
Specified Value A = 1.8 ± 0.1V
Adjusting method:
1) Select page: 0, address: 01, and set data: 01.
2) Select page: 3, address: 02, and set data: 01.
3) Check the GND level of the oscilloscope.
4) Select page: F, address: 6F, change the data and set the voltage
(A) to the specified value.
5) Press the PAUSE button of the adjustment remote commander.
6) Select page: 3, address: 02, and set data: 00.
7) Select page: 0, address: 01, and set data: 00.

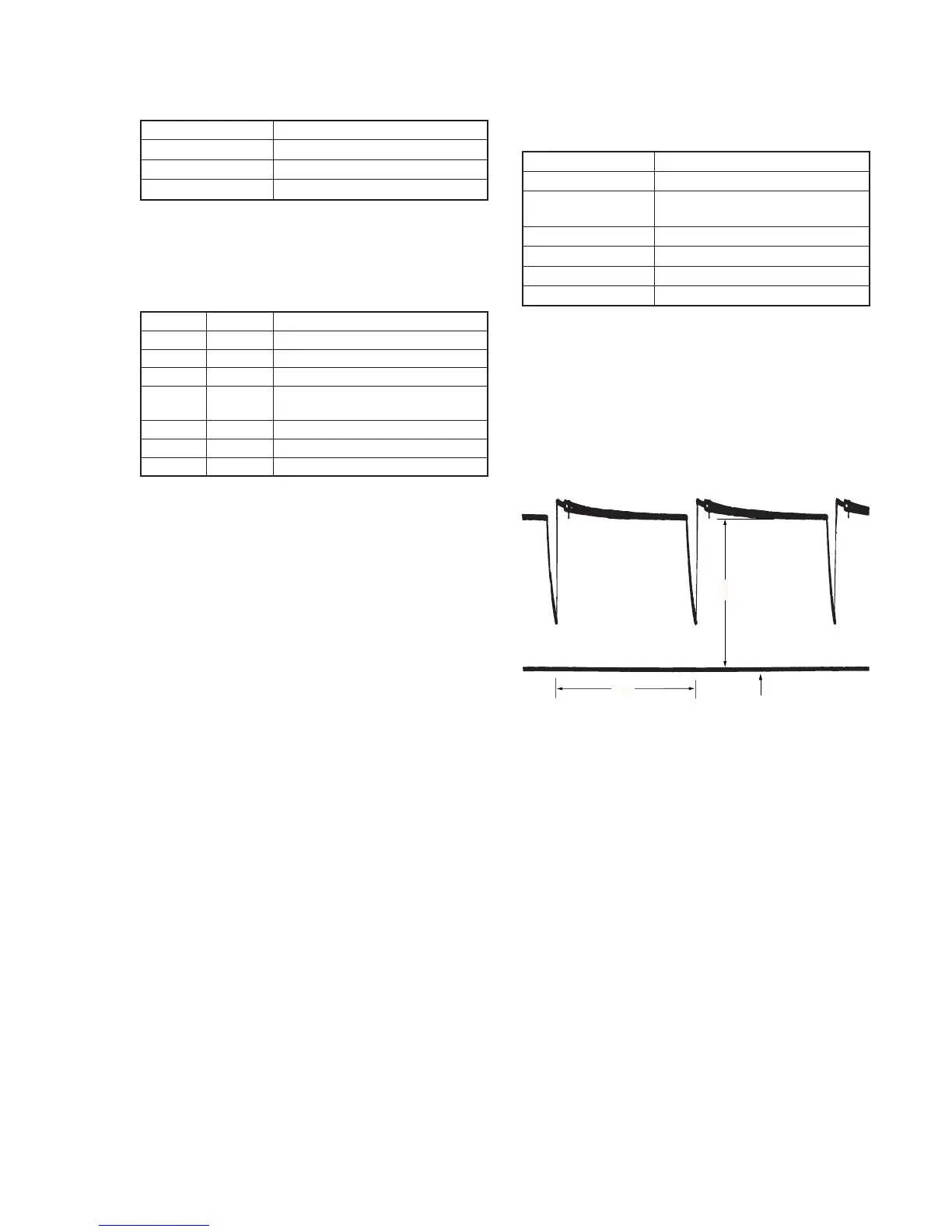

Fig. 5-1-17.
A
GND level (0 Vdc)
H
To Next Page
