6-1
MVC-FD91
SECTION 6
REPAIR PARTS LIST

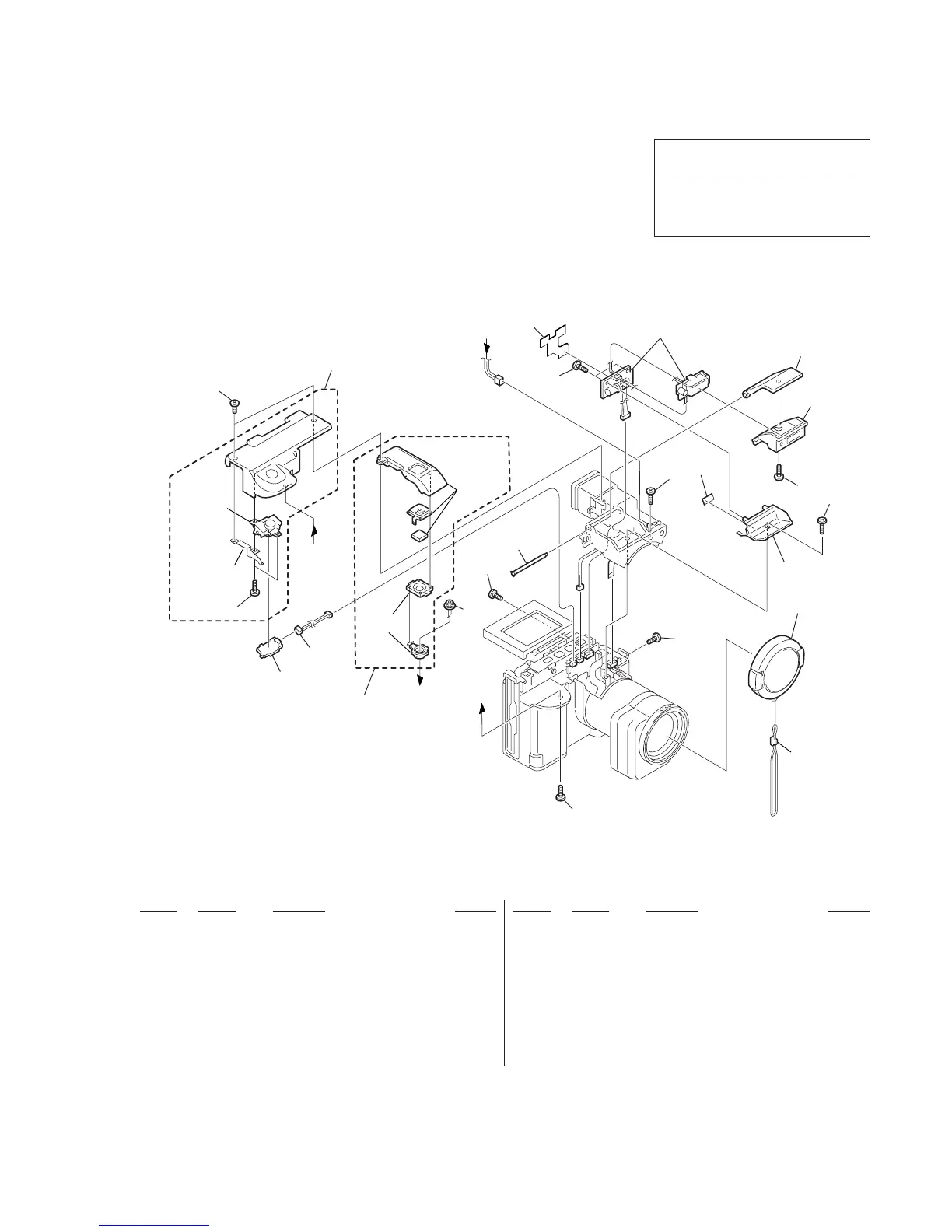

6-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
16
a
a
b
b
not
supplied
not
supplied
not
supplied
not
supplied
MIC901
1
2
15
2
3
4
5
6
2
7
8
1
9
10
11
1
2
13
14
2
12
1 3-948-339-01 SCREW, TAPPING
2 3-968-729-01 SCREW (M2), LOCK ACE, P2
3 X-3949-131-1 CABINET ASSY, MICROPHONE
4 1-959-175-11 HARNESS (RL-51)
5 A-7073-748-A RL-52 BOARD, COMPLETE
6 3-948-339-61 TAPPING
7 X-3949-129-1 CABINET (RL) ASSY
8 3-053-049-01 SHEET, ST PROTECTION
! 9 1-418-067-11 FLASH UNIT (50110)
10 3-053-023-01 CABINET (UPPER), POP
11 X-3949-138-1 CABINET (LOWER) ASSY, POP
12 3-053-036-01 SHAFT, POP
13 3-053-022-01 CABINET, ST BLIND
14 3-053-048-01 SHEET, VIBRATION PROOF
15 X-3949-424-1 CAP ASSY, LENS
16 3-724-594-11 STRING, CAP
MIC901 1-542-312-11 MICROPHONE
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
6-1-1.CABINET (RL) SECTION
