MVC-FD91
FC-67 (CAMERA Y/C PROCESS, DRAM CONTROL, LENS MOTOR DRIVE, D/A CONVERTER, AUDIO A/D.D/A CONVERTER, FD/SYSTEM CONTROL, HI CONTROL)
PRINTED WIRING BOARD
— Ref. No. FC-67 Board; 10,000 Series —

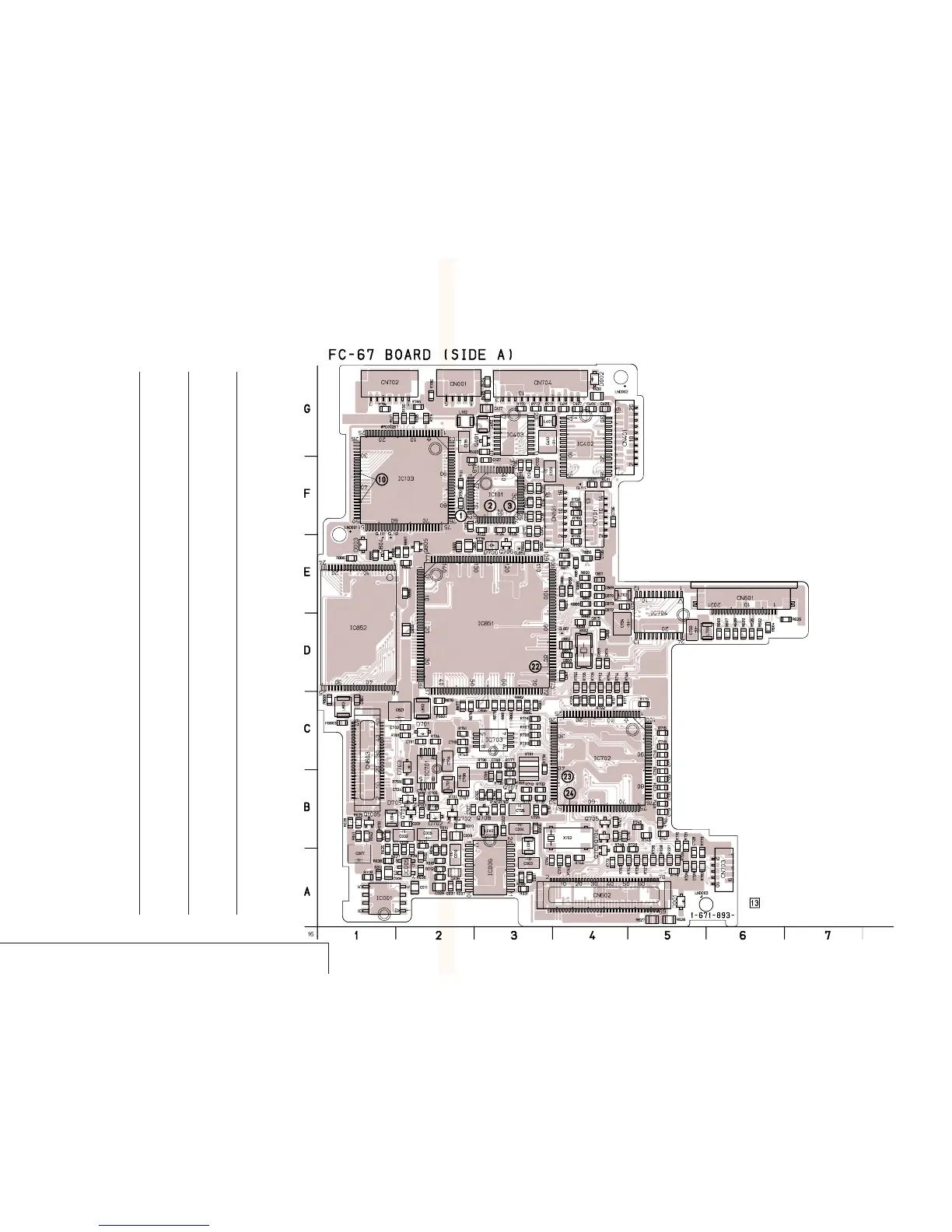

FC-67 BOARD (SIDE A)
C001 A-3
C002 B-3
C003 A-3
C004 B-3
C005 B-2
C006 A-1
C007 A-1
C008 A-2
C009 B-2
C010 A-2
C011 A-2
C028 B-2
C029 A-2
C030 B-2
C031 B-2
C032 B-2
C037 A-2
C111 F-3
C112 F-2
C116 F-3
C117 F-3
C119 F-3
C120 F-3
C121 F-3
C122 F-3
C123 F-3
C124 F-3
C125 F-3
C126 G-2
C127 G-3
C131 F-3
C132 F-2
C135 G-2
C401 F-4
C405 G-4
C407 G-4
C409 G-4
C411 G-4
C412 G-3
C417 G-3
C701 C-2
C702 C-2
C703 B-2
C704 C-2
C705 B-2
C706 B-2
C707 B-2
C708 C-3
C709 B-3
C710 C-5
C711 C-5
C712 C-5
C713 B-5
C714 A-3
C715 A-4
C716 B-4
C717 B-4
C718 C-2
C719 C-5
C722 B-5
C724 B-2
C725 B-3
C726 B-3
C727 B-2
C728 A-5
C729 A-5
C730 B-5
C731 B-5
C732 E-4
C733 D-5
C734 D-4
C735 E-4
C736 F-4
C821 C-2
C853 D-2
C856 C-3
C858 D-4
C859 D-4
C861 D-4
C862 D-4
C865 E-2
C866 E-4
C867 C-1
C868 D-4
C869 E-4
C870 E-4
C871 E-4
C872 E-4
C873 E-4
C874 D-4
C875 D-4
CN001 G-2
CN101 F-4
CN401 G-4
CN601 E-6
CN602 A-4
CN603 C-1
CN701 F-4
CN702 G-1
CN703 A-6
CN704 G-3
D001 A-5
D002 G-4
D003 E-1
D701 C-2
D702 B-2
D703 C-2
D705 B-2
D706 E-3
FB102 F-3
FB801 C-2
FB803 C-1
IC001 A-1
IC005 A-2
IC006 A-3
IC101 F-3
IC103 F-2
IC402 G-4
IC403 G-3
IC701 C-2
IC702 C-4
IC703 C-3
IC704 E-5
IC851 D-3
IC852 D-1
L001 B-3
L002 B-3
L004 B-1
L102 G-2
L401 G-3
L402 G-3
L701 B-2
L702 E-4
L703 D-5
L802 C-2
L803 C-1
Q401 G-3
Q701 B-2
Q702 B-2
Q703 A-4
Q704 B-4
Q705 B-4
Q706 E-3
Q707 B-3
Q708 B-3
Q804 E-1
Q1005 B-1
R006 A-3
R007 A-2
R008 B-3
R009 A-1
R010 B-2
R011 A-1
R012 A-2
R013 A-2
R014 B-2
R015 B-2
R016 B-2
R018 A-2
R019 B-2
R026 B-1
R027 B-2
R028 B-1
R029 B-1
R030 A-2
R031 A-3
R032 A-2
R033 B-1
R034 B-1
R038 A-1
R041 B-1
R042 B-1
R111 F-2
R119 G-2
R122 F-3
R124 F-3
R125 F-3
R135 G-2
R136 G-2
R137 G-2
R401 F-4
R403 G-3
R404 G-3
R405 G-3
R430 G-4
R602 D-6
R603 D-6
R604 D-6
R607 D-6
R608 D-6
R609 D-6
R625 D-6
R626 D-6
R627 A-5
R628 A-5
R701 B-2
R702 B-2
R704 C-2
R705 D-4
R706 D-4
R707 C-3
R708 C-3
R709 C-3
R710 B-3
R711 B-3
R712 D-4
R713 B-3
R714 D-4
R715 C-5
R716 B-5
R717 C-4
R718 C-3
R719 A-5
R720 B-5
R721 C-4
R722 C-4
R723 C-4
R724 C-4
R725 C-4
R726 A-5
R727 A-5
R728 A-5
R729 A-5
R730 C-3
R731 B-5
R732 B-3
R733 F-4
R734 E-4
R735 B-3
R736 B-3
R737 A-5
R738 A-5
R739 A-5
R740 B-5
R741 B-5
R742 A-4
R743 B-5
R744 A-4
R745 B-5
R746 D-4
R747 B-4
R748 B-4
R749 C-2
R751 C-2
R752 A-4
R753 A-4
R754 D-4
R755 D-4
R756 F-4
R758 F-4
R759 B-2
R760 F-4
R761 B-3
R762 B-3
R763 B-3
R764 B-3
R765 B-3
R766 B-3
R769 B-3
R770 G-3
R771 G-3
R772 G-3
R773 A-4
R774 B-5
R775 C-5
R776 C-3
R777 C-3
R778 E-3
R779 A-5
R780 A-5
R781 C-2
R784 G-1
R785 G-2
R786 G-2
R824 E-4
R828 D-4
R855 E-2
R856 E-4
R857 E-4
R858 E-4
R863 D-4
R868 C-1
R871 E-4
R876 C-2
R877 C-2
R878 C-2
R879 C-3
R880 C-3
R881 C-3
R882 C-3
R883 C-3
R884 C-3
R885 E-4
R886 E-1
R888 E-4
R889 E-4
R890 E-4
R891 E-4
R892 E-3
R893 E-3
R894 E-2
R895 E-2
R896 E-4
R897 E-2
R898 E-2
R899 E-1
X701 C-3
X702 B-4
X802 D-4
4-18
CAMERA PROCESS, AUDIO PROCESS, MOTOR DRIVE, MODE CONTROL
FC-67
4-17
