MVC-FD91
4-68 4-69 4-70
LCD DRIVE, TIMING GENERATOR
VF-131
MVC-FD91
For printed wiring boards
• This board is six-layer print board. However, the pat-
terns of layers two to five have not been included in
the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
VF-131 BOARD

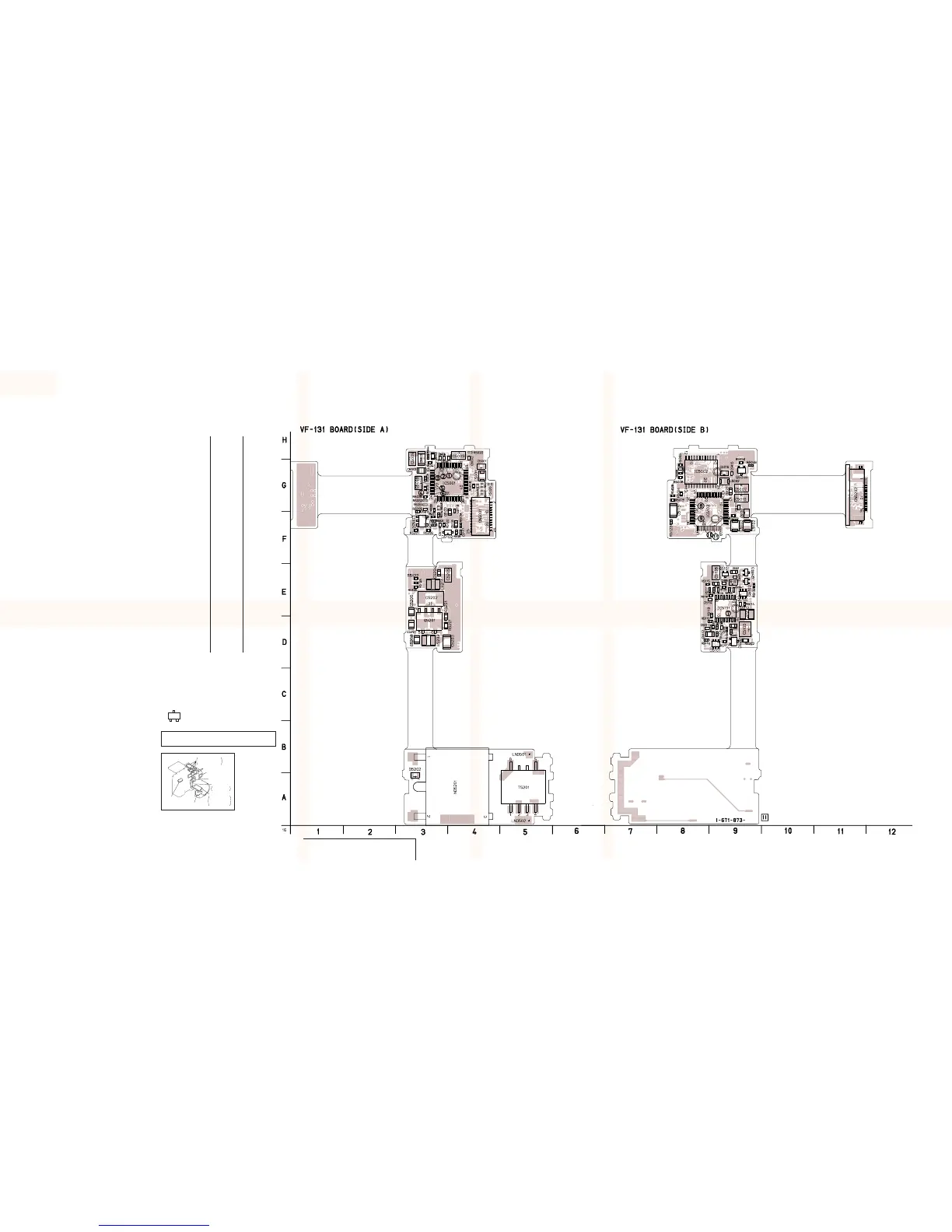

VF-131 (LCD DRIVE, TIMING GENERATOR) PRINTED WIRING BOARD
— Ref. No. VF-131 Board; 10,000 Series —
C5001 G-4
C5002 G-4
C5003 H-4
C5004 G-3
C5005 G-3
C5006 G-3
C5007 G-8
C5008 G-3
C5009 G-3
C5010 G-8
C5011 F-3
C5012 G-3
C5013 G-3
C5015 G-8
C5016 G-8
C5101 E-8
C5102 E-8
C5103 E-8
C5104 E-8
C5105 D-8
C5106 E-8
C5107 E-8
C5108 E-8
C5109 D-8
C5110 E-8
C5111 D-8
C5112 D-8
C5113 E-8
C5114 E-8
C5115 F-7
C5116 F-3
C5117 F-4
C5118 F-4
C5119 F-4
C5120 F-8
C5121 G-8
C5122 F-4
C5123 G-8
C5201 D-3
C5202 E-3
C5203 D-3
C5204 E-3
C5205 E-3
C5206 E-3
C5207 D-3
C5208 D-3
C5209 D-8
CN5001 F-4
CN5202 G-11
D5101 D-8
D5102 F-4
D5201 D-8
D5202 A-3
IC5001 G-4
IC5002 G-8
IC5101 E-8
IC5102 F-8
IC5103 F-3
L5001 G-4
L5002 G-8
L5101 D-8
L5102 F-8
L5103 F-8
L5201 E-3
L5202 D-3
ND5201 A-4
Q5046 G-8
Q5101 E-8
Q5102 E-8
Q5103 E-8
Q5104 E-8
Q5201 D-3
R5005 G-7
R5008 G-7
R5009 G-7
R5017 G-7
R5020 G-4
R5021 G-4
R5022 H-4
R5024 G-7
R5025 G-7
R5026 G-7
R5030 G-3
R5031 G-3
R5033 F-3
R5033 G-3
R5034 F-3
R5040 G-3
R5041 G-3
R5044 G-3
R5046 G-9
R5048 G-4
R5049 G-4
R5050 G-8
R5051 G-3
R5052 G-3
R5102 D-8
R5103 E-8
R5104 E-8
R5105 D-8
R5106 D-8
R5107 D-8
R5108 E-8
R5109 D-8
R5110 D-8
R5111 E-8
R5113 D-8
R5114 E-8
R5115 E-8
R5116 D-8
R5117 D-8
R5118 E-8
R5119 F-3
R5120 F-3
R5121 F-3
R5123 F-7
R5122 E-3
R5124 E-3
R5125 F-4
R5126 E-3
R5128 F-4
R5132 E-9
R5201 D-3
R5202 D-8
R5204 F-3
R5205 F-3
R5206 F-3
R5207 F-3
R5208 F-8
T5201 A-5
CS UNIT (Included VAP UNIT)
(STEADY SHOT DRIVE)
RL-52
(RELEASE SWITCH)
VF-131
LCD DRIVE,
TIMING GENERATOR,
BACK LIGHT DRIVE
FLASH UNIT
MA-348
(MIC AMP, ALC)
CD-207
(CCD IMAGER)
SE-78
YAW,
PITCH SENSOR
VP-49
STEADY SHOT
CONTROL,
ACTIVE PRISM
ACTUATOR DRIVE
