Sony MVC-FD91 User Manual

2-7

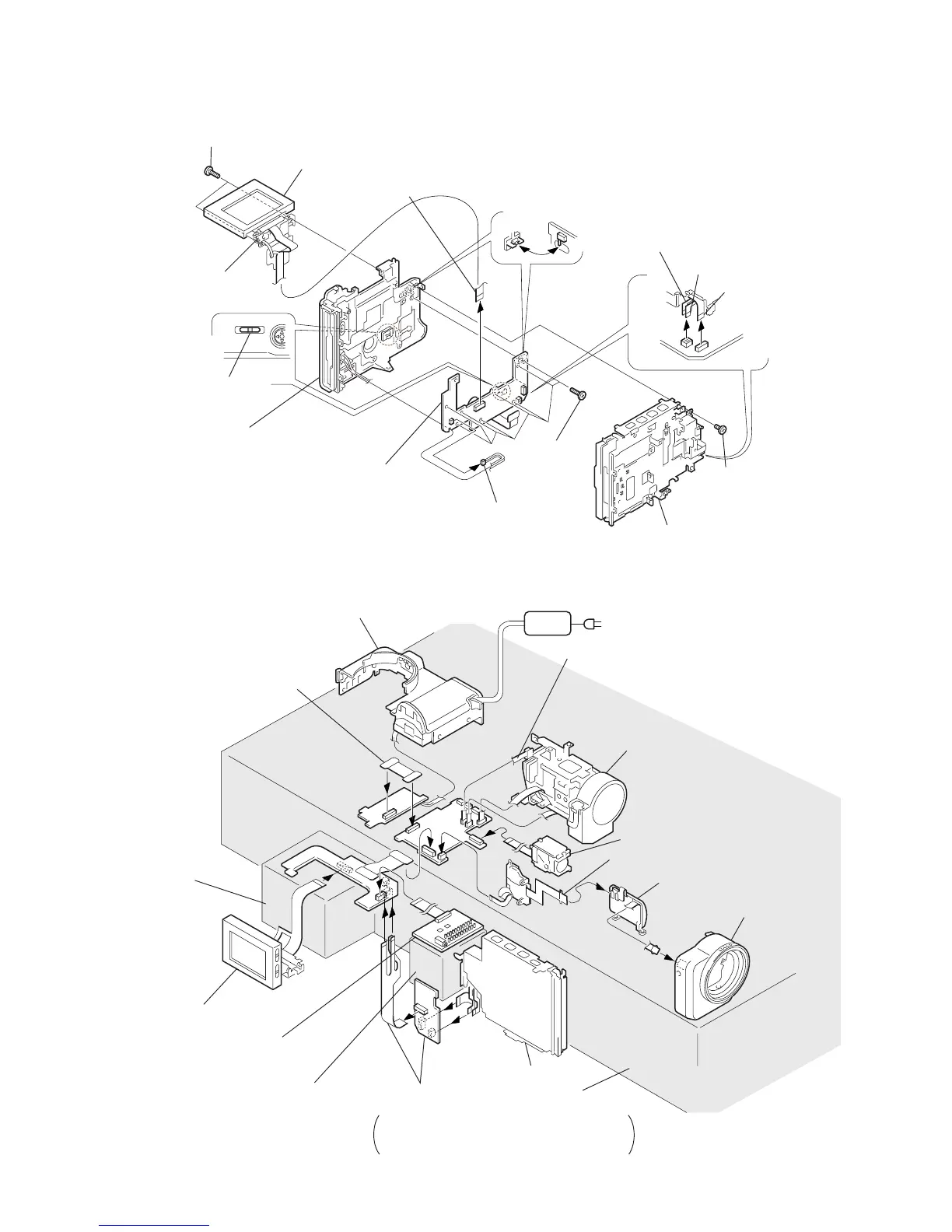

2-9. PK-45 BOARD, FDD BLOCK ASSEMBLY
[OVERALL CHECK SERVICE POSITION]
DD-119
FC-67
PK-45
PK-45
Board
LCD block assembly
CPC-12 jig
(J-6082-436-A)
1 FDD flexible board (18P)
2 FDD flexible board (side 0) (5P)
3 FDD flexible board (side 1) (5P)
4 Screw (M2 × 3)
5 FDD block assembly
6 Cable (2P)
7 FP-69 flexible board (28P)
8 Eight tapping
screws (B2 × 5)
9 PK-45 board
When re-assembling
set this knob the center
S691
(PANEL REV)
!º Two tapping screws (B2 × 5)
!¡ LCD block assembly
!™ Cabinet (rear) assembly
Cabinet (front) assembly
Extension cable
(J-6082-434-A)
Lens block
Extension cable (J-6082-357-A)
EVF block
SW block (side sw)
ZM block (front sw)
Cabinet (VP) assembly
Base
(Use box or the like.)
FDD block assembly
Extension cable
(J-6082-427-A)
Note : When connecting the extension cable,
refer to “1. Connection between the FDD
unit and PK-45 board” of page 6.
Base
(Use box or the like.)
Base
(Use box or the like.)
AC IN
AC
ADAPTOR
