6-4
FC-67
Board
DD-119
a
c
c
a
b
b
PK-45
Board
not
supplied
(Note)
not
supplied
not
supplied
not
supplied
not
supplied
S691
not
supplied
174
168
167
166
169
170
159
161
162
163
164
165
171
172
163
173
175
178
177
(including S691)
179
174
180
176
174
181
151
151
151
153
152
151
151
160
157
156
158
155
154
SP901
151 3-713-786-21 SCREW (M2X3)
152 A-7073-746-A DD-119 (110) BOARD, COMPLETE
153 1-671-864-21 FP-65 FLEXIBLE BOARD
154 A-7094-123-A FC-67 (110) BOARD, COMPLETE (SERVICE)
155 X-3949-135-1 FRAME ASSY, MAIN
156 3-050-457-01 LID, SIDE
157 3-050-458-01 SPRING (UPPER), SIDE
158 1-759-679-11 DRIVE, FLOPPY DISK (3.5 INCH)
159 X-3949-126-1 CABINET (REAR) ASSY
160 3-352-483-01 SCREW (M2), STEP
161 3-052-530-01 CABINET, SIDE
162 3-051-558-05 ACE (M1.7), LOCK
163 3-948-339-61 TAPPING
164 3-053-012-01 SHEET METAL (R), STRAP
165 3-052-997-01 HOLDER, POWER
166 3-052-958-01 SPRING, COMPRESSION
167 3-052-957-01 SLIDER, EJECT
168 3-052-954-01 KNOB, EJECT
169 3-052-956-01 LOCK, EJECT
170 3-969-387-01 FOOT, RUBBER
171 3-053-005-01 LID, LITHIUM
172 3-052-955-01 SHEET METAL, EJECT
173 3-052-537-01 SPRING, EXTENSION
174 3-948-339-01 SCREW, TAPPING
175 3-978-439-01 BUTTON, CONTROL
176 3-052-982-01 COVER, CPC
177 1-671-876-21 FP-69 (PD-PK) FLEXIBLE BOARD
(Including S691)
* 178 3-979-292-01 SHEET (CONTROL)
179 A-7073-749-A PK-45 BOARD, COMPLETE
180 1-958-571-11 HARNESS (SP-151)
181 3-053-011-01 RETAINER, SPEAKER
SP901 1-529-174-11 SPEAKER (2.0 CM)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

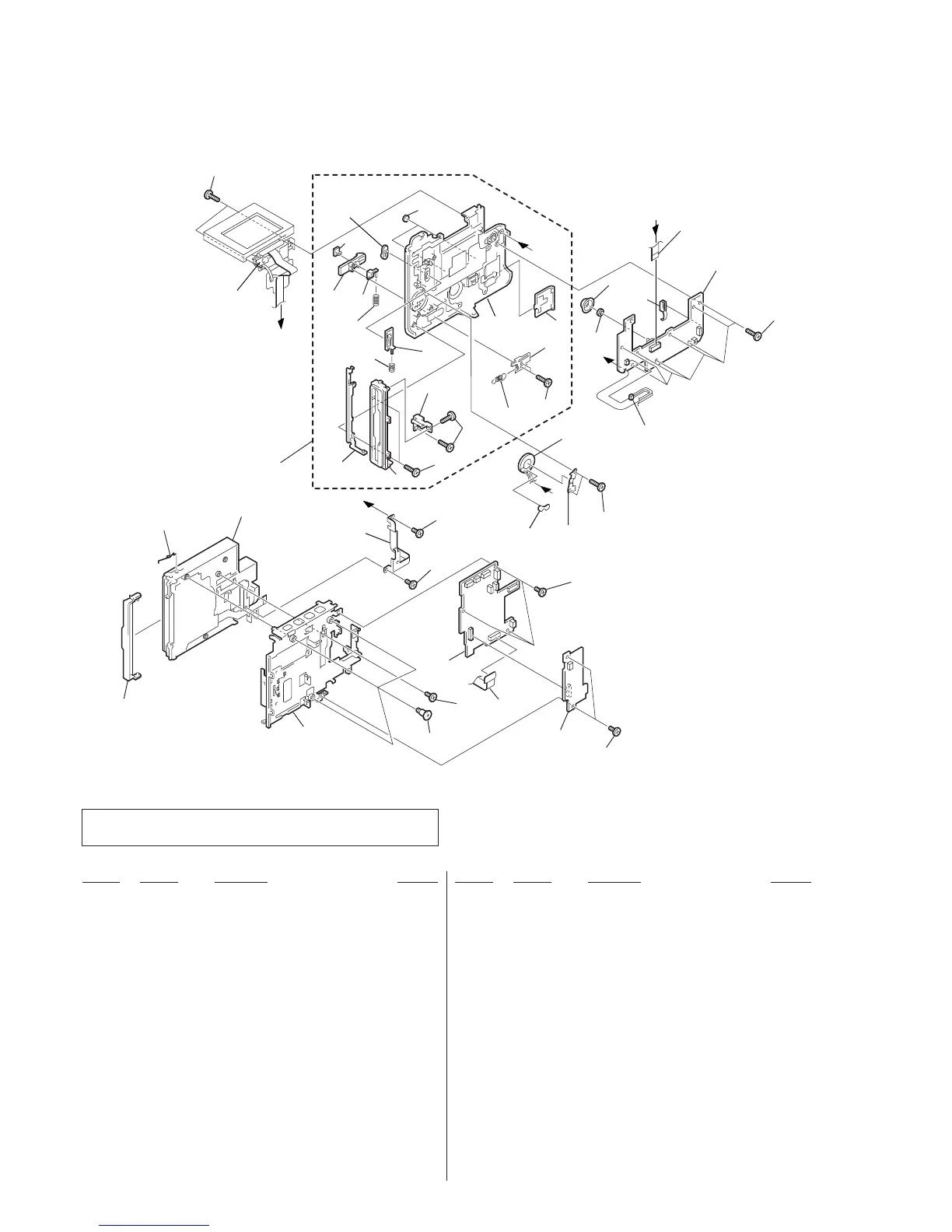

6-1-4. CABINET (REAR) SECTION
(Note) The FD block assembly is a mechanical unit which
has completely been adjusted in the factory.
