MVC-FD91
4-674-65 4-66
MIC AMP, ALC
MA-348
MVC-FD91

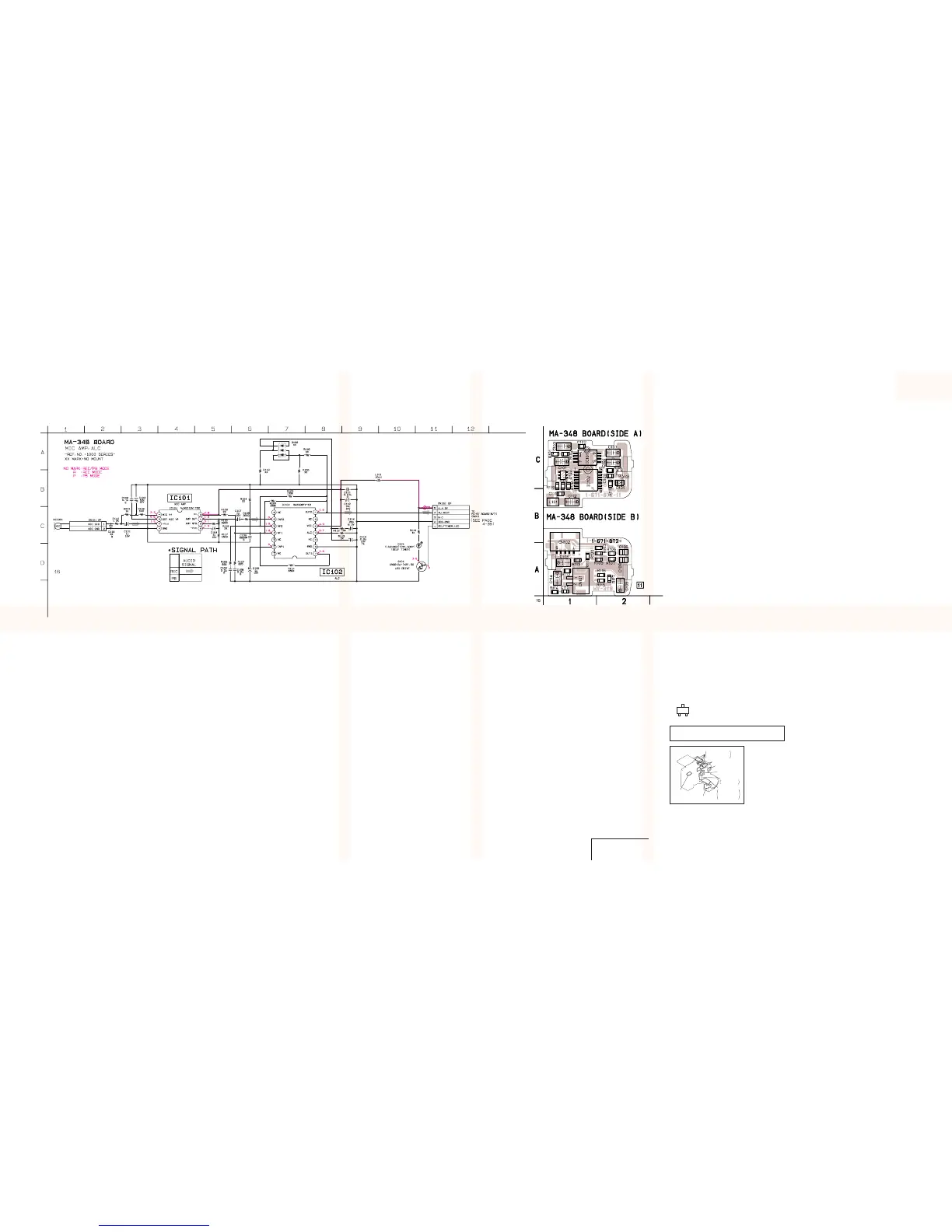

MA-348 (MIC AMP, ALC) PRINTED WIRING BOARD
— Ref. No. MA-348 Board; 1,000 Series —
For printed wiring boards
• This board is six-layer print board. However, the pat-
terns of layers two to five have not been included in
the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
MA-348 BOARD
C101 C-1
C102 C-1
C103 C-1
C104 C-2
C105 A-2
C106 A-2
C107 C-2
C108 A-2
C109 C-2
C111 B-1
C112 B-1
C113 A-1
C114 A-1
C115 A-1
CN101 A-1
CN102 B-1
D101 C-2
D102 C-1
IC101 C-1
IC102 C-1
L101 B-1
Q101 C-2
R101 C-1
R102 C-1
R103 A-2
R105 C-1
R106 A-2
R107 A-2
R108 C-2
R109 A-2
R110 C-2
R111 A-1
R112 A-1
R113 A-1
R114 A-1
R115 A-2
R116 A-2
R117 A-2
R118 C-1
R119 C-1
R120 A-2
CS UNIT (Included VAP UNIT)
(STEADY SHOT DRIVE)
RL-52
(RELEASE SWITCH)
VF-131
LCD DRIVE,
TIMING GENERATOR,
BACK LIGHT DRIVE
FLASH UNIT
MA-348
(MIC AMP, ALC)
CD-207
(CCD IMAGER)
SE-78
YAW,
PITCH SENSOR
VP-49
STEADY SHOT
CONTROL,
ACTIVE PRISM
ACTUATOR DRIVE
To Next Page
