MVC-FD91
3-2.

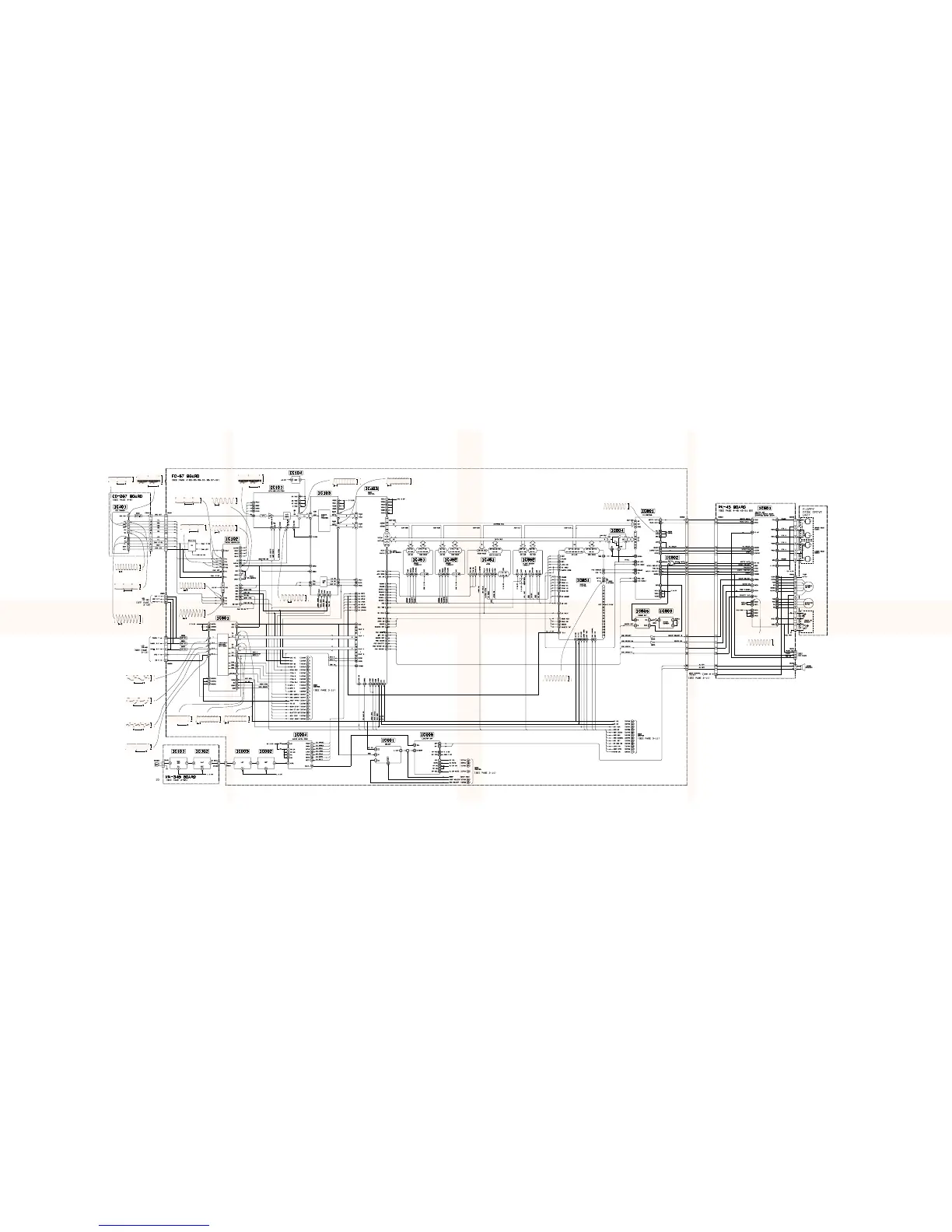

CAMERA/FDD INTERFACE BLOCK DIAGRAM
3-5
3-6
3-7
3-8
IC401
!∞
,
!§
5Vp-p
60nsec
IC401
!¢
3Vp-p
60nsec
IC401
8
1.8Vp-p
78
µ
sec
IC401
2
,
4
7.5Vp-p
78
µ
sec
IC401
1
,
3
8Vp-p
78
µ
sec
IC101
2
–
!¡
CAMERA REC/PB
3.1Vp-p
60nsec
IC103
#§
,
$∞
CAMERA REC/PB
3.8Vp-p
60nsec
IC101
!§
CAMERA REC/PB
60nsec
4.0Vp-p
IC101
@§
CAMERA REC
1.4Vp-p
78
µ
sec
IC102
$º
,
$¡
CAMERA REC
8Vp-p
78
µ
sec
IC102
$™
,
$¢
CAMERA REC
7.5Vp-p
78
µ
sec
IC102
4
CAMERA REC/PB
3.8Vp-p
30nsec
IC102
@∞
CAMERA REC/PB
4.0Vp-p
60nsec
IC102
9
CAMERA REC
4Vp-p
60nsec
IC102
!™
,
!£
CAMERA REC
3Vp-p
60nsec
IC601
5
3.8Vp-p
60nsec
IC601
#¶
3.8Vp-p
60nsec
IC601
$§
3.3Vp-p
20msec
IC601
!ª
0.16Vp-p
78
µ
sec
IC601
@£
0.18Vp-p
78nsec
IC601
$¶
3.3Vp-p
78
µ
sec
IC601
!¢
0.1Vp-p
78
µ
sec
IC851
*º
7.41MHz
2.0Vp-p
IC801
*£
5.0Vp-p
16.26MHz
IC601
$™
CAMERA REC/PB
3.2Vp-p
4.0MHz
27
29
Table of Contents
Default Chapter
3
Table of Contents
3
Service Note
5
General
8
Disassembly
19
EVF Block (1), RL-52 Board
19
EVF Block (2)
20
Board
20
Cabinet (ST) Assembly, FLASH Unit, MA-348 Board
21
LCD Unit, PD-104 Board
21
Lens Block
22
Board, VP-49 Board, SE-78 Board
23
Board, DD-119 Board
24
Board, FDD Block Assembly
25
Circuit Boards Location
26
Flexible Boards Location
26
Block Diagrams
27
Overall Block Diagram
27
Camera/Fdd Interface Block Diagram
28
Mode Control Block Diagram
29
LCD Block Diagram
30
Color EVF Block Diagram
31
Power Block Diagram
32
4 Printed Wiring Boards and
33
Frame Schematic Diagram
33
Printed Wiring Boards and Schematic Diagrams
33
Schematic Diagram
33
YAW, Pitch Sensor)
37
Steady Shot Control
37
Steady Shot Control, Active Prism Actuator Drive) Printed Wiring Board
37
Printed Wiring Board
38
Camera Y/C Process
40
Dram Control
41
Lens Motor Drive
42
D/A Converter
43
Rec/Pb Amp, Motor Drive
47
Lcd Drive
48
Timing Generator
49
Mode Switch
50
MIC Amp, Alc
53
Lcd Drive, Timing Generator
54
LCD Drive, Timing Generator)(1/2)
54
DC/DC Converter
57
Printed Wiring Board
57
Adjustments
59
Camera Section Adjustment
59
Preparations before Adjustment (Camera Section)
59
List of Service Tools
59
Preparations
60
Discharging of the Flashlight Power Supply
60
Precaution
62
Setting the Switch
62
Order of Adjustments
62
Subjects
62
Initialization of F, E
63
Initializing the F, E
63
Modification of F, E
63
E Page Table
65
Camera System Adjustments
68
Picture Frame Setting
68
HALL Adjustment
69
Flange Back Adjustment
69
Flange Back Check
70
Light Level Adjustment
70
Auto White Balance Standard Data Input
71
Auto White Balance Adjustment
71
Color Reproduction Adjustment
72
White Balance Check
73
Strobe Light Level Adjustment
73
Strobe White Balance Adjustment
74
Strobe Light Level and White Balance Check
74
Steady Shot Adjustment
75
Steady Shot Adjustment (1)
75
Steady Shot Adjustment (2)
76
CCD Defect Compensation
77
CCD Defect Compensation Check
77
Color Electronic Viewfinder System Adjustment
78
EVF Initial Data Input
79
VCO Adjustment (VF-131 Board)
79
Bright Adjustment (VF-131 Board)
80
Contrast Adjustment (VF-131 Board)
80
Backlight Consumption Current Adjustment (VF-131 Board)
81
White Balance Adjustment (VF-131 Board)
81
LCD System Adjustment
82
LCD Initial Data Input
82
VCO Adjustment (PK-45 Board)
83
D Range Adjustment (PK-45 Board)
83
Bright Adjustment (PK-45 Board)
84
Contrast Adjustment (PK-45 Board)
84
Color Adjustment (PK-45 Board)
85
V-COM Level Adjustment (PK-45 Board)
85
V-COM Adjustment (PK-45 Board)
86
White Balance Adjustment (PK-45 Board)
86
System Control System Adjustment
87
Battery End Adjustment (FC-67 Board)
87
Alignment Check (FDD Unit)
88
Service Mode
89
Adjustment Remote Commander
89
Using the Adjustment Remote Commander
89
Precautions Upon Using the Adjustment Remote Commander
89
Data Process
90
Service Mode
91
Setting the Test Mode
91
Bit Value Discrimination
91
Switch Check (1)
91
Switch Check (2)
92
Self Diagnosis Log Check
92
Repair Parts List
93
Exploded Views
93
EVF Section
94
Cabinet (Front) Section
95
Cabinet (Rear) Section
96
LCD Panel Section
97
Lens Block Section
98
Electrical Parts List
99
4
