Sony MVC-FD91 User Manual

MVC-FD91
4-79 4-80
DC/DC CONVERTER
DD-119
DD-119 BOARD
C302 E-1
C303 E-1
C304 D-1
C305 D-1
C306 D-1
C307 D-1
C308 E-1
C309 D-1
C310 E-1
C311 D-2
C312 E-1
C313 D-1
C314 E-1
C315 D-1
C316 E-2
C318 E-2
C319 D-2
C320 B-2
C321 B-2
C322 E-2
C323 D-2
C324 B-2
C325 E-2
C326 E-2
C327 E-2
C328 D-2
C329 E-2
C330 E-2
C331 E-3
C332 E-3
C333 D-3
C334 A-5
C335 D-5
C336 A-4
C337 B-4
C338 D-4
C339 D-3
C340 D-4
C342 B-4
C343 E-5
C344 B-5
C345 B-4
C346 B-5
C347 B-5
C348 A-5
C349 B-5
C350 D-5
C352 D-5
C353 E-5
C354 B-6
C357 A-4
C358 A-4
C359 A-4
C360 B-6
C361 A-5
C363 B-2
C364 C-5
C365 B-6
C390 B-6
C393 B-6
CN301 A-1
CN302 E-6
CN303 E-4
D304 B-4
D305 B-4
D306 B-4
D307 B-5
D308 E-2
F301 B-2
F302 B-2
F303 B-2
F304 C-2
IC301 E-1
L301 B-3
L302 B-3
L303 A-3
L304 B-3
L305 B-3
L306 A-5
L307 D-4
L308 A-4
L309 D-3
L310 E-4
L311 D-4
L312 E-4
L313 A-5
L314 A-4
L315 A-4
L316 A-3
L317 A-4
LF301 B-2
Q306 E-3
Q307 E-4
Q308 E-3
Q309 D-3
Q310 B-4
Q311 B-5
Q312 A-5
Q313 B-5
Q314 B-5
Q315 B-5
Q316 B-5
Q317 B-5
Q318 C-6
Q319 C-5
Q320 B-5
Q321 B-5
Q322 C-6
Q323 C-5
Q324 B-5
Q325 B-5
Q326 B-5
Q327 B-5
Q328 C-5
Q329 C-5
Q330 C-5
Q331 B-5
Q332 B-5
Q333 B-6
Q334 B-6
Q335 B-6
Q336 A-5
Q337 B-6
R308 B-5
R309 E-1
R310 D-1
R312 D-1
R314 E-1
R315 E-1
R316 E-1
R317 E-1
R318 E-1
R319 E-1
R320 E-1
R321 D-1
R324 D-1
R325 D-1
R326 D-1
R327 E-1
R328 E-1
R330 E-2
R331 E-1
R332 E-1
R333 E-1
R334 E-2
R335 E-2
R336 E-1
R337 D-1
R340 D-1
R341 D-1
R342 D-1
R343 E-2
R344 A-5
R346 E-2
R347 E-2
R348 E-2
R349 D-2
R352 A-4
R353 A-4
R356 B-4
R357 B-4
R358 B-4
R360 B-5
R361 B-5
R362 B-5
R363 B-5
R364 B-5
R365 B-5
R366 B-5
R367 B-5
R368 C-6
R369 C-5
R370 A-5
R371 B-5
R372 B-6
R373 C-5
R374 B-5
R375 B-5
R376 C-5
R377 C-5
R378 C-5
R379 C-5
R380 C-5
R381 C-5
R387 B-6
R388 B-6
R389 B-6
R391 B-6
R392 B-6
R394 A-6
T301 B-4

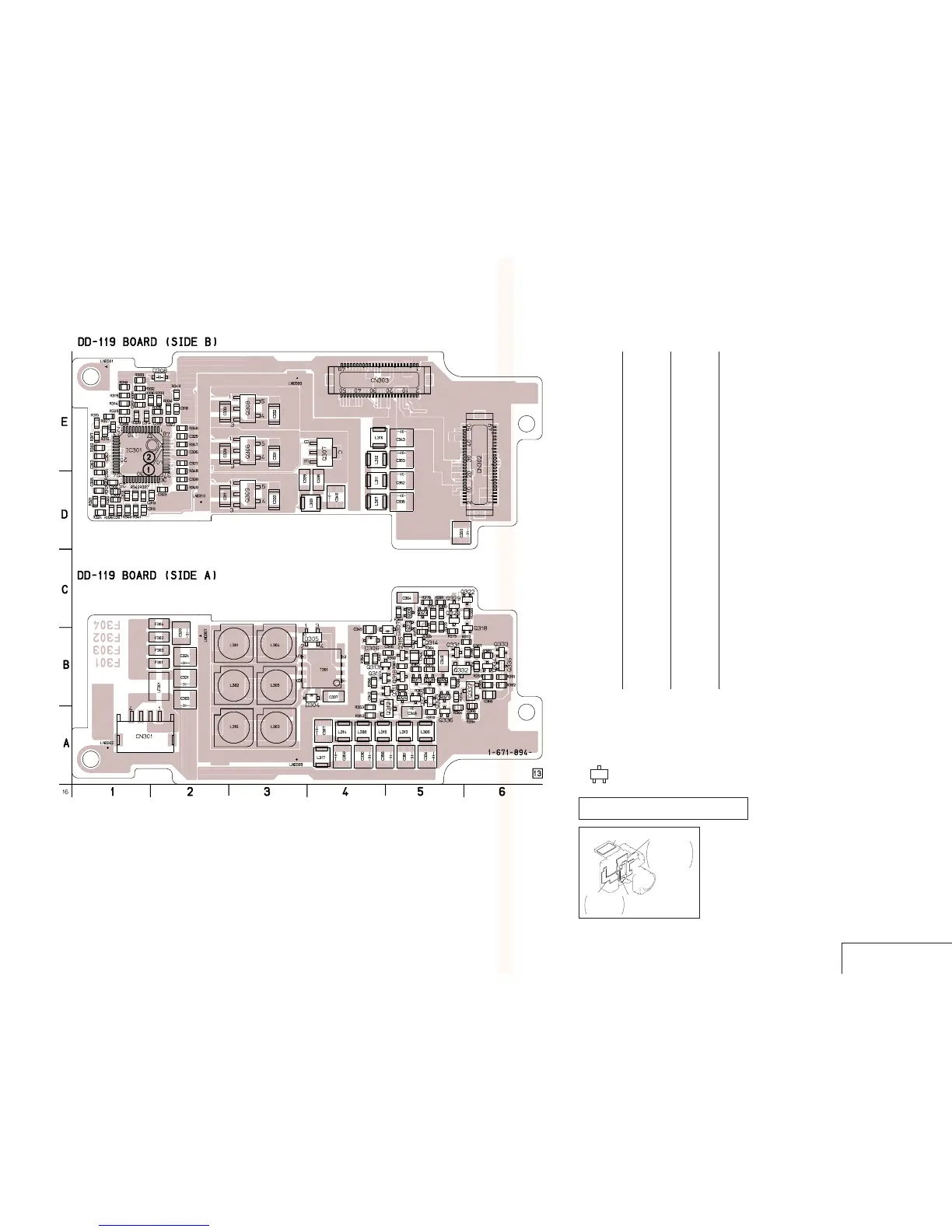

DD-119 (DC/DC CONVERTER) PRINTED WIRING BOARD
— Ref. No. DD-119 Board; 2,000 Series —
For printed wiring boards
• This board is six-layer print board. However, the pat-
terns of layers two to five have not been included in
the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
DD-119 (110)
(DC/DC CONVERTER)
PD-104
(BACK LIGHT DRIVE)
PK-45
REC PB AMP,
MOTOR DRIVE,
LCD DRIVE,
TIMING GENERATOR,
MODE SWITCH
FC-67
CAMERA Y/C PROCESS,
DRAM CONTROL, LENS
MOTOR DRIVE, D/A
CONVERTER, AUDIO
A/D.D/A CONVERTER,
FD/SYSTEM CONTROL,
HI CONTROL
