MVC-FD91
4-9 4-10 4-11
YAW, PITCH SENSOR
SE-78

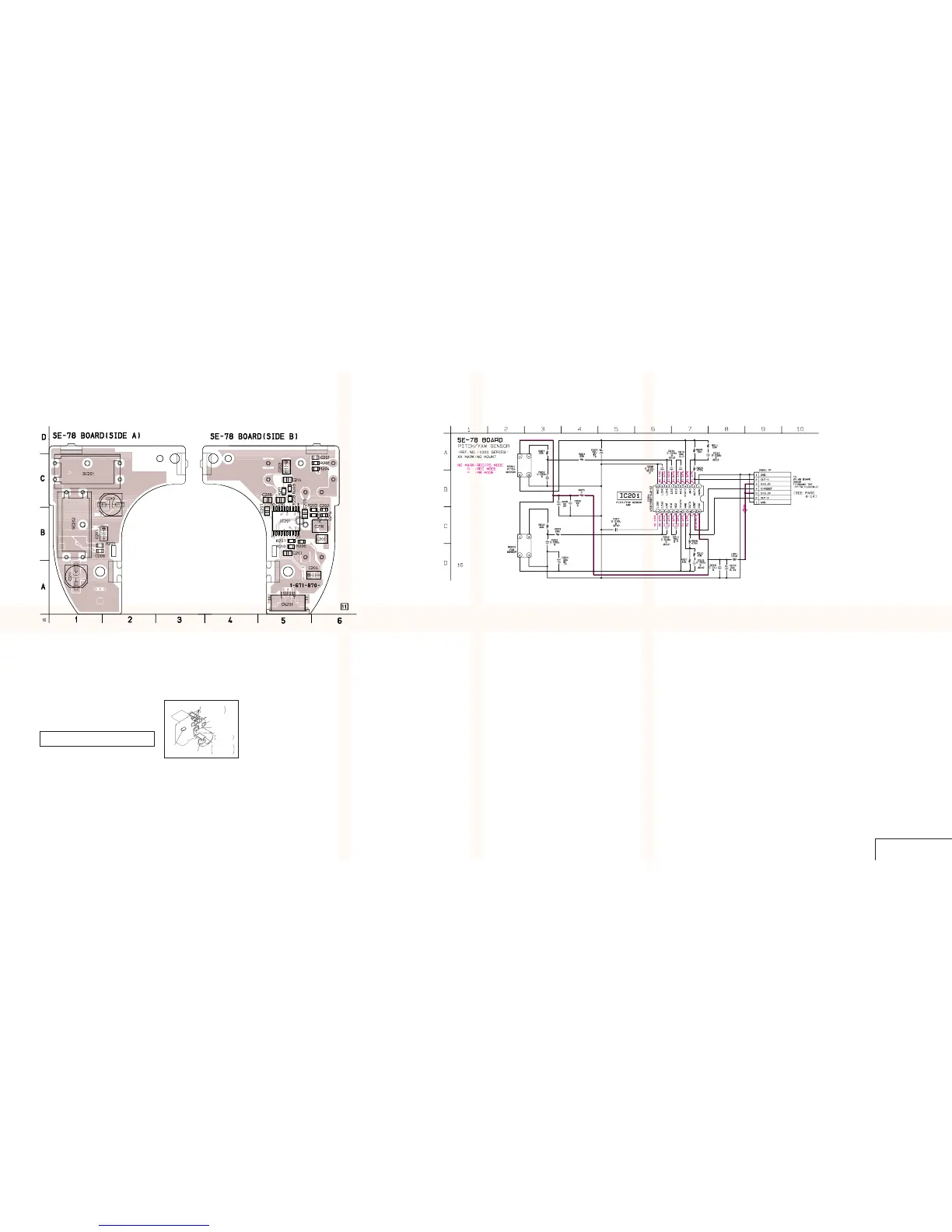

SE-78 (YAW, PITCH SENSOR) PRINTED WIRING BOARD
— Ref. No. SE-78 Board; 1,000 Series —
For printed wiring boards
• This board is six-layer print board. However, the pat-
terns of layers two to five have not been included in
the diagram.
There are few cases that the part printed on this
diagram isn’t mounted in this model.
SE-78 BOARD
CS UNIT (Included VAP UNIT)
(STEADY SHOT DRIVE)
RL-52
(RELEASE SWITCH)
VF-131
LCD DRIVE,
TIMING GENERATOR,
BACK LIGHT DRIVE
FLASH UNIT
MA-348
(MIC AMP, ALC)
CD-207
(CCD IMAGER)
SE-78
YAW,
PITCH SENSOR
VP-49
STEADY SHOT
CONTROL,
ACTIVE PRISM
ACTUATOR DRIVE
C201 C-5
C202 B-6
C203 C-5
C204 A-5
C205 B-2
C206 B-1
C207 B-5
C208 C-5
C209 B-5
C210 C-5
C211 A-1
C212 C-2
C213 B-5
C214 C-5
C215 B-6
C216 B-6
CN201 A-5
IC201 B-5
L201 B-6
R201 C-5
R202 B-5
R203 B-5
R204 C-5
R205 B-1
R206 B-5
R207 B-5
R208 C-5
R209 C-5
R210 B-5
R211 C-5
SE201 C-1
SE202 B-1
To Next Page
