MVC-FD91

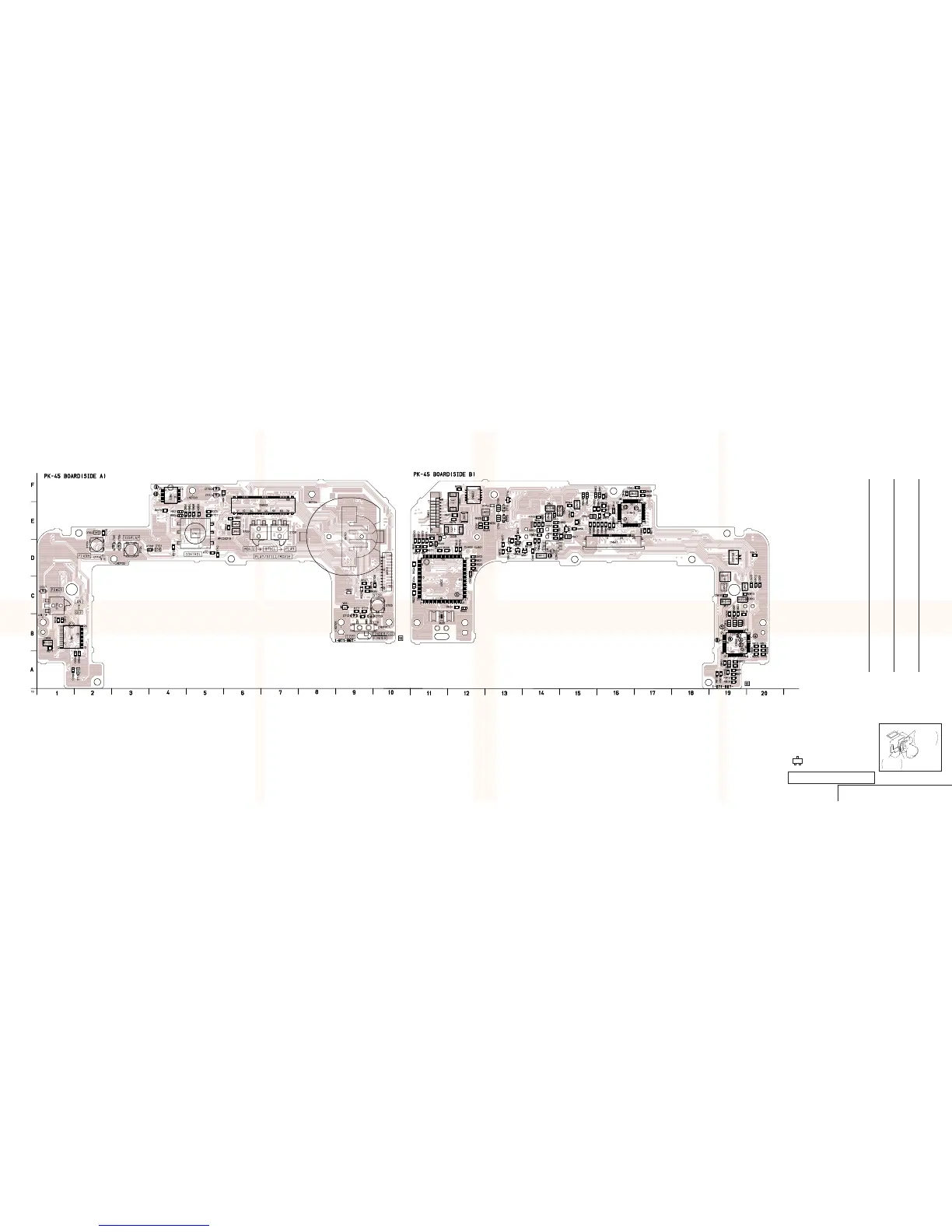

PK-45 (REC/PB AMP, MOTOR DRIVE, LCD DRIVE, TIMING GENERATOR, MODE SWITCH) PRINTED WIRING BOARD
— Ref. No. PK-45 Board; 2,000 Series —
PK-45 BOARD
BH701 D-9
C601 E-12
C602 D-12
C603 D-12
C604 C-11
C605 E-12
C606 E-12
C704 E-13
C705 E-13
C801 C-20
C802 C-20
C803 C-20
C804 A-2
C805 A-2
C806 A-19
C807 C-19
C808 C-19
C810 B-1
C811 C-19
C812 C-19
C813 C-19
C814 B-19
C815 B-19
C816 B-19
C819 B-1
C841 E-14
C842 E-14
C843 E-15
C844 E-16
C845 E-14
C846 F-17
C847 E-15
C848 F-16
C849 F-17
C850 E-14
C851 F-16
C852 E-14
C854 E-4
C857 D-14
CN601 E-11
CN602 F-12
CN603 E-6
CN701 D-10
CN702 D-19
CN941 D-16
D601 C-9
D701 D-4
D702 E-2
D703 B-9
D704 F-5
D705 D-3
D706 D-3
D707 C-1
D709 E-13
D710 E-13
D711 F-5
D712 B-9
D713 D-2
D714 F-13
D715 A-2
D841 E-16
D842 E-15
IC601 C-11
IC801 B-1
IC802 B-19
IC841 F-4
IC842 E-16
IC843 D-14
L601 E-12
L602 E-12
L801 C-19
L802 C-19
L841 E-6
L842 E-6
L843 E-15
L844 E-14
L845 F-16
Q841 D-14
Q842 D-13
Q843 D-13
Q844 E-13
R601 E-12
R602 D-11
R603 D-11
R604 E-12
R605 E-12
R606 D-11
R607 D-11
R608 D-11
R609 D-11
R610 D-11
R612 D-12
R613 D-12
R614 D-11
R615 D-11
R616 D-11
R617 D-11
R618 D-11
R619 D-11
R620 C-9
R621 D-12
R622 D-12
R623 C-11
R624 D-11
R625 C-9
R626 C-9
R627 C-9
R628 C-9
R629 E-12
R630 E-12
R631 C-12
R632 D-12
R633 D-11
R634 C-12
R635 F-12
R701 D-5
R702 D-4
R703 E-14
R704 B-9
R705 E-5
R707 E-5
R708 C-10
R708 E-2
R709 A-1
R710 D-5
R711 C-9
R712 D-4
R713 C-9
R714 E-13
R801 A-19
R802 A-19
R803 A-19
R804 A-20
R805 B-20
R806 A-19
R807 A-19
R808 A-20
R809 A-20
R810 A-19
R811 A-19
R812 A-19
R813 B-20
R814 A-20
R815 A-19
R816 A-19
R817 B-1
R818 B-1
R819 B-19
R820 B-19
R821 B-19
R822 B-19
R841 F-5
R842 D-20
R843 E-15
R844 E-15
R845 F-15
R846 F-15
R847 E-15
R848 E-16
R849 E-16
R850 E-15
R851 E-16
R852 E-15
R853 E-14
R854 E-6
R855 E-6
R856 E-15
R857 E-14
R858 F-17
R859 F-16
R861 E-14
R862 E-14
R863 E-14
R864 E-5
R865 E-14
R866 E-5
R866 E-14
R867 F-15
R869 E-14
R870 E-14
R871 E-4
R872 D-14
R873 D-14
R874 E-17
R875 D-13
R876 D-13
R877 D-13
R878 D-13
R879 E-4
R880 E-17
R881 D-14
R882 D-14
R883 E-5
R884 E-4
R885 E-15
R886 E-15
R887 E-15
R888 E-16
R889 E-16
R890 E-16
R891 E-16
S701 E-5
S702 C-1
S703 D-2
S704 D-3
S705 C-10
S708 E-7
S709 E-6
S710 B-9
X601 B-11
For printed wiring boards
• This board is six-layer print board. However, the pat-
terns of layers two to five have not been included in
the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
4-57 4-58 4-59 4-60
REC/PB AMP, LCD DRIVE, TIMING GENERATOR
PK-45
C
BE
DD-119 (110)
(DC/DC CONVERTER)
PD-104
(BACK LIGHT DRIVE)
PK-45
REC PB AMP,
MOTOR DRIVE,
LCD DRIVE,
TIMING GENERATOR,
MODE SWITCH
FC-67
CAMERA Y/C PROCESS,
DRAM CONTROL, LENS
MOTOR DRIVE, D/A
CONVERTER, AUDIO
A/D.D/A CONVERTER,
FD/SYSTEM CONTROL,
HI CONTROL
To Next Page
