Sony NXCAM HXR-NX80 User Manual

17
Identifying Parts and Controls

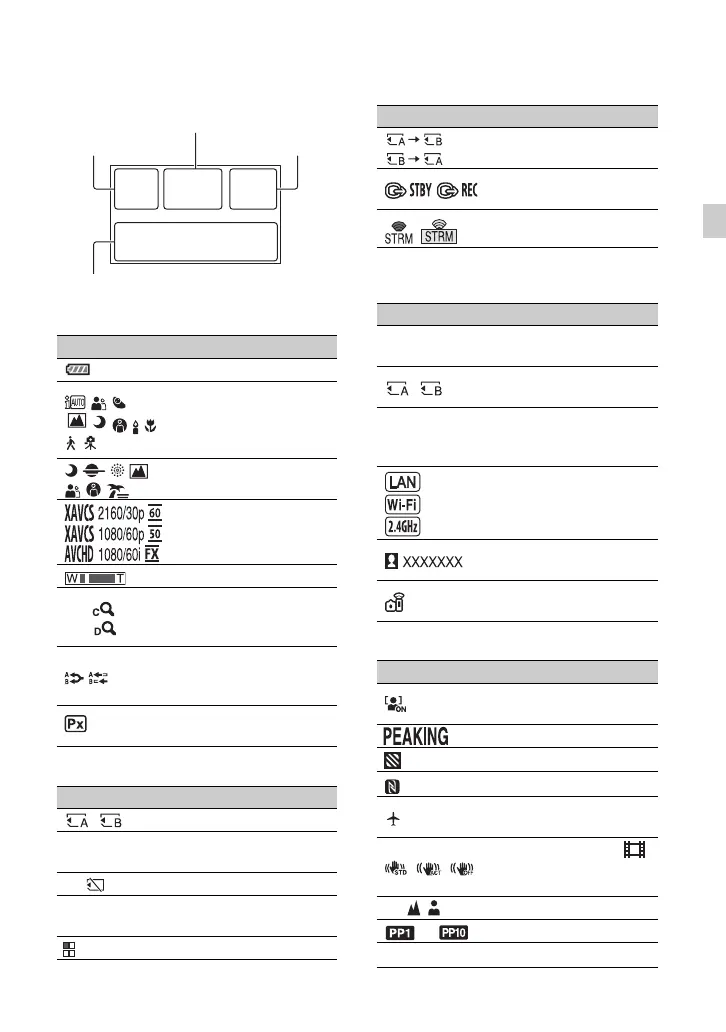

Screen Indicators
Upper left
Center
Upper right
Bottom
Indicator Meaning
100% Remaining battery
.
INTELLIGENT AUTO
(face/scene detection/
camera-shake detection)
(p. 53)
SCENE SELECTION
(p. 53)
Recording format (p. 41)
Optical zoom (p. 104)
Z99 ×1.2
Z99 ×2.3
Clear image zoom
(p. 104)
Digital zoom (p. 104)
Simultaneous recording
(p. 32)
Relay recording (p. 31)
Proxy recording [ON]
(p. 42)
Indicator Meaning
Recording media (p. 27)
REC STBY
Recording standby
(p. 30)
E Warning (p. 144)
N
Playback indicator
(p. 65)
Processing
Upper left Upper right
Bottom
Center
Relay recording (p. 31)
HDMI REC CONTROL
(p. 115)
Streaming (p. 83, 90)
Indicator Meaning
0min
Estimated remaining
recording time
Recording/playback
media
00:00:00:00
Timecode
(hour:minute:second:
frame) (p. 58)
LAN connection (p. 84,
90, 93)
USTREAM audience
(p. 90)
Wi-Fi connection status
indicator (p. 92)
Indicator Meaning
Face detection [ON]
(p. 39)
Peaking (p. 118)
Zebra (p. 118)
NFC active (p. 75)
Airplane mode [ON]
(p. 124)
Image stabilization (
STEADYSHOT)
(p. 104)
9 Manual focus (p. 35)
to Picture profile (p. 54)
F5.6 Iris (p. 43)
Indicator Meaning
Continued ,

Sony NXCAM HXR-NX80 Specifications

General

Lens	ZEISS Vario-Sonnar T*
Optical Zoom	12x
ND Filter	Clear, 1/4, 1/16, 1/64
Image Stabilization	Optical SteadyShot with Active Mode
Maximum Resolution	3840 x 2160 (4K)
Microphone	Built-in stereo microphone
Memory Card Slots	Dual SD card slots
Effective Pixels	14.2MP
Digital Zoom	48x
Focal Length	9.3 - 111.6 mm
Aperture	f/2.8 - f/4.5
Minimum Focusing Distance	1 cm (Wide)
Recording Format	XAVC S, AVCHD
Frame Rate	Up to 120fps (HD)
Audio Recording	Linear PCM 2ch, Dolby Digital 2ch
LCD Screen	3.5-inch (1.56 million dots) touchscreen LCD
Viewfinder	0.39-inch type OLED, approx. 2.36 million dots
Battery	NP-FV70A
Dimensions	89.5 x
Connectivity	HDMI, USB, Wi-Fi, NFC
