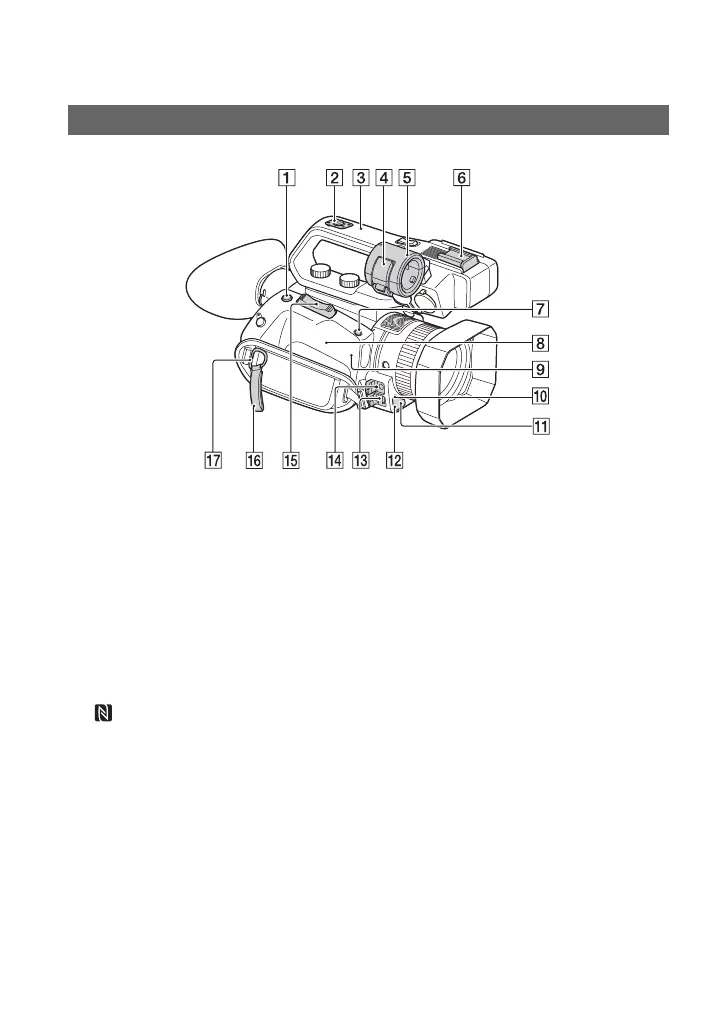

Identifying Parts and Controls
Identifying Parts and Controls
The numbers in ( ) are reference pages.
A ASSIGN4/FOCUS MAGNIFIER
button (p. 38)
B Accessory shoe mount (p. 23)
C XLR handle unit
D Microphone fixing clamper
E Microphone holder
F Accessory shoe
G ASSIGN5/IRIS PUSH AUTO button
(p. 43)
H (N mark)
• Touch an NFC-enabled smartphone to
the mark to establish a connection
with the camcorder.
• Near Field Communication (NFC) is
an international standard for short-
range wireless communication
technology.
I WLAN antenna (built-in)
Covering this part with your hand or
other object may block Wi-Fi
communication.
J Remote control sensor (p. 126)
K Recording lamp (p. 126)
Flashes when remaining capacity of the
memory card or battery becomes low.
L NightShot light (p. 54)
M Multi/Micro USB jack (p. 69)
VIDEO OUT jack (p. 69, 113)
N MIC jack (PLUG IN POWER)
O Power zoom lever
P Cable clamper
Q Hook for shoulder strap
R Multi Interface Shoe (p. 51)
Body

Sony NXCAM HXR-NX80 Specifications

General

Lens	ZEISS Vario-Sonnar T*
Optical Zoom	12x
ND Filter	Clear, 1/4, 1/16, 1/64
Image Stabilization	Optical SteadyShot with Active Mode
Maximum Resolution	3840 x 2160 (4K)
Microphone	Built-in stereo microphone
Memory Card Slots	Dual SD card slots
Effective Pixels	14.2MP
Digital Zoom	48x
Focal Length	9.3 - 111.6 mm
Aperture	f/2.8 - f/4.5
Minimum Focusing Distance	1 cm (Wide)
Recording Format	XAVC S, AVCHD
Frame Rate	Up to 120fps (HD)
Audio Recording	Linear PCM 2ch, Dolby Digital 2ch
LCD Screen	3.5-inch (1.56 million dots) touchscreen LCD
Viewfinder	0.39-inch type OLED, approx. 2.36 million dots
Battery	NP-FV70A
Dimensions	89.5 x
Connectivity	HDMI, USB, Wi-Fi, NFC
