Sony NXCAM HXR-NX80 User Manual

58

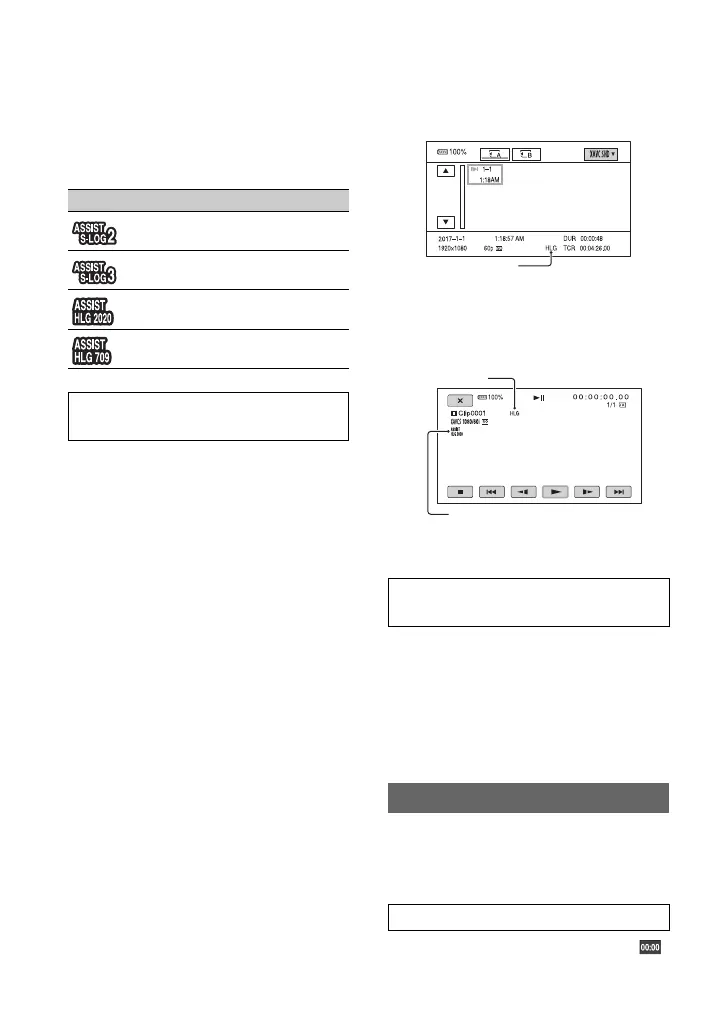

Icon display
When the gamma display assist function is
ON, the following icons are displayed on
the shooting screen and playback screen.
You can play back video recorded in HDR
on the camcorder.
When playing files recorded in XAVC S
4K or XAVC S HD format, an “HLG” icon
is displayed on the thumbnail screen and
playback screen (see following diagrams).
b Notes
• An “HLG” icon is not displayed when playing
AVCHD format files recorded in HDR.
• To view HDR video on a TV, connect a Sony
HDR (HLG) compatible TV to the camcorder
via USB.
When a TV (or HDR (HLG) compatible
monitor) is connected using HDMI or SDI, the
image quality settings of the TV must be
adjusted manually for appropriate display.
Set the image quality settings of the TV to a
gamma setting that supports HLG and a color
mode setting that supports BT.2020 or 709.
Thumbnail screen
* Only files recorded in XAVC S format.
Playback screen
* Only files recorded in XAVC S format.
The following limitations apply on files
recorded in formats other than XAVC S 4K
or XAVC S HD.
• The fact that the recording used HLG is
not registered in metadata.
• The “HLG” icon is not displayed on the
thumbnail screen and playback screen.
The camcorder records movies
accompanied by time data, such as
timecode and user bits.
1 Press the MENU button, and select
(TC/UB SET) t [TC PRESET].
Icon Meaning
[S-LOG2t709(800%)] in use
[S-LOG3
t709(800%)] in use
[HLG(BT.2020)] in use
[HLG(709)] in use
Playing video recorded in HDR on
the camcorder
Limitations on HDR files recorded in
non-XAVC S formats
Setting time data
Setting the timecode
“HLG” icon*
HLG 2020
“HLG” icon*
Gamma display assist icon
Useful functions (Continued)

Sony NXCAM HXR-NX80 Specifications

General

Lens	ZEISS Vario-Sonnar T*
Optical Zoom	12x
ND Filter	Clear, 1/4, 1/16, 1/64
Image Stabilization	Optical SteadyShot with Active Mode
Maximum Resolution	3840 x 2160 (4K)
Microphone	Built-in stereo microphone
Memory Card Slots	Dual SD card slots
Effective Pixels	14.2MP
Digital Zoom	48x
Focal Length	9.3 - 111.6 mm
Aperture	f/2.8 - f/4.5
Minimum Focusing Distance	1 cm (Wide)
Recording Format	XAVC S, AVCHD
Frame Rate	Up to 120fps (HD)
Audio Recording	Linear PCM 2ch, Dolby Digital 2ch
LCD Screen	3.5-inch (1.56 million dots) touchscreen LCD
Viewfinder	0.39-inch type OLED, approx. 2.36 million dots
Battery	NP-FV70A
Dimensions	89.5 x
Connectivity	HDMI, USB, Wi-Fi, NFC
