Sony SA-CT800 - Top Cabinet Assembly

HT-CT800
10
Note: Follow the disassembly procedure in the numerical order given.

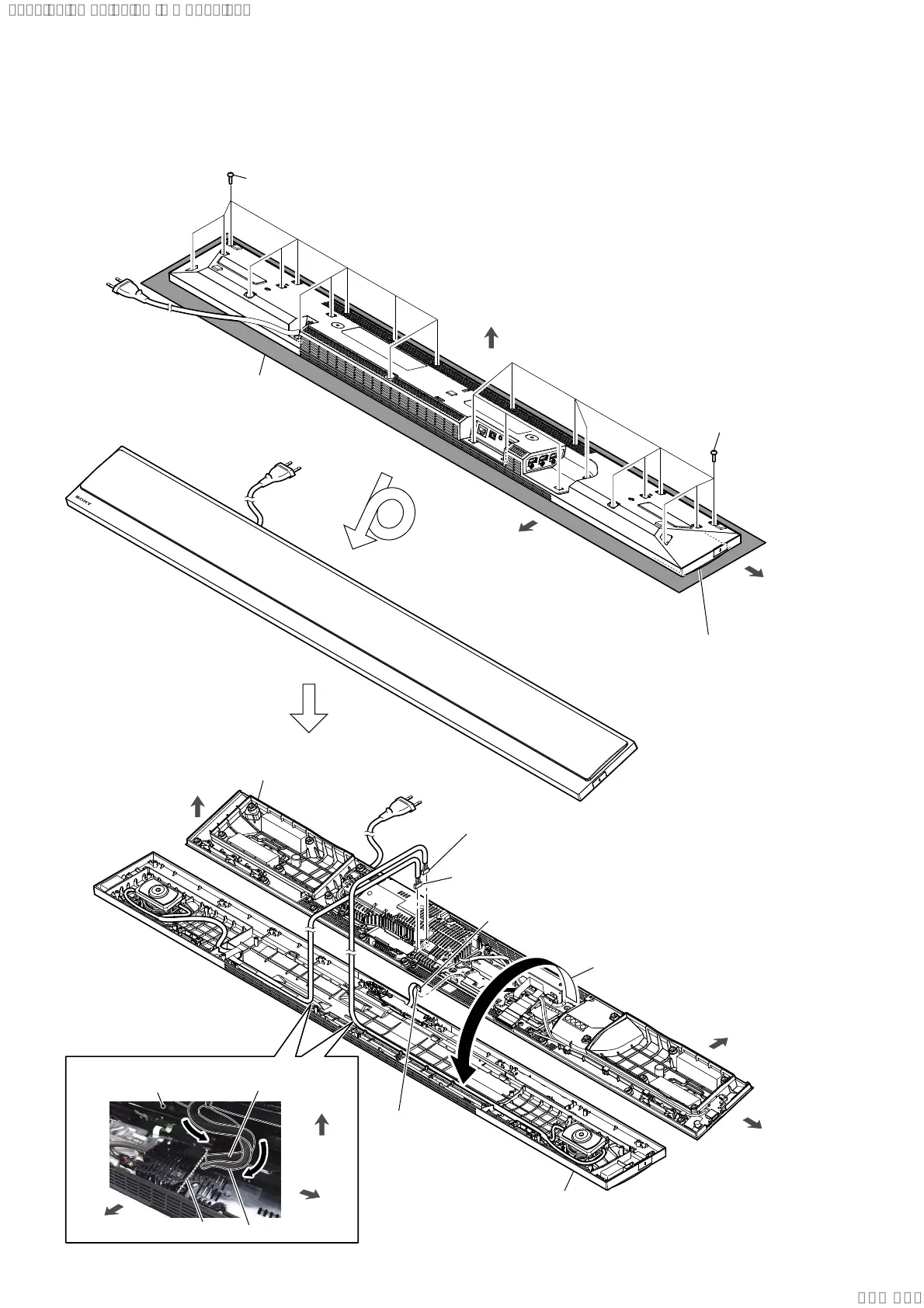

2-2. TOP CABINET BLOCK
Note 1:
Lay a soft piece of cloth under the unit
to avoid damaging the top cabinet assy.
1 twelve screws
(BVTP3 u 8)
bottom cabinet block
rear side
bottom side
right side
1 twelve screws
(BVTP3 u 8)
3 FFC 18P
(CN5003)
terminal side
2 Open the
top cabinet block
in the direction of the arrow.
right side
rear side
6
top cabinet block
top side
Note 2:
Take care not to crush
the front grille.
5 R-ch speaker cable
connector (CN6003)
4 L-ch speaker cable
connector (CN6002)
guide line
top cabinet block
top side
L-ch speaker cable
R-ch speaker cable
rear side
6SHDNHUFDEOHVHWWLQJ
left side
SYSSET
