Sony SA-CT800 - Speaker Units

HT-CT800
14

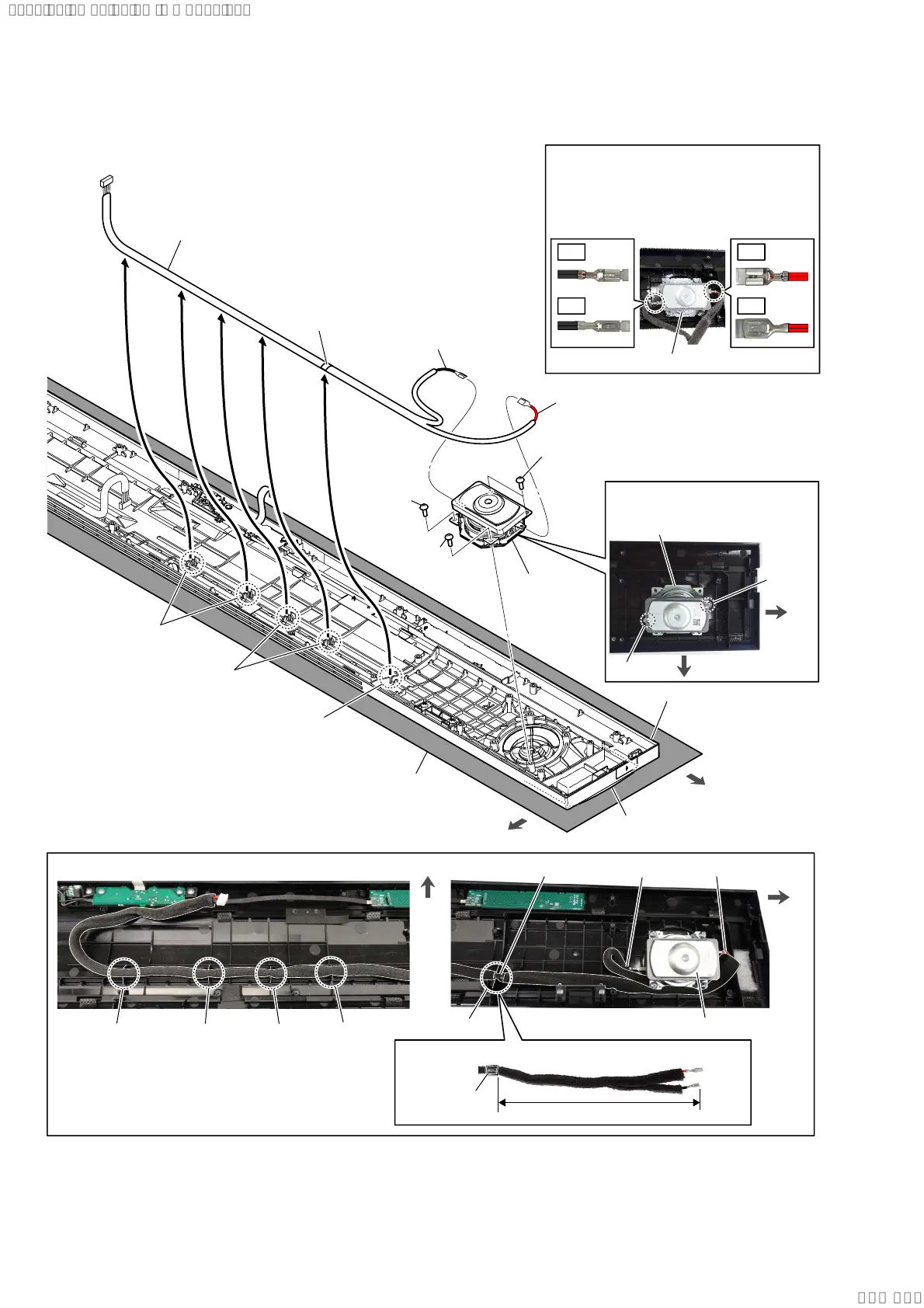

2-8. LOUDSPEAKER (R-CH) (SP2)
255 mm
Note 3:
When connecting the terminals of the
connection cable to the loudspeaker, be
careful of the direction of the terminals.
loudspeaker (R-ch)
5 two screws
(BVTP3.5)
6 loudspeaker
(R-ch) (SP2)
loudspeaker (R-ch) (SP2)
3 terminal (wide)
[red]
wide
3 terminal (narrow)
[black]
narrow
1 Draw the connection cable
out of the two grooves.
2 Draw the connection cable
out of the groove.
1 Draw the connection cable
out of the two grooves.
,QVWDOODWLRQGLUHFWLRQZKHQFRQQHFWLQJWKH
WHUPLQDOVRIWKHFRQQHFWLRQFDEOH5FK
,QVWDOODWLRQGLUHFWLRQIRUWKH
ORXGVSHDNHU5FK63
Note 1:
Lay a soft piece of cloth under the unit
to avoid damaging the top cabinet assy.
rear side
rear side
right side
right side
,QVWDOODWLRQSRVLWLRQRIWKHSDFNLQJ&/
&RQQHFWLRQFDEOH5FKVHWWLQJ
5 screw
(BVTP3.5)
5 screw
(BVTP3.5)
top cabinet block
groove groove groove
groove
groove
packing (CL3)
packing (CL3)
[red]
[black]
loudspeaker (R-ch) (SP2)
right side
4 connection cable block (R-ch)
front side
Note 2:
Take care not to crush
the front grille.
OK
NG
OK
NG
packing (CL3)
SYSSET
