Sony SA-CT800 - SIRCS Board; DISPLAY Board

HT-CT800
12

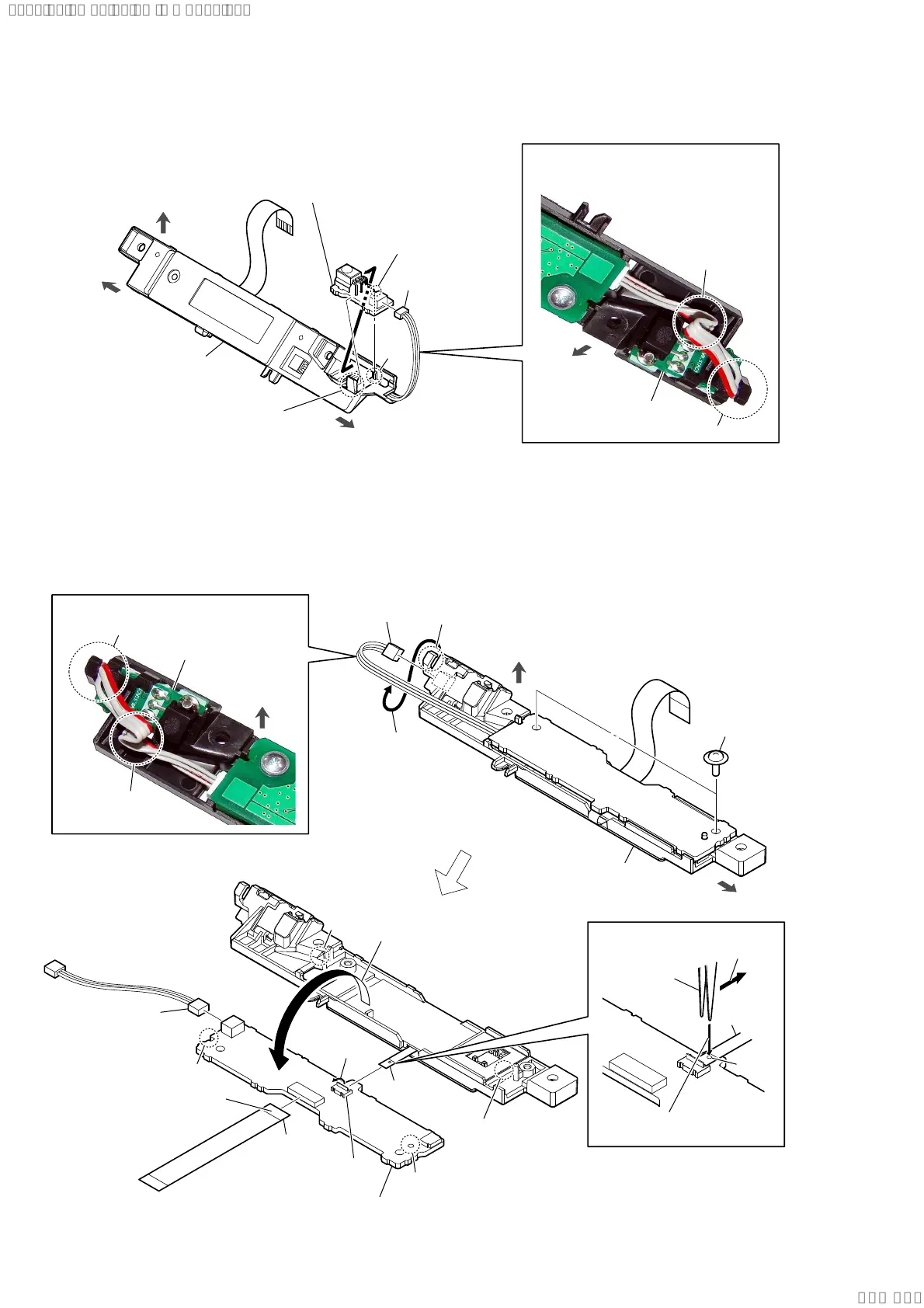

2-5. SIRCS BOARD
2-6. DISPLAY BOARD
top side
left side
right side
Bend the wire.
:LUHVHWWLQJ
bottom side
hook
SIRCS board
DISPLAY board block
2 claw
3
rib
groove
4 SIRCS board
Note:
When installing the SIRCS board,
align the groove and rib.
1 DISPLAY board
cable connector
(CN891)
–5HDUYLHZ–
:LUHVHWWLQJ
bottom side
right side
DISPLAY board block
boss
boss
hole
groove
3 two screws
(PTP2 u 5)
9 FFC 18P
(CN1303)
1 connector
(CN891)
hook
2 Remove the wire
from the hook.
4 Open the
DISPLAY board block
in the direction of the arrow.
8 connector
(CN1304)
terminal
side
0 DISPLAY board
Note:
When installing the DISPLAY board, align
the groove and hole with the two bosses.
5 Unlock
CN1302
Bend the wire.
hook
SIRCS board
bottom side
terminal side
6 Insert a tweezers etc. in
the hole of the FPC.
tweezers etc.
hole
7 Pull out the FPC from the
connector horizontally.
FPC
