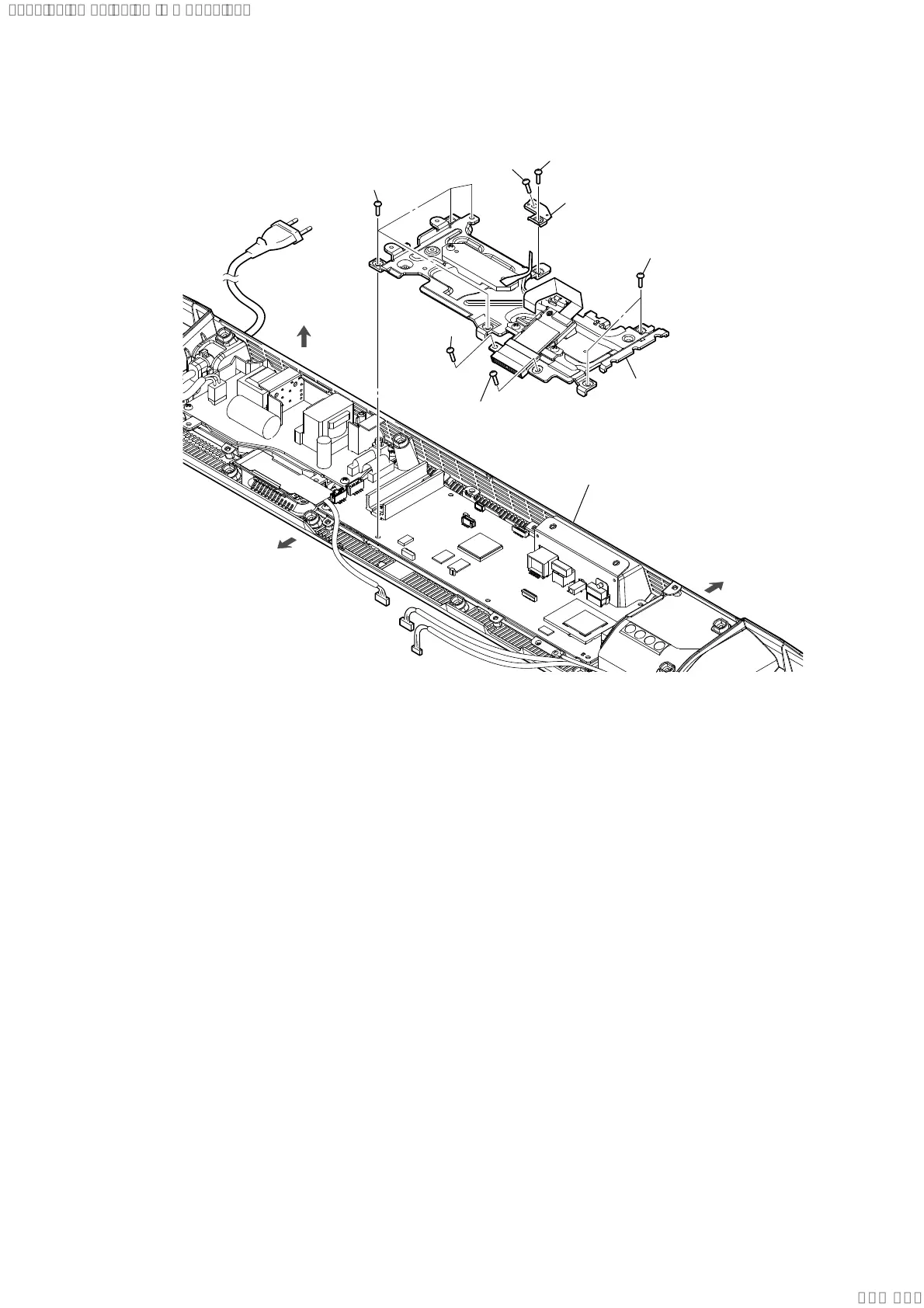

2-24. SHIELD (MAIN) BLOCK-2
1 four screws
(BVTP3 u 8)
1 screw
(BVTP3 u 8)
1 screw
(BVTP3 u 8)
1 screw
(BVTP3 u 8)
1 screw
(BVTP3 u 8)
1 two screws
(BVTP3 u 8)
2 ground plate
3 shield (main) block
bottom cabinet block
front side
rear side
top side
