HT-CT800
17

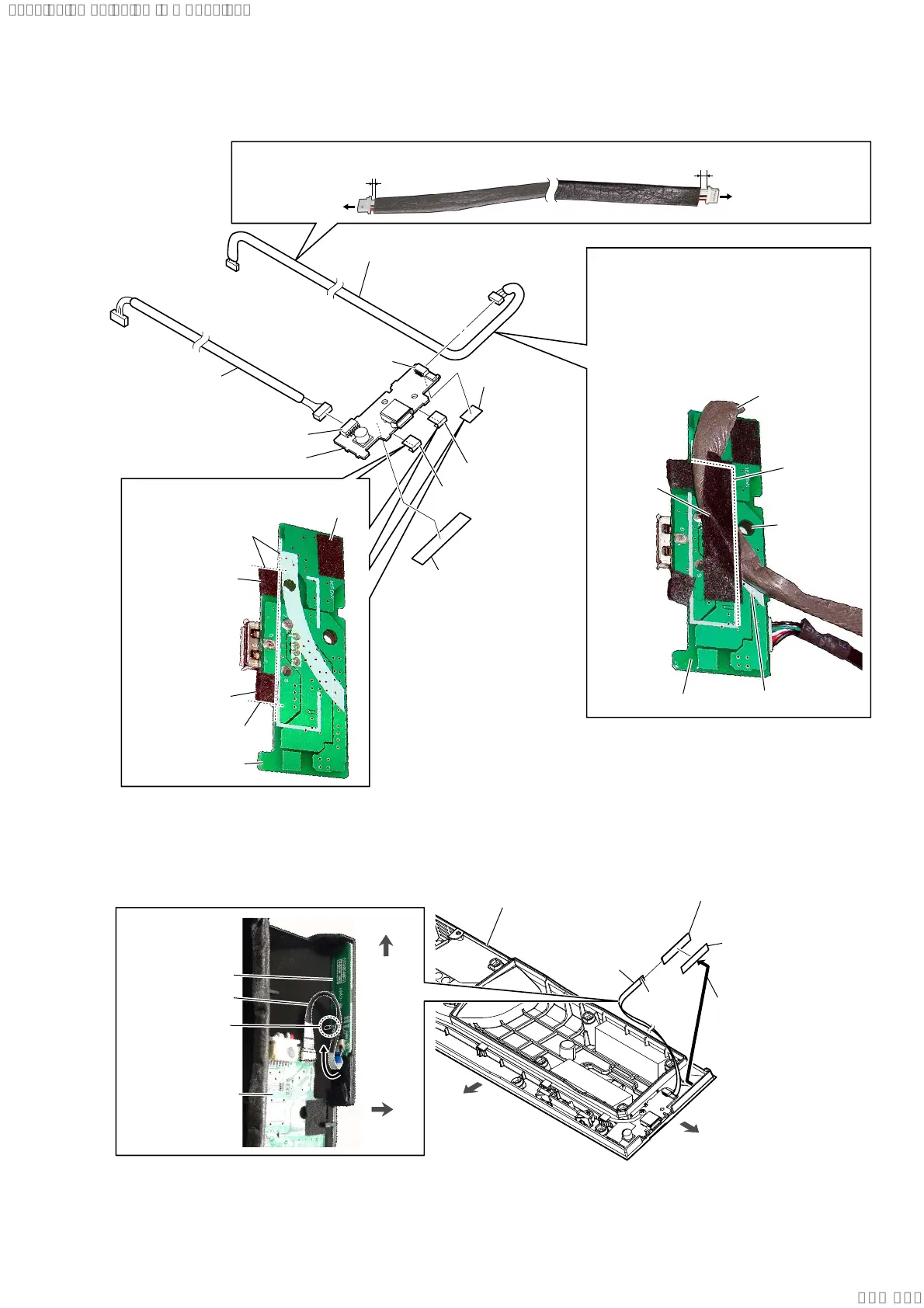

2-11. USB-CHUKEI BOARD
2-12. NFC BOARD
7 USB-CHUKEI board
4 connector
(CN1451)
1 connector
(CN1401)
3 cushion (CZ2-A)
6 cushion (T03)
6 cushion (T03)
6 cushion (T03)
white line
cushion (T03)
cushion (T03)
cushion (T03)
guide line
guide line
:LUHVHWWLQJ
3DVWLQJSRVLWLRQRIWKHFXVKLRQ7
,QVWDOODWLRQGLUHFWLRQIRUWKH0%ERDUGFRQQHFWLRQFDEOH3
2 MB-1612 board
connection cable
(5P)
10 mm
–5HDUYLHZ–
Note 1:
Arrange the cable along the white
line on the USB-CHUKEI board.
Note 2:
When affixing the cushion (CZ2-A),
be careful that it does not obstruct
the screw hole.
USB-CHUKEI board
USB-CHUKEI board
screw hole
1 mm
to MB-1612 board
to USB-CHUKEI board
–5HDUYLHZ–
guide line
cushion
(CZ2-A)
MB-1612 board
connection cable
(6P)
5 MB-1612 board
connection cable
(6P)
front side
right side
2 FFC 6P
(CN001)
terminal
side
bottom cabinet block
4 NFC board
3 double adhesive tape
rear side
right side
FFC 6P
rib
NFC board
USB-CHUKEI board
))&VHWWLQJ
1 Peel the NFC board
block off of the bottom
cabinet block.
