Sony SA-CT800 - MAIN Board Section

63
HT-CT800

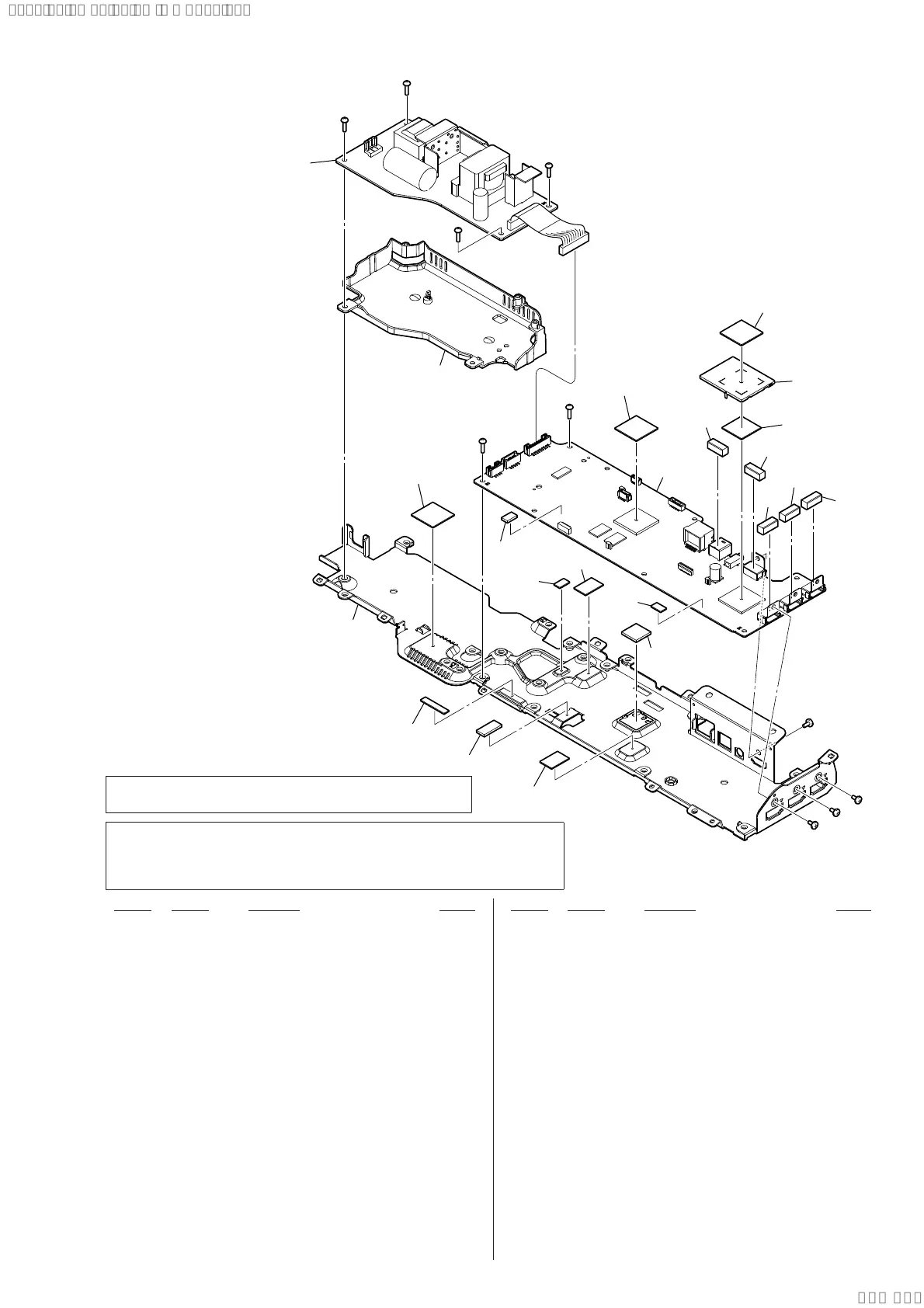

6-5. MAIN BOARD SECTION
#3
201
#
3
#3
#3
#2
#2
#2
#2
#2
#2
not supplied
not supplied
not supplied
202
203
201
204
204
204
205
206
207
208
208
208
208
208
209
210
210
211
Note 1: If the radiation sheets (Ref. No. 201, 202, 203, 204, 205, 210,
211) are damaged, be sure to replace them with new parts.
Note 2: When the COMPLETE MB-1612 BOARD (Ref. No. 209) is replaced, refer to
“NOTE OF REPLACING THE MB-1612 BOARD OR WLAN/BT COMBO
CARD” on page 5, “BOND FIXED POSITION OF ELECTRICAL PARTS”
and “SPREADING OF COMPOUND” on page 8.
201 4-562-041-01 SHEET, RADIATION (See Note 1)
202 4-591-520-21 SHEET, RADIATION (See Note 1)
203 4-562-041-61 SHEET, RADIATION (See Note 1)
204 4-562-041-51 SHEET, RADIATION (See Note 1)
205 4-591-520-11 SHEET, RADIATION (See Note 1)
206 A-2083-659-A POWER BOARD, COMPLETE (US, CND, TW)
206 A-2143-840-A POWER BOARD, COMPLETE
(AEP, UK, SP1, AR, TH, LA, AUS, CH)
206 A-2143-842-A POWER BOARD, COMPLETE (E3, EA3)
207 4-589-900-01 SHEET, RADIO WAVE ABSORPTION
208 4-586-625-11 GASKET (SL)
9 209 A-2178-457-A MB-1612 BOARD, COMPLETE (SV) (CH)
(See Note 2)
9 209 A-2178-458-A MB-1612 BOARD, COMPLETE (SV) (TW)
(See Note 2)
9 209 A-2178-459-A MB-1612 BOARD, COMPLETE (SV) (TH)
(See Note 2)
9 209 A-2178-460-A MB-1612 BOARD, COMPLETE (SV) (AR)
(See Note 2)
9 209 A-2178-461-A MB-1612 BOARD, COMPLETE (SV) (US, CND)
(See Note 2)
9 209 A-2178-462-A MB-1612 BOARD, COMPLETE (SV) (AEP)
(See Note 2)
9 209 A-2178-463-A MB-1612 BOARD, COMPLETE (SV) (UK)
(See Note 2)
9 209 A-2178-464-A MB-1612 BOARD, COMPLETE (SV) (E3)
(See Note 2)
9 209 A-2178-465-A MB-1612 BOARD, COMPLETE (SV) (SP1)
(See Note 2)
9 209 A-2178-466-A MB-1612 BOARD, COMPLETE (SV) (EA3)
(See Note 2)
9 209 A-2178-468-A MB-1612 BOARD, COMPLETE (SV) (LA)
(See Note 2)
9 209 A-2178-470-A MB-1612 BOARD, COMPLETE (SV) (AUS)
(See Note 2)
210 4-562-041-21 SHEET, RADIATION (See Note 1)
211 4-591-520-01 SHEET, RADIATION (See Note 1)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-682-546-09 SCREW +B 3X5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.3
