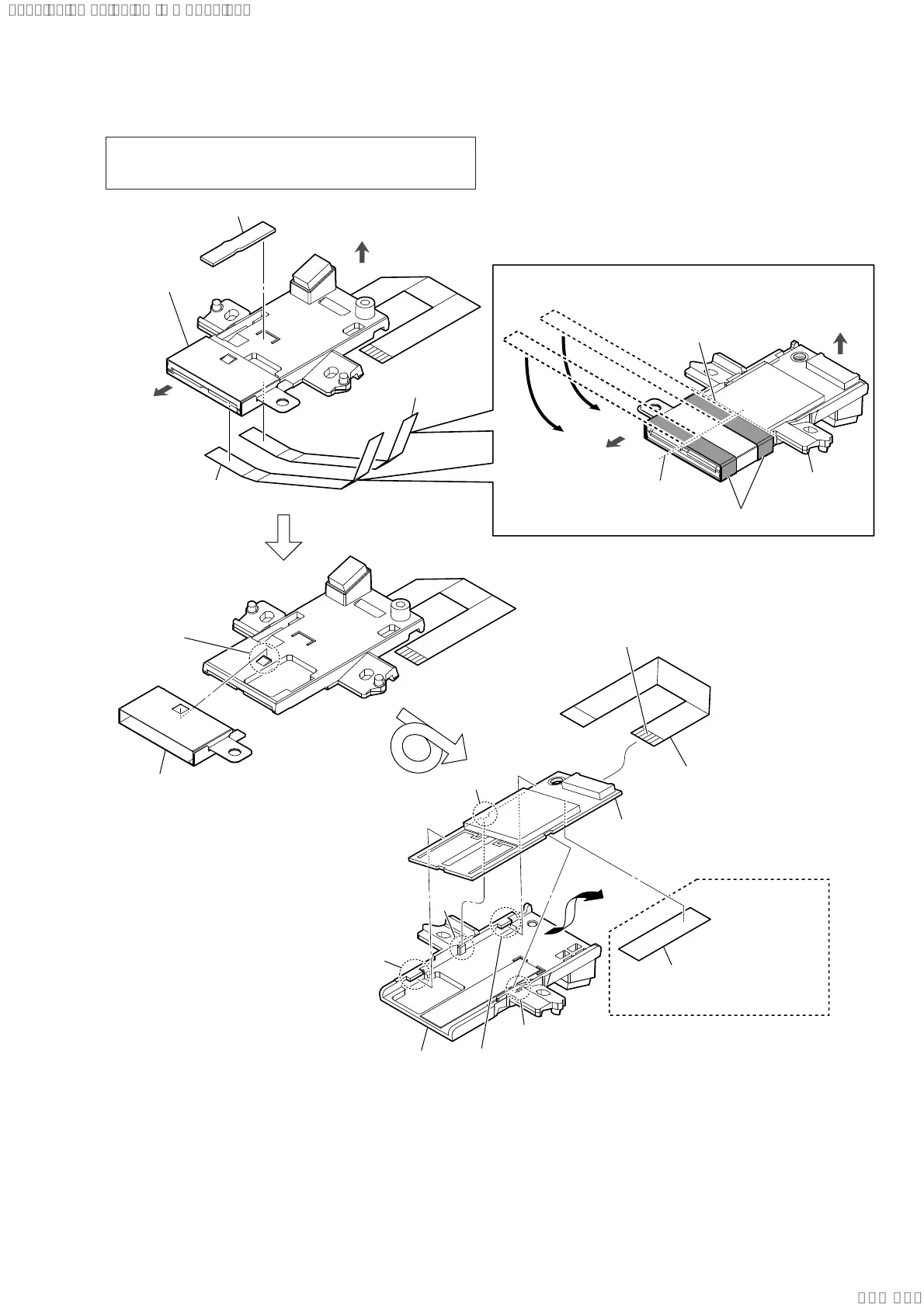

2-22. RF MODULATOR (RF1)
1 cushion (CL3)
1 cushion (CL3)
2 packing (CL3)
4 WS shield
3 claw
5 FFC 24P
8 CNC label (SWA12) (AR)
or
cmiit ID label (CH)
terminal side
6 claw
6 claw
6 claw
7 WSJ holder assy
groove
rib
9 RF modulator (RF1)
Note 2:
When installing the RF modulator,
align the rib and groove.
RF modulator block
front side
bottom side
3DVWLQJSRVLWLRQRIWKHFXVKLRQ&/
starting point
(center)
guide line
RF modulator
block
top side
front side
cushion (CL3)
$5&+
Note 1: When the RF modulator (RF1) is replaced, refer to “WIRE-
LESS CONNECTION (LINK) WORK OF BAR SPEAKER
AND SUBWOOFER” on page 7.
