Sony SA-CT800 - BTW (WIFI) Board Block

HT-CT800
18

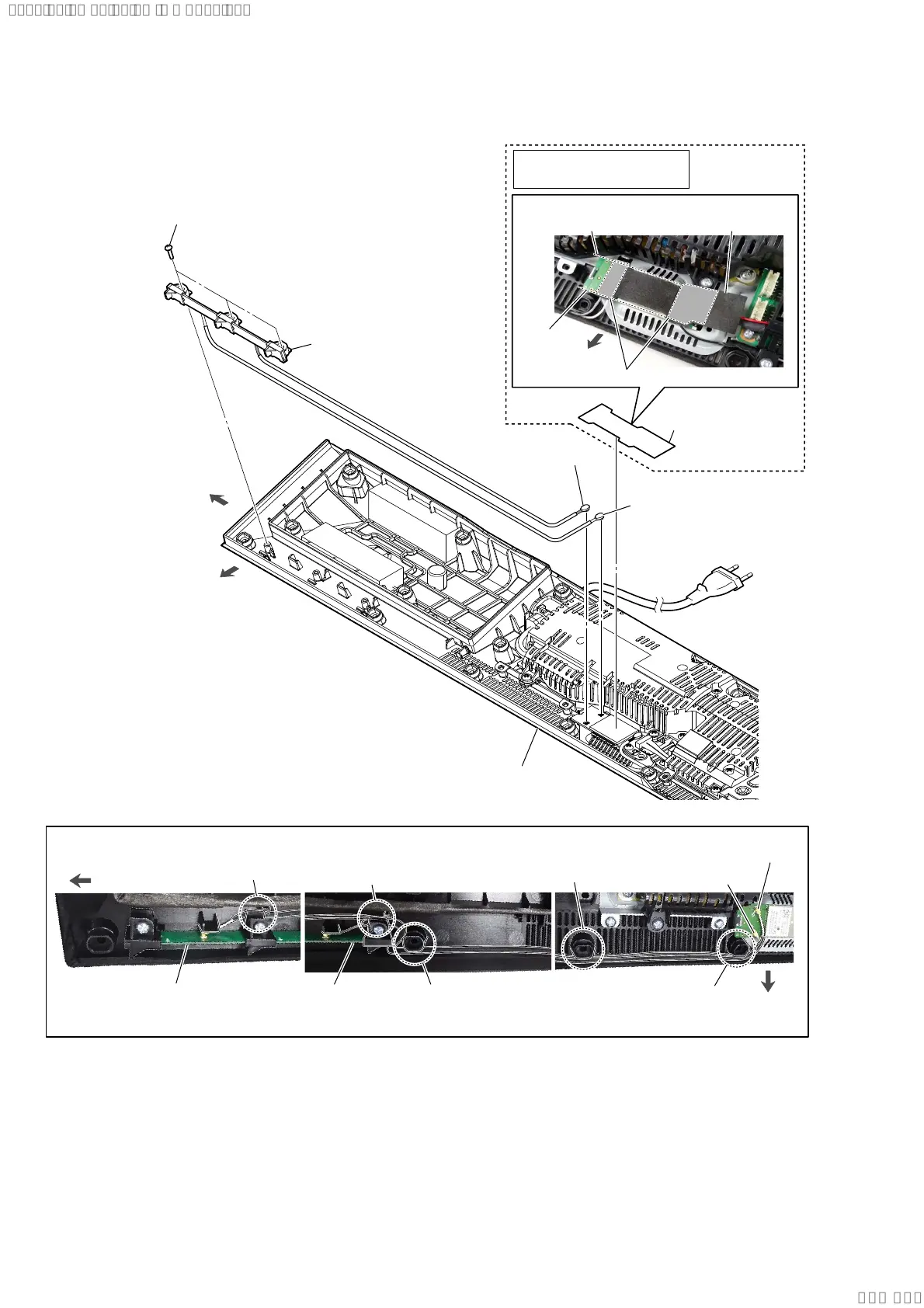

2-13. BTW (WIFI) BOARD BLOCK
front side
3 three screws
(BVTP3 u 8)
4 BTW (WIFI) board block
bottom cabinet block
left side
1 cushion (WIFI label)
2 connector (No. 3)
[gray]
2 connector (No. 2)
[white]
3DVWLQJSRVLWLRQRIWKHFXVKLRQ:,),ODEHO
guide line
guide line
Pressing the adhesive area.
cushion (WIFI label)
&RD[LDOKDUQHVV>ZKLWH@>JUD\@VHWWLQJ
front side
left side
BTW (WIFI-1) board
[white]: No. 2
Pass the coaxial harness
across the front side of
the screw hole.
[gray]: No. 3
BTW (WIFI-2) board
slot
slot
front side
Pass the coaxial harness
across the front side of
the screw hole.
Pass the coaxial harness
across the front side of
the screw hole.
Note:
This part is deleted from
the midway of production.
Ver. 1.3
