Sony SA-CT800 - BTW (BT) Board Block

HT-CT800
20

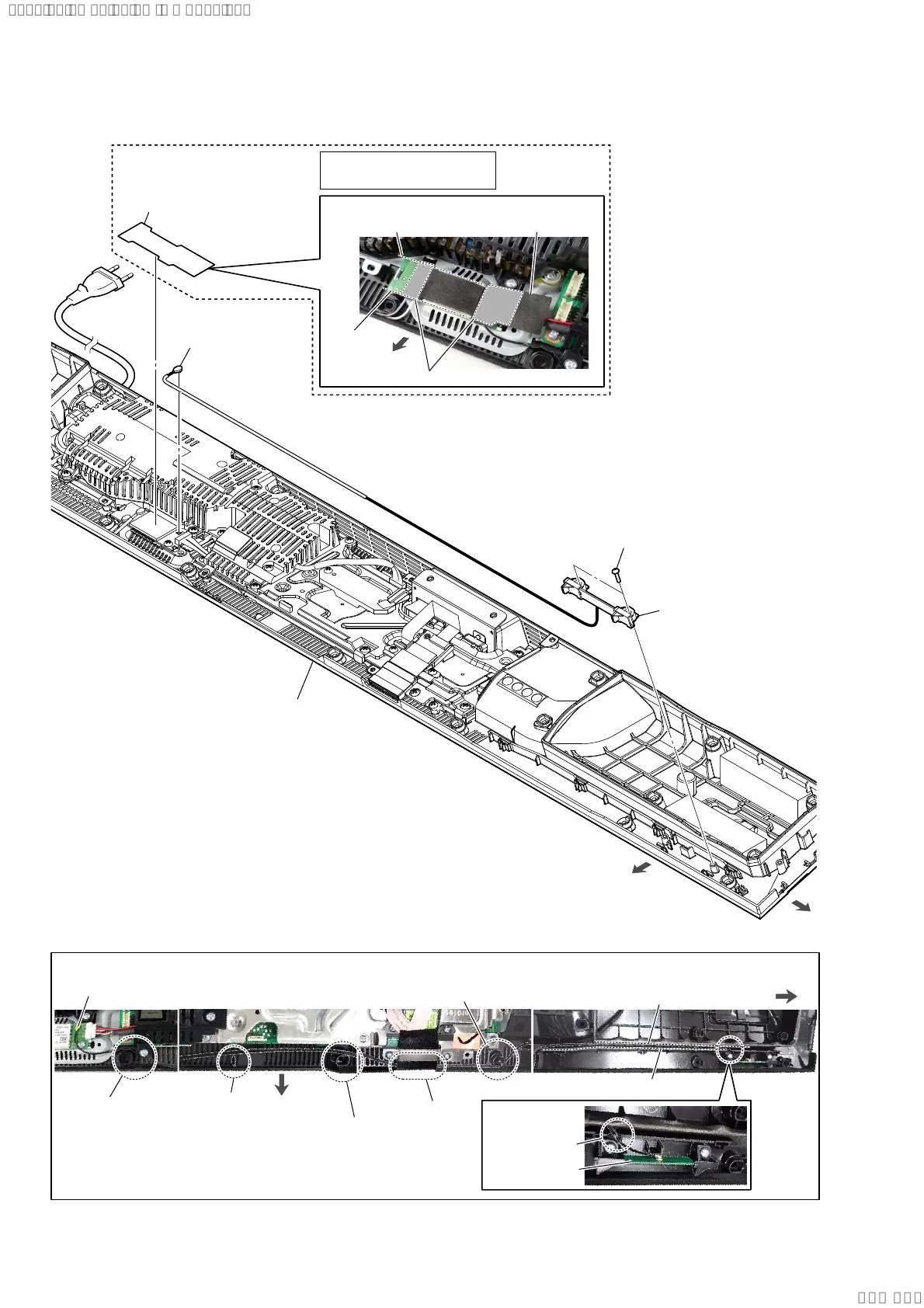

2-15. BTW (BT) BOARD BLOCK
1 cushion (WIFI label)
3 two screws
(BVTP3 u 8)
4 BTW (BT) board block
2 connector (No. 1)
[black]
front side
right
side
bottom cabinet block
[black]: No. 1
&RD[LDOKDUQHVV>EODFN@VHWWLQJ
Pass the coaxial harness
across the rear side of
the screw hole.
Pass the coaxial harness
across the front side of
the screw hole.
slit
rib
rib
rib
front side
right side
3DVWLQJSRVLWLRQRIWKHFXVKLRQ:,),ODEHO
guide line
guide line
Pressing the adhesive area.
cushion (WIFI label)
slot
BTW (BT) board
front side
Pass the coaxial harness
across the rear side of
the screw hole.
Note:
This part is deleted from
the midway of production.
