Sony SA-CT800 - Bottom Cabinet Section

61
HT-CT800
not supplied
B
C
C
D
F
F
G
E
D
B
E
G
chassis section
AC1
not supplied
not supplied
(BTW (BT) board)
not
supplied
not supplied
(BTW (WIFI-1)
board)
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(USB-CHUKEI board)
FFC3
not supplied
not supplied
WR1
WR2
WR3
101
102
103
104
104
105
101
106
107
108
109
111
110
110
104
104
not supplied
(BTW (WIFI-2) board)
#2
#2
ACP1
(SP1 for Hong Kong)
(See Note 2)
Note 1:
This part is deleted from
the midway of production.

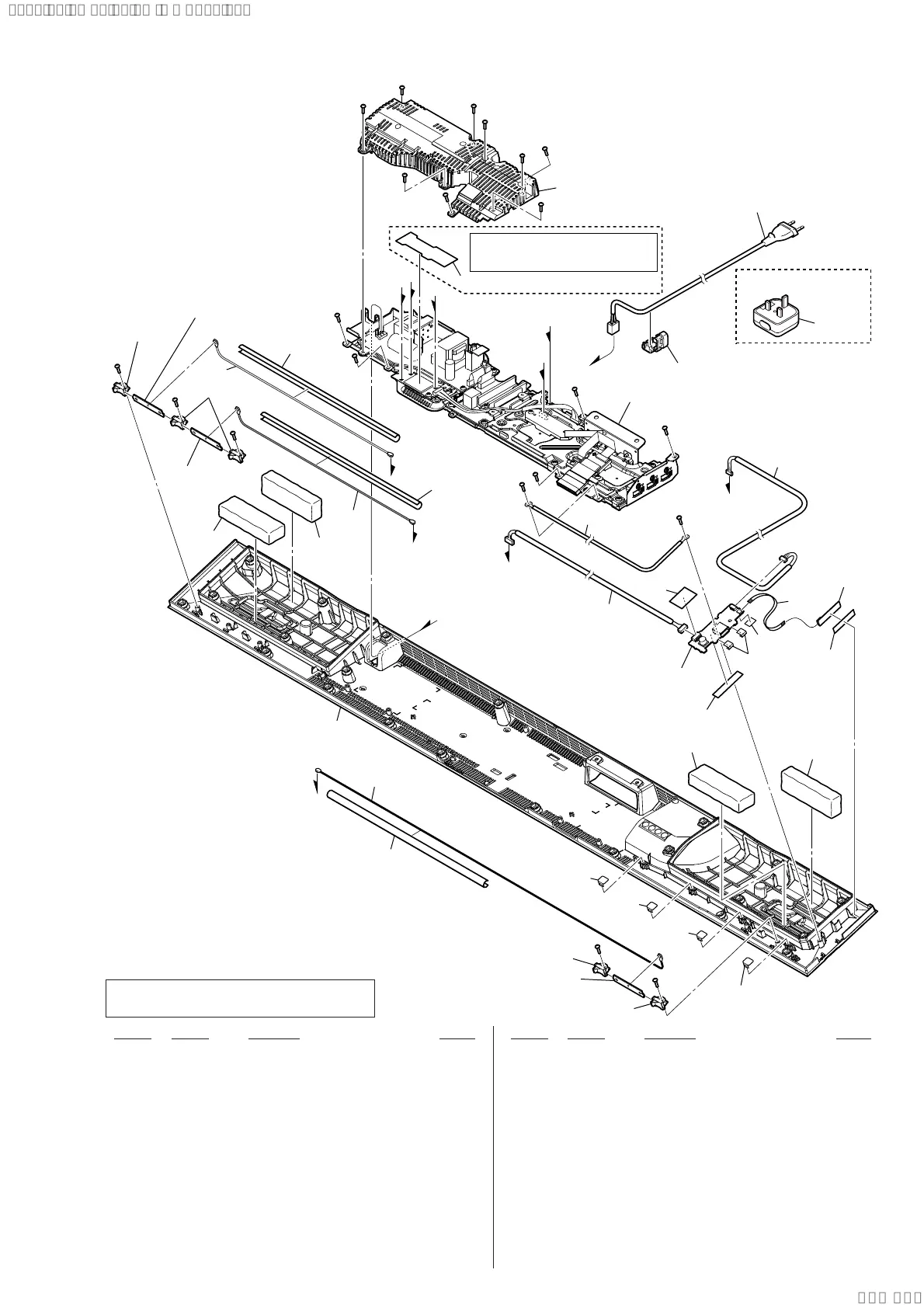

6-3. BOTTOM CABINET SECTION
101 4-582-466-51 CUSHION (T03)
102 X-2592-420-1 CABINET, BOTTOM ASSY
103 4-564-785-11 CUSHION (CZ2-A)
104 4-586-787-01 CUSHION, ABSORBENT
105 4-582-466-41 CUSHION (T03)
106 4-592-180-01 CUSHION (WIFI LABEL) (See Note 1)
0 107 4-966-267-12 BUSHING (FBS001), CORD
108 4-586-786-91 CUSHION (CL3)
109 4-586-705-21 DOUBLE ADHESIVE TAPE
110 4-582-466-61 CUSHION (T03)
111 A-2092-220-A NFC BOARD, COMPLETE
0 AC1 1-834-966-42 POWER-SUPPLY CORD (AEP, E3, SP1, LA)
0 AC1 1-835-068-21 CORD, POWER (AUS)
0 AC1 1-837-308-12 CORD, POWER-SUPPLY (US, CND)
0 AC1 1-837-312-11 CORD, POWER-SUPPLY (AR)
0 AC1 1-837-345-11 CORD, POWER-SUPPLY (TW)
0 AC1 1-837-822-21 CORD, POWER-SUPPLY (CH)
0 AC1 1-839-940-22 POWER-SUPPLY CORD (TH)
0 AC1 1-839-999-22 POWER-SUPPLY CORD (UK, EA3)
0 ACP1 1-844-323-11 ADAPTOR, CONVERSION PLUG 3P (SV)
(SP1 for Hong Kong only) (See Note 2)
FFC3 1-971-549-11 FFC 6P USB-CHUKEI - NFC
WR1 1-849-285-11 HARNESS, COAXIAL (BLACK)
WR2 1-849-283-11 HARNESS, COAXIAL (GRAY)
WR3 1-849-284-11 HARNESS, COAXIAL (WHITE)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.3
Note 2: Ref. No. ACP1 is a service part used only
for the SP1 model sold in Hong Kong.
