Sony STR-DA3300ES - AC;DC-DC Boards Section

149
STR-DA3300ES/DG1100
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 A-1252-444-A DC-DC BOARD, COMPLETE
152 3-704-515-51 SCREW (BV/RING)
153 1-828-318-51 WIRE (FLAT TYPE) (11 CORE)
(DA3300ES: US, CND)
154 1-828-954-51 WIRE (FLAT TYPE) (9 CORE)
(DA3300ES: US, CND/DG1100)
154 1-828-964-51 WIRE (FLAT TYPE) (11 CORE)
(DA3300ES: AEP, ECE, UK)
155 1-693-728-11 TUNER (FM/AM)
(DA3300ES: US, CND/DG1100)
155 1-693-737-11 TUNER (FM/AM) (DA3300ES: AEP, ECE, UK)
0F001 1-532-504-33 FUSE (T4AL/250V) (DA3300ES: AEP, ECE, UK)
0F001 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA.5) (8A/125V)
(DA3300ES: US, CND/DG1100)
0F03 1-533-420-12 FUSE, GLASS CYLINDRICAL(DIA.5) (5A/125V)
(DG1100)
0F1405 1-532-506-33 FUSE (T6.3AL/250V)
J881 1-815-737-11 CONNECTOR, (D) SUB 9P (RS-232C)
(DA3300ES: US, CND)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-862-01 SCREW +BVTT 2.6X6 (S)
not supplied
(CIS board)
not supplied
(SUB WOOFER board)
F03
F001
153
#1
not supplied
J881
(DA3300ES: US, CND)
(DA3300ES: US, CND)
(DG1100)
(DG1100)
(DG1100)
(DA3300ES)
(DA3300ES)
#1
#1
#1
#1#1
#1
#1
#1
#1
supplied with J881
D_AUDIO/D_VIDEO boards section
#2
F1405
not supplied
(PREOUT board)
not supplied
(S_SPTM board)
151
#1
not supplied
not supplied
not supplied
not supplied
(AC board)
152
154
155
not supplied
(DA3300ES: AEP, ECE, UK)

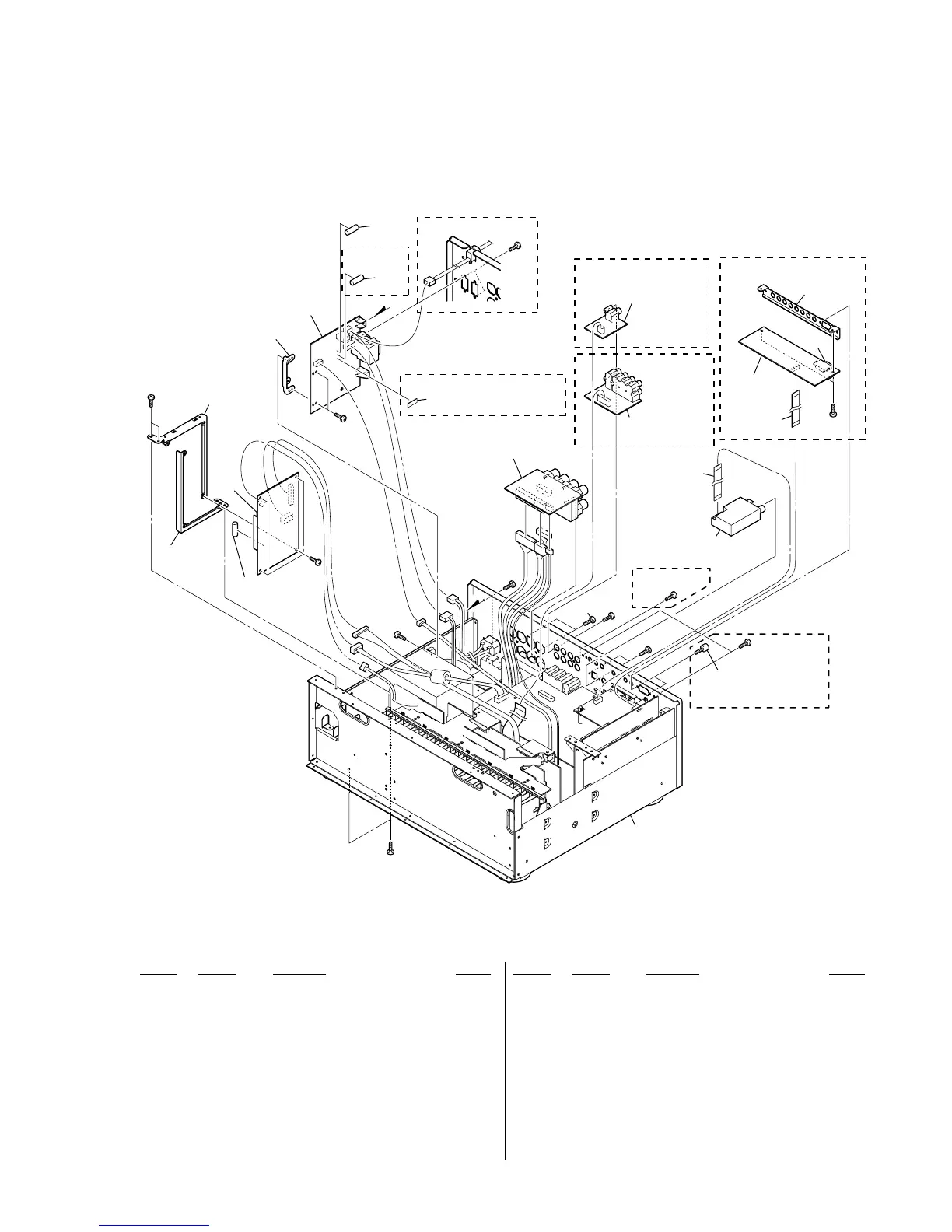

7-4. AC/DC-DC BOARDS SECTION
Ver. 1.2
