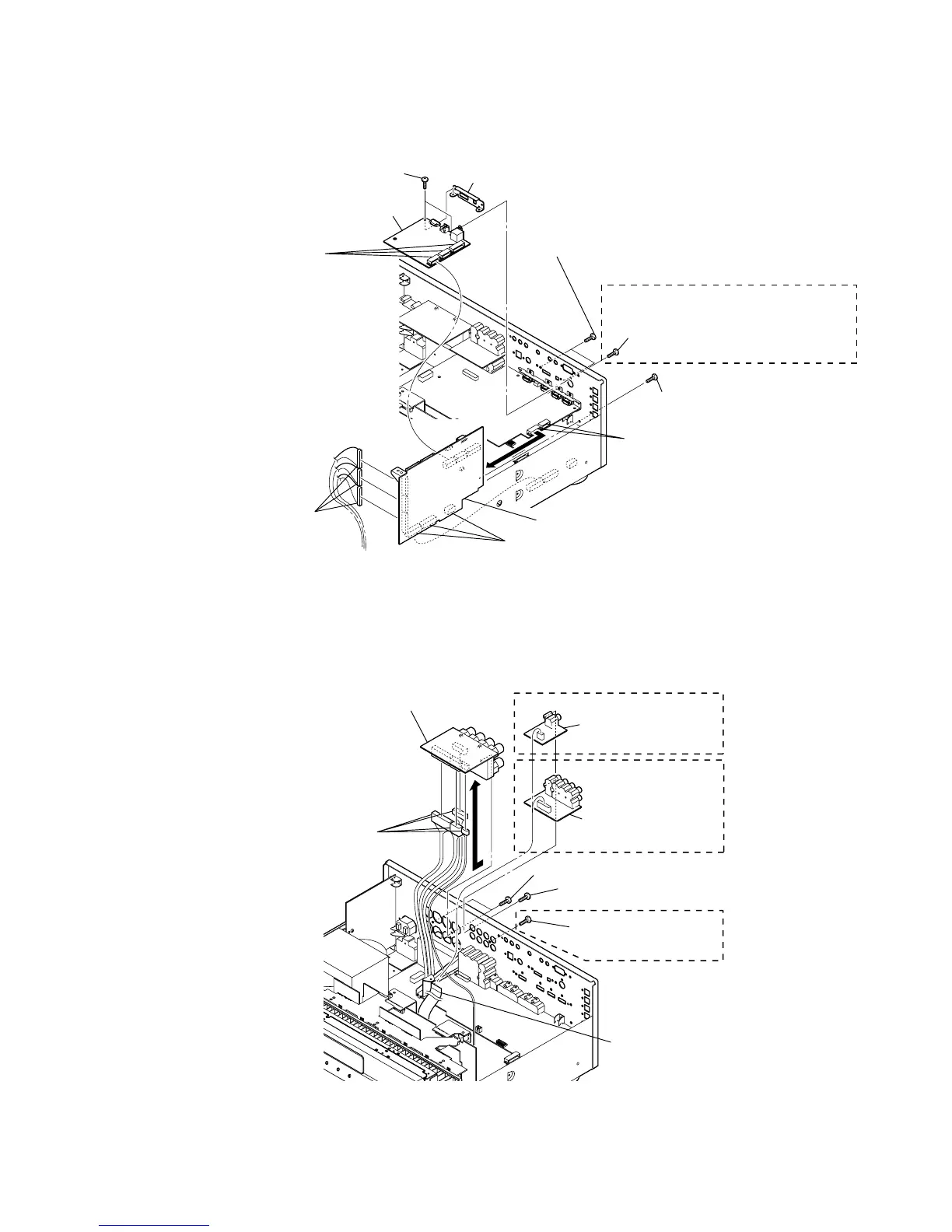

3-6. TUNER BOARD, CONTROL BOARD
3-7. PREOUT BOARD (DA3300ES), SUB WOOFER BOARD (DG1100) AND S_SPTM BOARD
qa CONTROL board
6 TUNER board
5 bracket (digital-tuner)
8 screw
(BVTP3
× 8)
1 screw
(B3
× 6)
2 two screws
(BVTP3
× 8)
4 two screws
(BVTP3
× 8)
7 three connectors
(CN2015, CN2016, CN2017)
q; three connectors
(CN2008, CN2009, CN2010)
3 three connectors
(CN8006, CN8007, CN8008)
9 two connectors
(CN3505, CN3801)
(DA3300ES: US and Canadian models/
DG1100)
3 PREOUT board
3 SUB WOOFER board
5
7 S_SPTM board
2 screw
(BVTP3
× 8)
2 screw
(BVTP3
× 8)
6 four connectors
(CN4001, CN4002
CN4003, CN4004)
4 two screws (BV/ring)
1 wire (flat type) (19 core)
(CN4051) (DA3300ES),
wire (flat type) (5 core)
(CN4081) (DG1100))
(DG1100)
(DA3300ES)
(DA3300ES)
