Sony STR-DA3300ES - CIS Board (DA3300 ES: US and Canadian Models); Tuner (FM;AM); D_AUDIO Board, DSP Board

STR-DA3300ES/DG1100
18

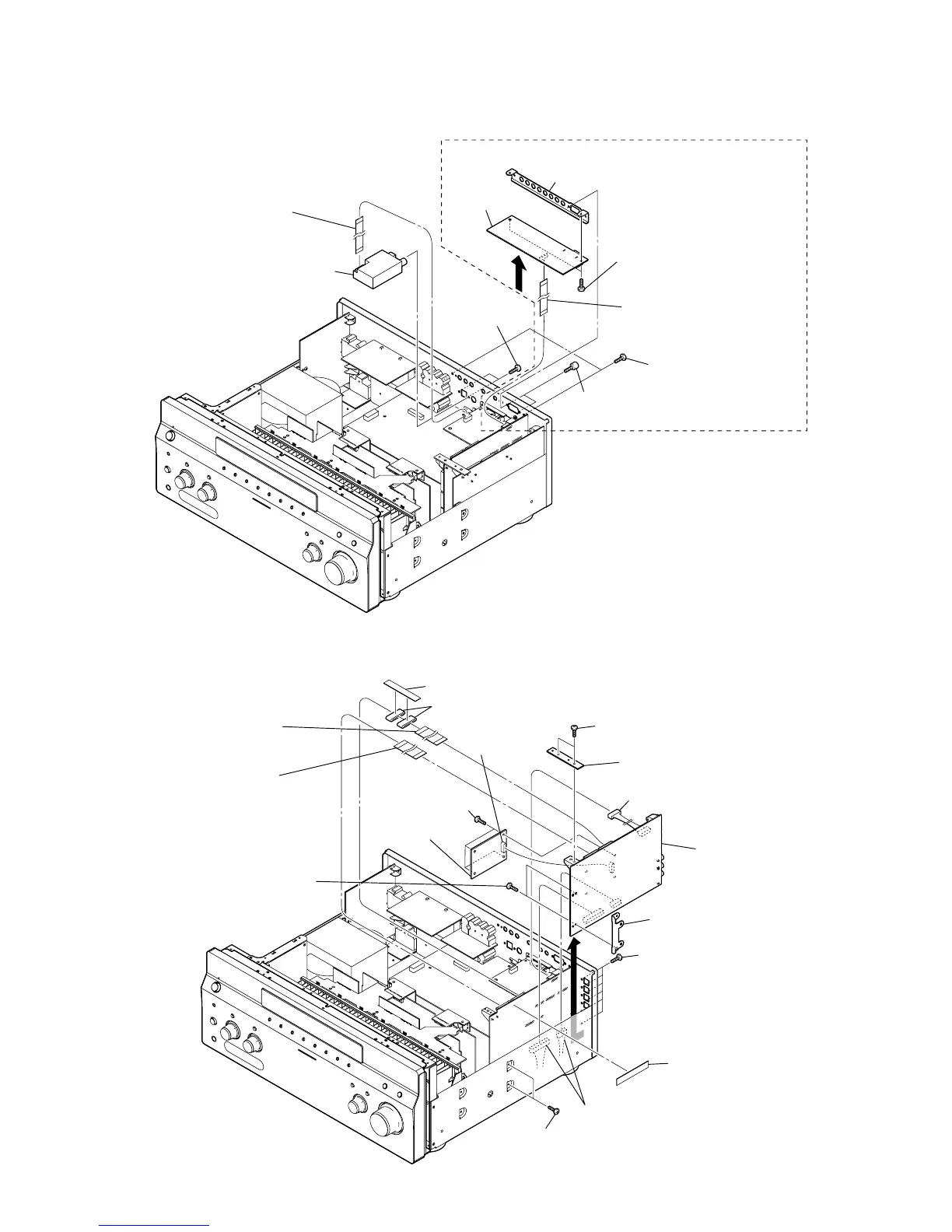

3-5. D_AUDIO BOARD, DSP BOARD
3-4. CIS BOARD (DA3300ES: US and Canadian models), TUNER (FM/AM)
(DA3300ES: US and Canadian models)
4 wire (flat type) (11 core)
(CONTROL board (CN2004),
CIS board (CN801))
7 CIS board
6 bracket (CIS PC board)
2 two screws
(BVTP3
× 8)
3
1 two screws
(supllied with J881)
9 two screws
(BVTT2.6
× 6)
5 two screws
(BVTP3
× 8)
q; tuner (FM/AM)
8 wire (flat type) (9 core)
(DA3300ES: US and Canadian models/DG1100),
wire (flat type) (11 core)
(DA3300ES: AEP, Russian,
Ukrainian and UK models),
(TUNER board (CN8004),
tuner (FM/AM))
3 saranet cushion
5 saranet cushion
qk D_AUDIO board
1 two screws
(BVTP3
× 8)
qa
qj bracket (AC)
8 connector (CN2020)
qf connector
(CN1)
2 SUPPORT board
6 two ferrite cores
qg DSP board
9 two screws
(BVTP3
× 8)
q; six screws
(BVTP3
× 8)
qh two screws
(BVTP3
× 8)
qd four screws
(BVTP2.6)
4 wire (flat type) (21 core)
(D_AUDIO board (CN2010),
CONTROL board (CN2012))
7 wire (flat type) (21 core)
(D_AUDIO board (CN2209),
CONTROL board (CN2014))
qs two connectors
(CN2204, CN2207)
Ver. 1.2
