Sony STR-DA3300ES - AC Board, Power Transformer (T001); Power AMP Block

STR-DA3300ES/DG1100
22

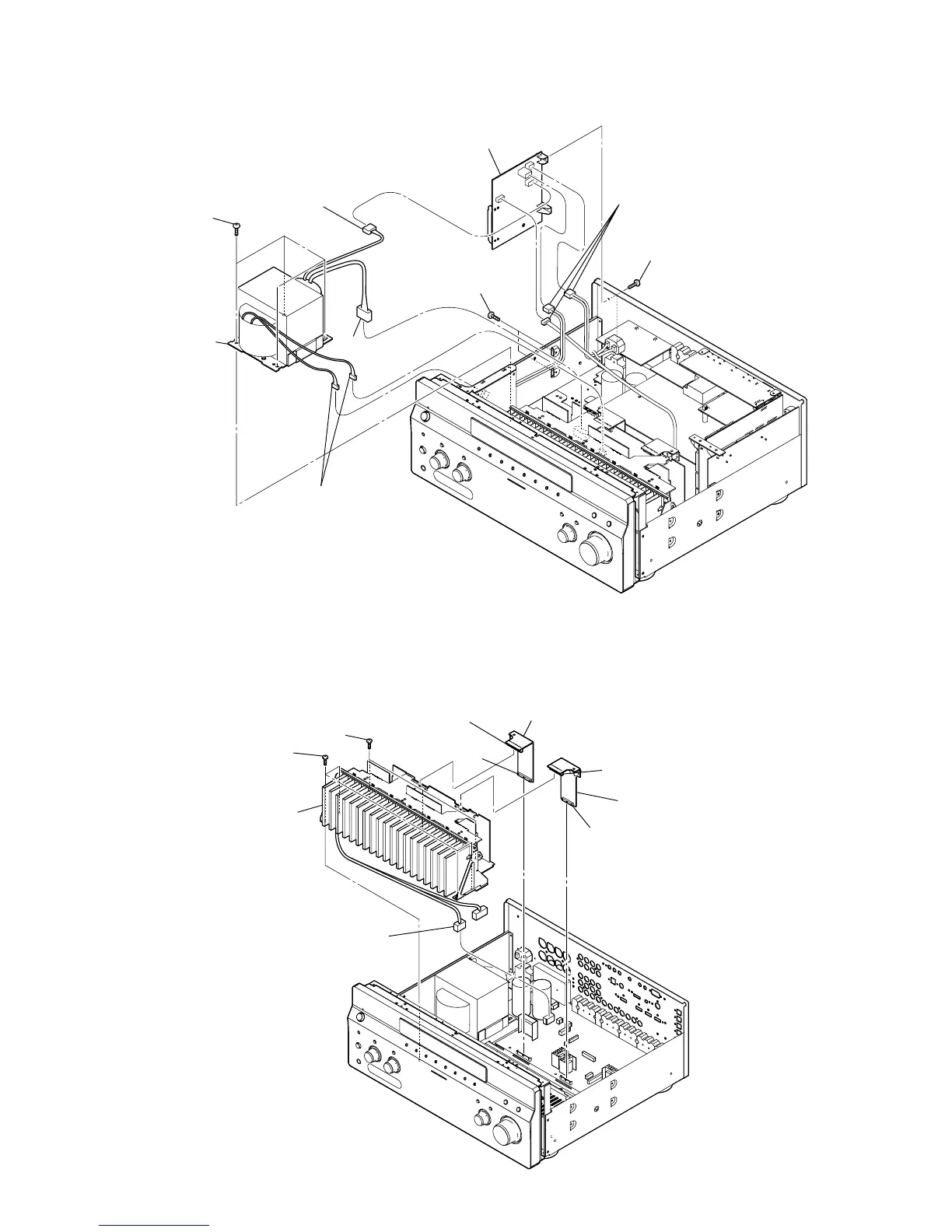

3-11. AC BOARD, POWER TRANSFORMER (T001)
1 four connectors
(CNP51, CNP53, CNP54)
2 connector
(CNP02)
3 two screws
(BVTP3
× 8)
4 two screws
(BVTP3
× 8)
8 four screws
(BVTT4
× 8)
5 AC board
6 connector
(CN1002)
7 two connectors
(CN1001, CX1402)
9 power transformer
(T001)
3-12. POWER AMP BLOCK
7 connector
(CN1005)
8 four screws
(BVTP3
× 8)
8 three screws
(BVTP3
× 8)
9 power AMP block
3 CONNECTOR 4 board
6 CONNECTOR 3 board
1 connector
(CN1207)
4 connector
(CN1202)
5 connector
(CN1203)
2 connector
(CN1204)
