Sony STR-DA3300ES - Display Board

120
STR-DA3300ES/DG1100

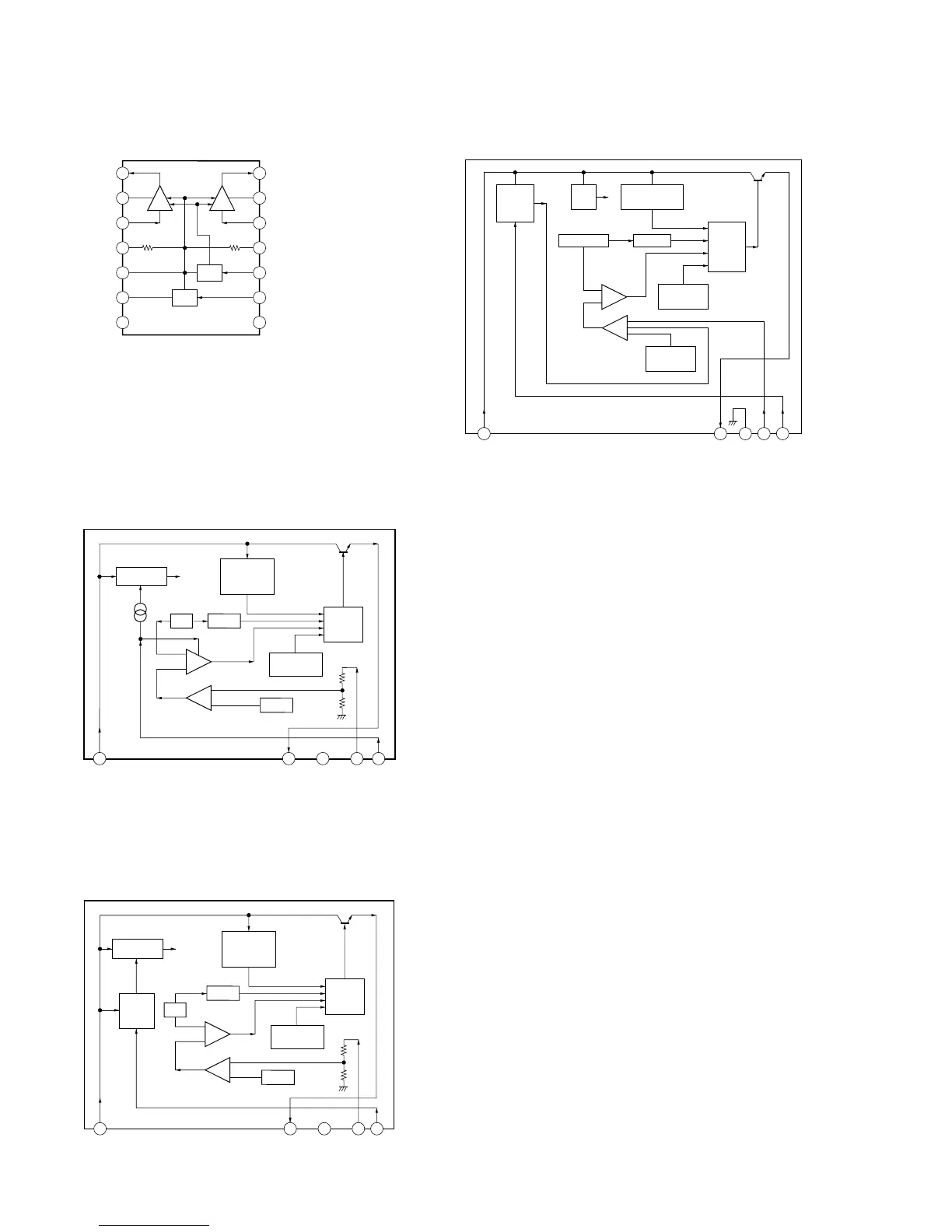

– DISPLAY Board –
IC703 NJM2173AV (TE2)
– DC-DC Board –
IC1402, 1403 SI-8008HFE
1OUT1
2DC CUT1
3IN1
4MIC V+1
5REG
6NOISE
7GND
14 OUT2
13 DC CUT2
12 IN2
11 MIC V+2
10 GV
9 STBY
8V+
REG
GV
AMP1 AMP2
IN
1
SW
2
SS
5
ADJ
4
LATCH
&
DRIVER
ERROR AMP
COMPARATOR
OSCILLATOR RESET
OVERCURRENT
PROTECTION
THERMAL
PROTECTION
REFERENCE
VOLTAGE
GND
3
ON/OFF
SOFT
START
PREG
+
+
+
–
–
IC1404 SI-8050S-LF1101
OVER
CURRENT
PROTECTOR
LATCH
&
DRIVER
OVER HEAT
PROTECTOR
REGULATOR
+
–
+
–
RESET
VREF
COMPARATOR
ERROR AMP
OSC
1
VIN
2
SW OUT
3
GND
4
VOS
5
S.S
IC1405 SI-8120JF
OVER
CURRENT
PROTECTOR
LATCH
&
DRIVER
OVER HEAT
PROTECTOR
REGULATOR
ON/OFF
SOFT
START
+
–
+
–
RESET
VREF
COMPARATOR
ERROR AMP
OSC
1
VIN
2
SW OUT
3
GND
4
VOS
5
ON/OFF
