Sony STR-DA3300ES - D_VIDEO Board; A_VIDEO Board

STR-DA3300ES/DG1100
20

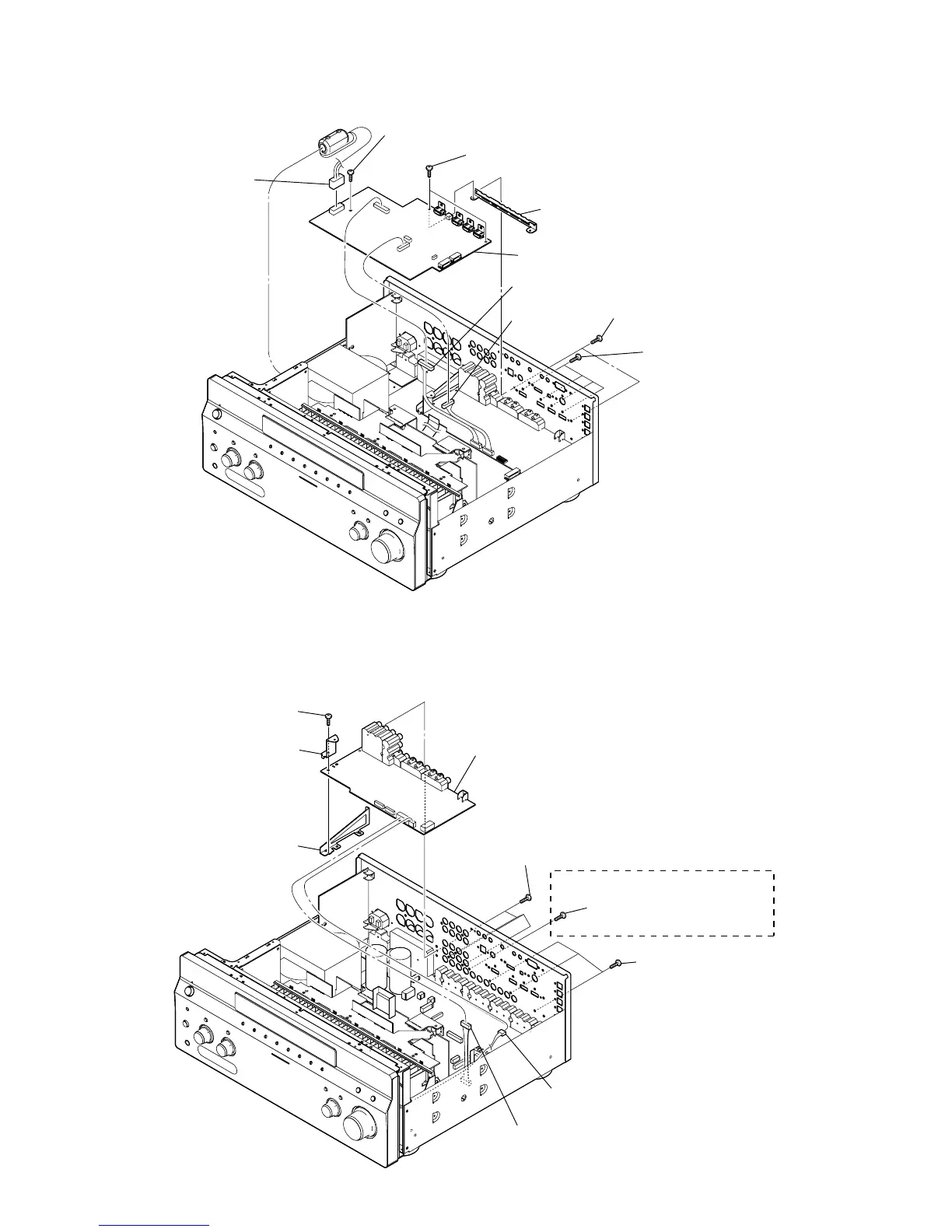

3-8. D_VIDEO BOARD
9 D_VIDEO board
8 bracket (HDMI-A13)
2 connector
(CN3506)
3 connector
(CN3602)
5 two screws
(BVTP3
× 8)
4 four screws
(B3
× 6)
6 screw
(BVTP3
× 8)
7 two screws
(BVTP3
× 8)
1 connector
(CN3508)
3-9. A_VIDEO BOARD
7 A_VIDEO board
5 reinforcement (audio)
6 bracket (video PWB)
1 connector
(CN6501)
2 connector
(CN6204)
3 three screws
(BVTP3
× 8)
3 screw
(BVTP3
× 8)
3 four screws
(BVTP3
× 8)
4 screw
(BVTP3
× 8)
(DA3300ES: US and Canadian models)
Ver. 1.1
