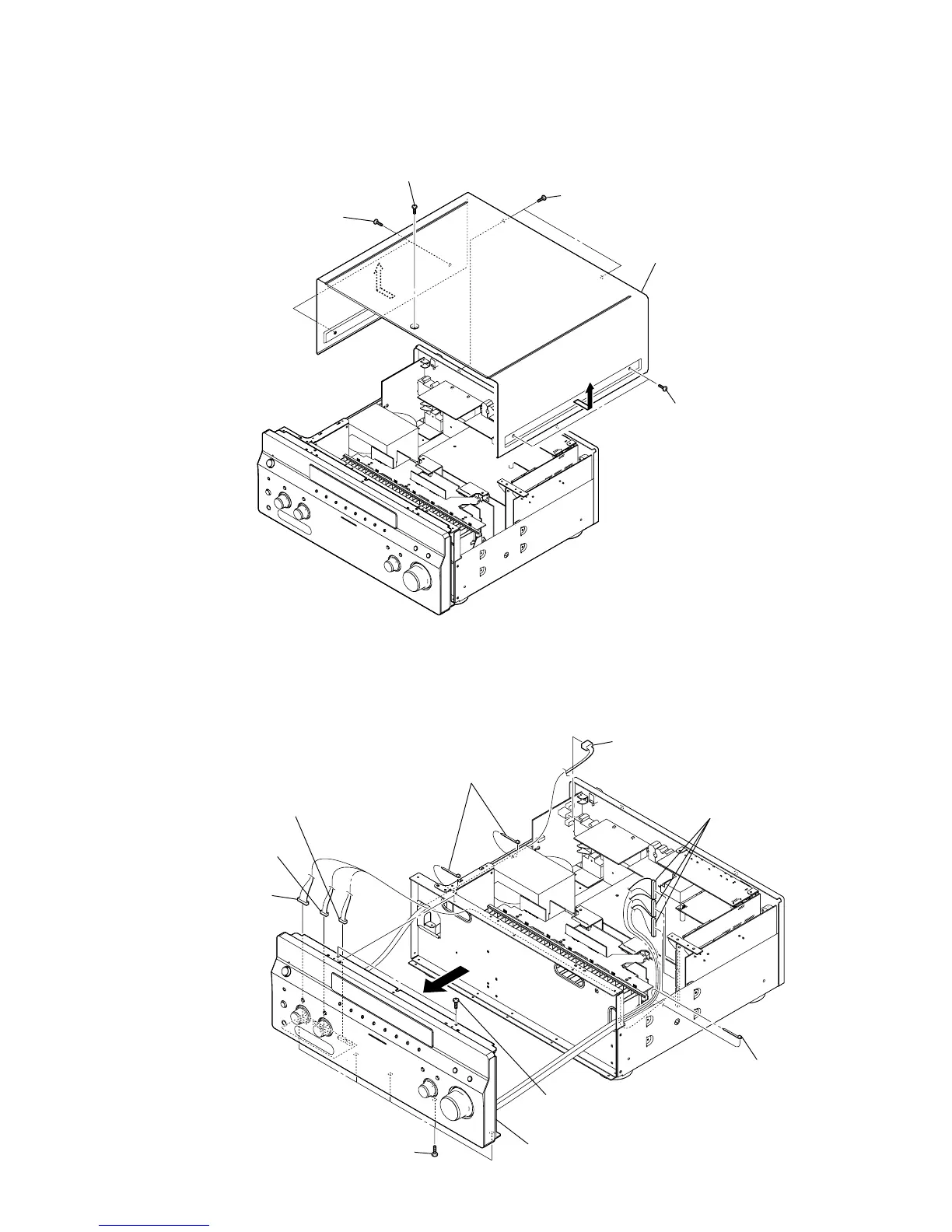

3-3. FRONT PANEL BLOCK
Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE
3 flat head screw
(TP)
5 case
4
4
1 two screws
(BVST4
× 8 (for black)),
(BVTT4
× 8 (for silver))
1 two screws
(BVST4
× 8 (for black)),
(BVTT4
× 8 (for silver))
2 two flat head screws
(TP)
3 connector
(CNP53)
6 two screws
(BVTP3
× 8)
5 five screws
(BVTP3
× 8)
qa front panel block
7
1 two clamps
2 clamp
4 three connectors
(CN2015, CN2016, CN2017)
q; connector
(CN721)
9 connector
(CN728)
8 connector
(CN725)
