Sony STR-DA3300ES - A_VIDEO Board Section

151
STR-DA3300ES/DG1100
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
252 A-1254-399-A A_VIDEO BOARD, COMPLETE
(DA3300ES: US, CND)
252 A-1254-410-A A_VIDEO BOARD, COMPLETE
(DA3300ES: AEP, ECE, UK)
252 A-1254-422-A A_VIDEO BOARD, COMPLETE (DG1100)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

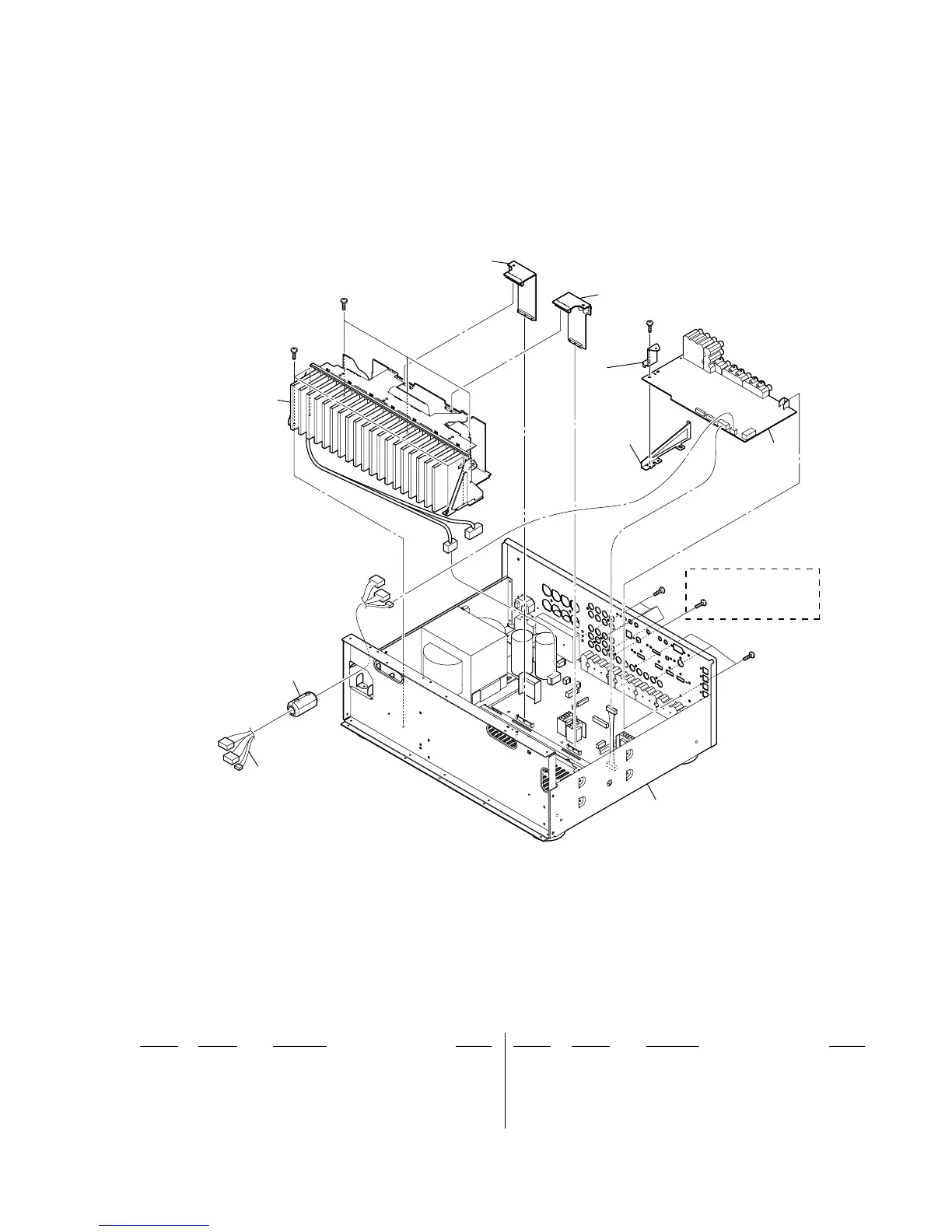

7-6. A_VIDEO BOARD SECTION
251
#1
#1
#1
#1
#1
#1
MAIN board section
heat sink section
not supplied
not
supplied
not
supplied
not supplied
(CONNECTOR 4 board)
not supplied
(CONNECTOR 3 board)
252
(DA3300ES: US, CND)
Ver. 1.2
