Sony STR-DA3300ES - 7 Exploded Views; Case Section

146
STR-DA3300ES/DG1100
SECTION 7
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 2-698-310-01 LID (A2) (BLACK)
1 2-698-310-11 LID (A2) (SILVER)
2 2-668-102-11 CASE (BLACK)
2 2-668-102-31 CASE (SILVER)
3 2-580-630-01 SCREW, +BVST 4X8 (for BLACK)
3 7-685-881-04 SCREW +BVTT 4X8 (S) (for SILVER)
4 4-227-843-03 SCREW (TP), FLAT HEAD (for BLACK)
4 4-227-843-31 SCREW (TP), FLAT HEAD (for SILVER)
5 3-701-748-00 CLAMP
6 3-655-653-11 BAND (TAITON), BINDING
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#1
AC/DC-DC boards section
#1
DISPLAY board section
1
2
3
4
4
3
not supplied
not supplied
5
5
5
56

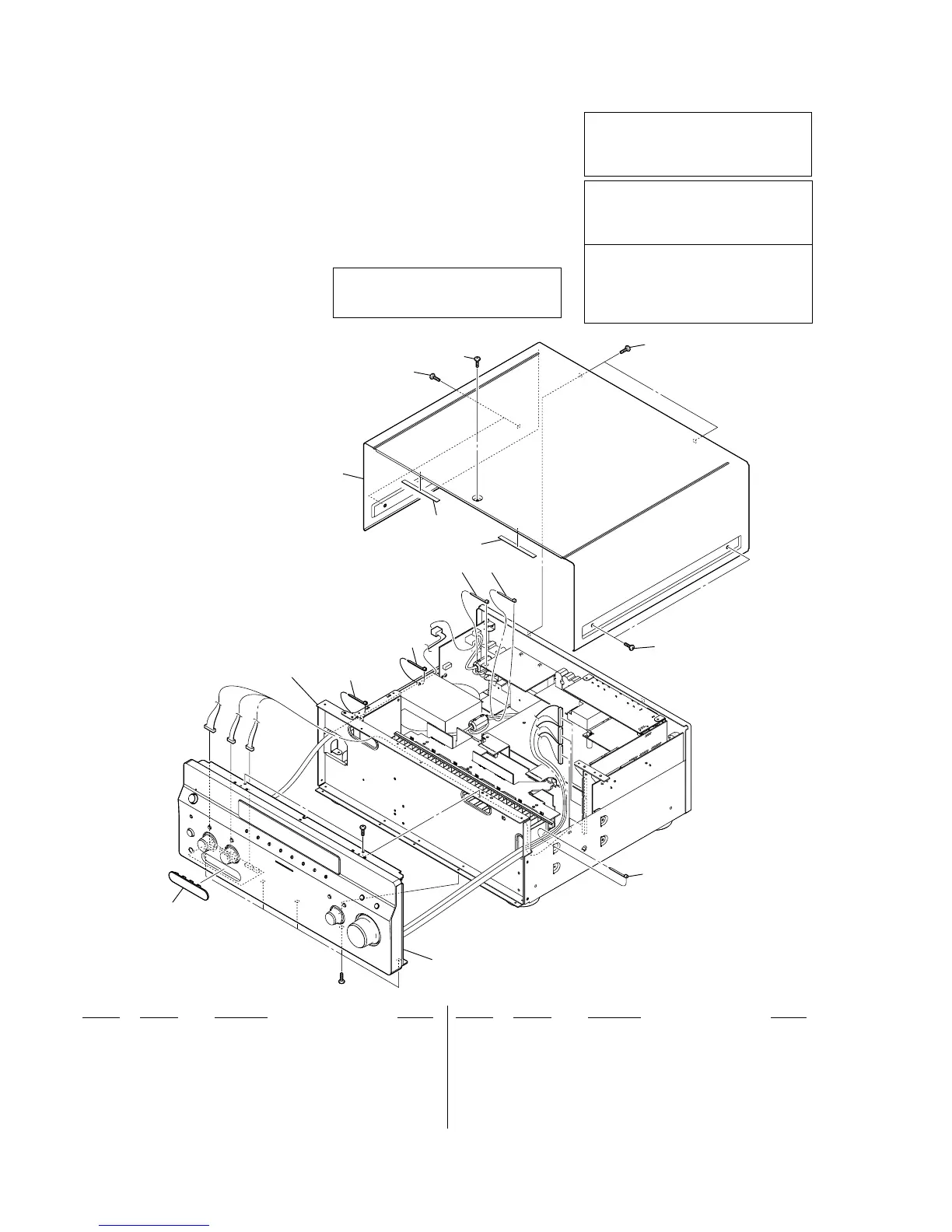

7-1. CASE SECTION
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
CND : Canadian model
ECE : Russian and Ukrainian models
• Color Variation
US, CND, UK: BLACK
AEP, ECE : BLACK/SILVER
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
Les composants identifiés par une marque 0
sont critiquens pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Ver. 1.2
The components identified by mark 9 contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifiés par la marque 9
contiennent des informations confidentielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé et /
ou réparé.
