Sony STR-DA3300ES - MAIN Board Section

153
STR-DA3300ES/DG1100

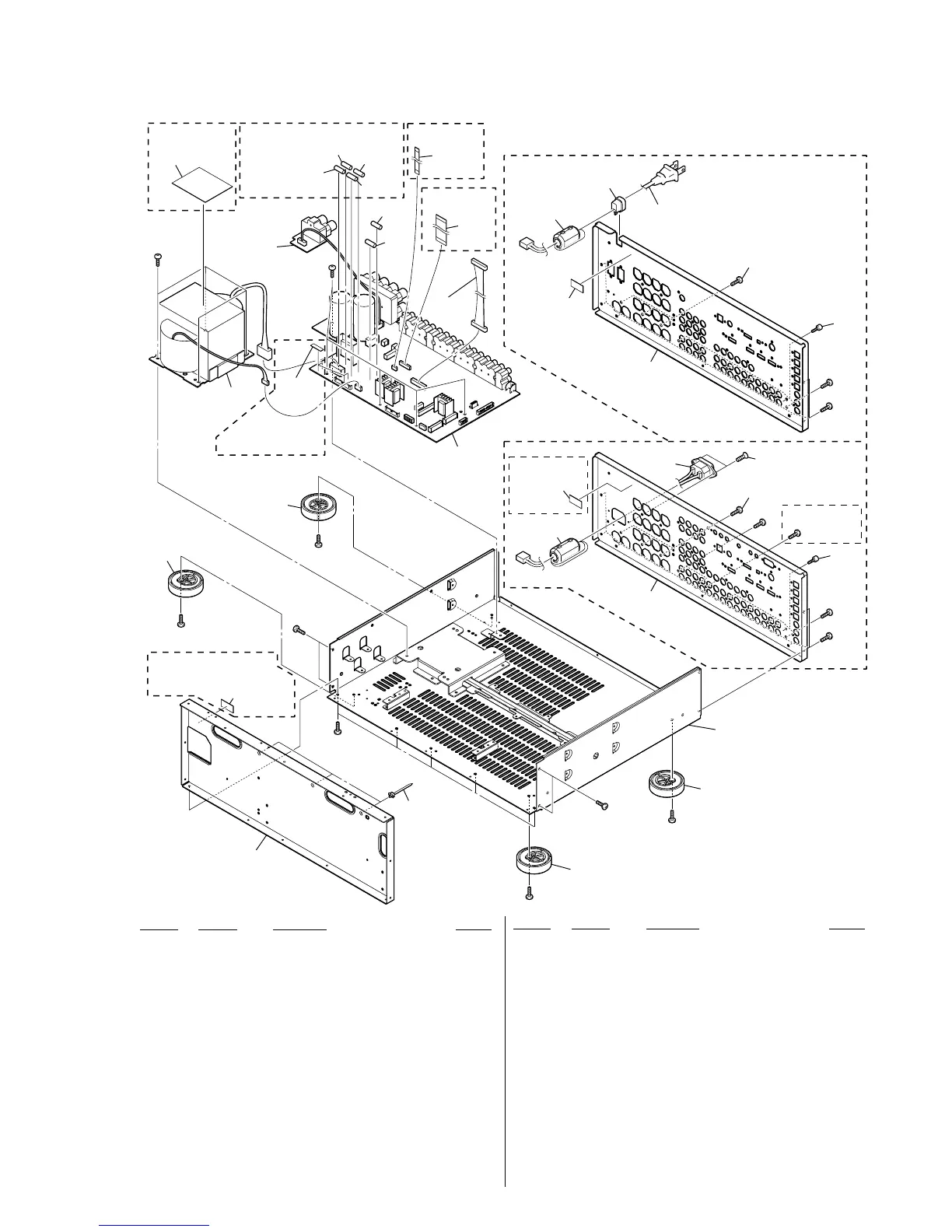

7-8. MAIN BOARD SECTION
(DG1100)
(DG1100)
(DA3300ES)
(DA3300ES: AEP, ECE, UK)(DA3300ES)
(DA3300ES: AEP,
ECE, UK)
(DA3300ES)
(US, CND)
(US, CND)
(DA3300ES: US, CND/
DG1100)
#1
#1
#1
#1
J01
#1
#1
#1
#1
#1
#1
#4
#4
#4
#4
#5
not supplied
not supplied
not
supplied
T001
F1001
F1002
F1003
F1004
F1005
F1006
not supplied
not supplied
not
supplied
not supplied
not supplied
not supplied
not supplied
not supplied
351
351
351
351
352
353
354
355
356
357
357
358
358
359
360
361
not supplied
(C_SPTM board)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
351 X-4955-348-1 FOOT ASSY
352 A-1252-439-A MAIN BOARD, COMPLETE
(DA3300ES: AEP, ECE, UK)
352 A-1254-392-A MAIN BOARD, COMPLETE
(DA3300ES: US, CND)
352 A-1254-418-A MAIN BOARD, COMPLETE (DG1100)
353 1-500-497-21 FILTER, CLAMP (FERRITE CORE) (DG1100)
354 1-500-386-11 FILTER, CLAMP (FERRITE CORE) (DA3300ES)
355 3-703-244-00 BUSHING (2104), CORD (DG1100)
0 356 1-783-820-11 CORD, POWER (DG1100)
357 3-704-515-51 SCREW (BV/RING)
358 4-947-010-01 SCREW, FEEDER FIXED
359 2-580-644-01 SCREW, +KTP2 3X8 (DA3300ES)
360 1-828-362-51 WIRE (FLAT TYPE) (19 CORE) (DA3300ES)
361 1-828-292-51 WIRE (FLAT TYPE) (5 CORE) (DG1100)
0 F1001 1-532-504-33 FUSE (T4AL/250V)
0 F1002 1-532-504-33 FUSE (T4AL/250V)
0 F1003 1-532-506-33 FUSE (T6.3AL/250V) (DA3300ES: AEP, ECE, UK)
0 F1004 1-532-506-33 FUSE (T6.3AL/250V) (DA3300ES: AEP, ECE, UK)
0 F1005 1-532-506-33 FUSE (T6.3AL/250V) (DA3300ES: AEP, ECE, UK)
0 F1006 1-532-506-33 FUSE (T6.3AL/250V) (DA3300ES: AEP, ECE, UK)
0 J01 1-821-082-21 INLET, AC 2P (-AC IN) (DA3300ES)
0 T001 1-445-232-11 TRANSFORMER, POWER
(DA3300ES: US, CND/DG1100)
0 T001 1-445-233-11 TRANSFORMER, POWER
(DA3300ES: AEP, ECE, UK)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-885-09 SCREW +BVTT 4X16 (S)
#5 7-685-881-09 SCREW +BVTT 4X8 (S)
Ver. 1.2
