Sony STR-DA3300ES - D_AUDIO;D_VIDEO Boards Section

150
STR-DA3300ES/DG1100
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
9 201 A-1313-289-A D_VIDEO BOARD, COMPLETE (for SERVICE)
202 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
203 A-1252-458-A TUNER BOARD, COMPLETE
(DA3300ES: AEP, ECE, UK)
203 A-1254-402-A TUNER BOARD, COMPLETE
(DA3300ES: US, CND/DG1100)
204 3-378-109-12 CUSHION, SARANET
205 A-1254-389-A CONTROL BOARD, COMPLETE
(DA3300ES: US, CND)
205 A-1254-408-A CONTROL BOARD, COMPLETE
(DA3300ES: AEP, ECE, UK)
205 A-1254-658-A CONTROL BOARD, COMPLETE (DG1100)
206 3-087-053-01 +BVTP2.6 (3CR)
207 A-1253-114-A DSP BOARD, COMPLETE
208 1-828-367-51 WIRE (FLAT TYPE) (21 CORE)
209 A-1252-437-A D_AUDIO BOARD, COMPLETE
(DA3300ES: AEP, ECE, UK)
209 A-1254-390-A D_AUDIO BOARD, COMPLETE
(DA3300ES: US, CND/DG1100)
* 210 1-481-077-11 CORE, FERRITE
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-682-547-04 SCREW +B 3X6
201
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#3
#3
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
A_VIDEO board section
not supplied
not supplied
not supplied
202
203
204
204
205
206
207
208
210
208
209
(DA3300ES: US, CND/
DG1100)

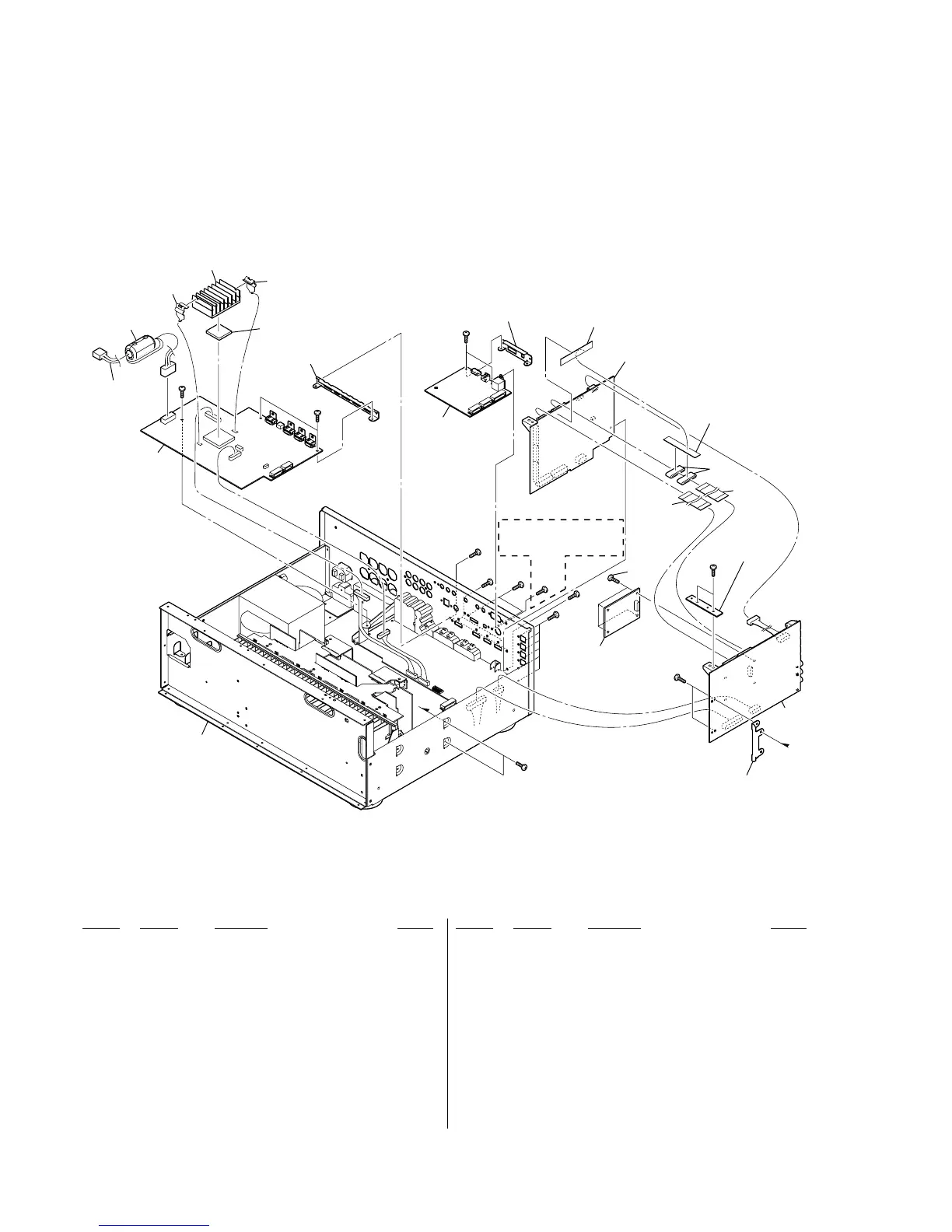

7-5. D_AUDIO/D_VIDEO BOARDS SECTION
Ver. 1.2
