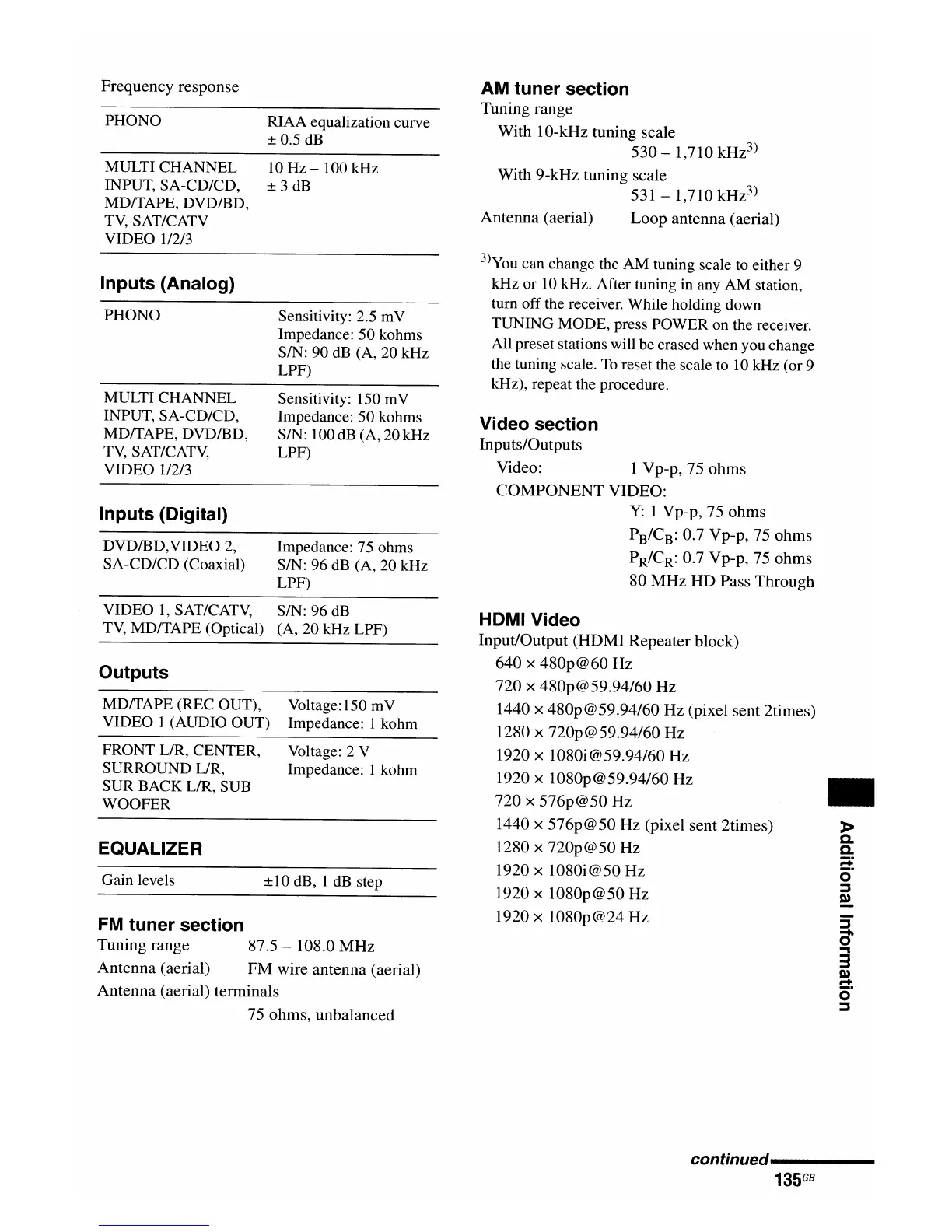

Sony STR-DA3300ES - Page 135

Frequency response
PHONO
MULTI CHANNEL
INPUT, SA-CD/CD,
MDITAPE, DVDIBD,
TV, SAT/CATV
VIDEO 1/2/3
RIAA equalization curve
± 0.5 dB
10 Hz - 100 kHz
± 3 dB
AM tuner section
Tuning range
With 10-kHz tuning scale
530 - 1,710 kHz
3
)
With 9-kHz tuning scale
531 - 1,710
kHz
3
)
Antenna (aerial)
Loop antenna (aerial)
Inputs (Analog)
PHONO
MULTI CHANNEL
INPUT, SA-CD/CD,
MDITAPE, DVDIBD,
TV, SAT/CATV,
VIDEO 1/2/3
Inputs (Digital)
DVDIBD,VIDEO 2,
SA-CD/CD (Coaxial)
Sensitivity: 2.5 mV
Impedance: 50 kohms
S/N: 90
dB (A, 20 kHz
LPF)
Sensitivity: 150 mV
Impedance: 50 kohms
SIN: 100dB (A,
20kHz
LPF)
Impedance: 75 ohms
SIN: 96
dB (A, 20 kHz
LPF)
3)you can change the AM tuning scale
to either 9
kHz or 10kHz. After tuning in any AM station,
turn off the receiver. While holding down
TUNING MODE, press POWER on the receiver.
All preset stations will be erased when you change
the tuning scale.
To reset the scale to 10kHz (or 9
kHz), repeat the procedure.
Video section
Inputs/Outputs
Video: 1 Vp-p, 75
ohms
COMPONENT VIDEO:
Y: 1 Vp-p, 75 ohms
PB/C
B
: 0.7 Vp-p, 75 ohms
PR/C
R
: 0.7 Vp-p, 75
ohms
80 MHz HD Pass Through
VIDEO
1, SAT/CATV, SIN: 96 dB
TV, MD/TAPE (Optical) (A, 20 kHz LPF)
FM tuner section
Tuning range 87.5 - 108.0 MHz
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals
75 ohms, unbalanced
MDITAPE (REC OUT),
VIDEO 1 (AUDIO OUT)
..
HDMI Video
Input/Output (HDMI Repeater block)
640 x 480p@60 Hz
720 x 480p@59.94/60 Hz
1440 x 480p@59.94/60 Hz (pixel sent 2times)
1280 x 720p@59.94/60
Hz
1920 x 1080i@59.94/60 Hz
1920 x 1080p@59.94/60 Hz
720 x 576p@50 Hz
1440 x 576p@50 Hz (pixel sent 2times)
1280 x
720p@50 Hz
1920 x 1080i@50 Hz
1920 x 1080p@50 Hz
1920 x 1080p@24 Hz
Voltage: 2 V
Impedance: 1 kohm
Voltage: 150 mV
Impedance: 1 kohm
±10 dB, 1
dB step
Gain levels
FRONT L/R, CENTER,
SURROUND L/R,
SUR BACK L/R, SUB
WOOFER
EQUALIZER
Outputs
conNnued----------
135
