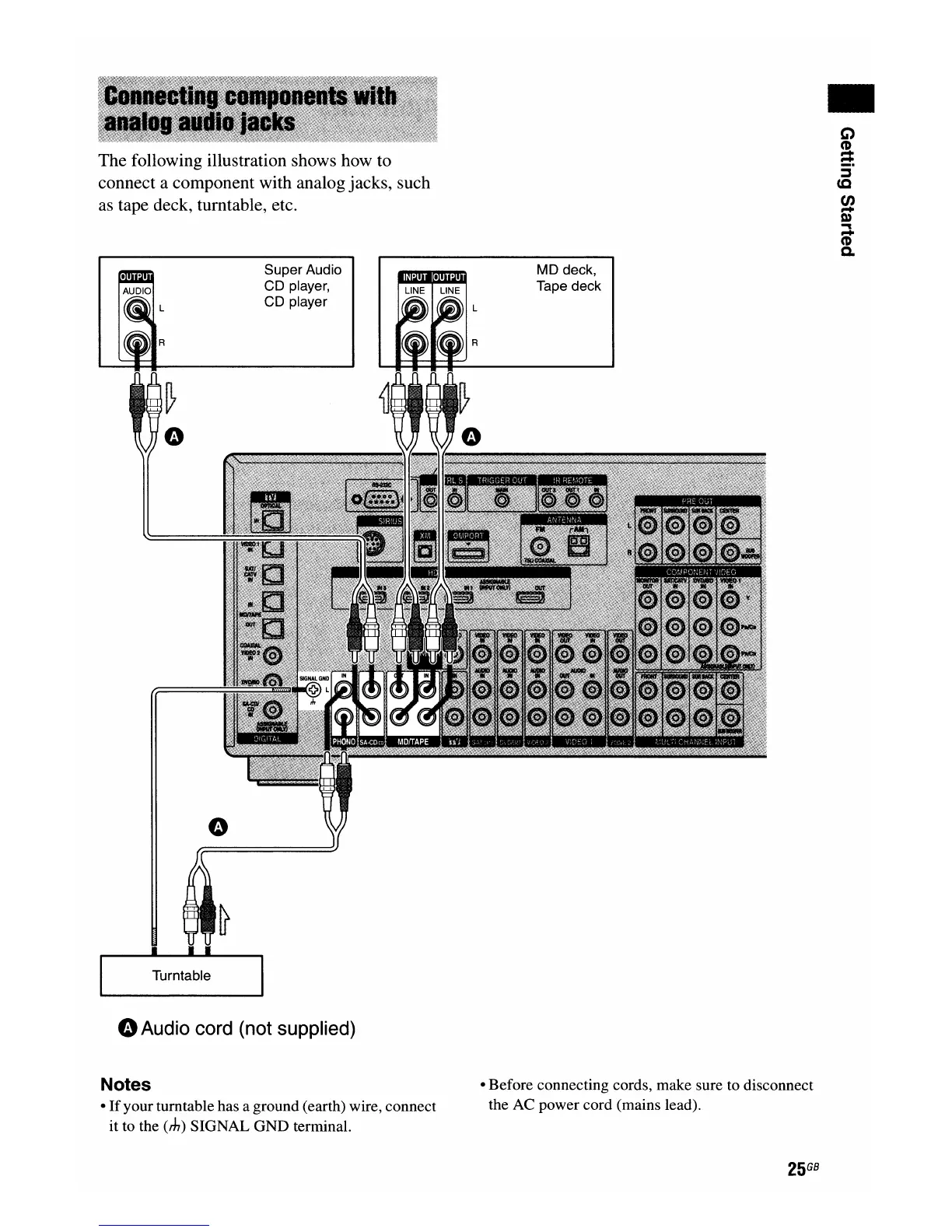

The following illustration shows how to
connect a component with analog jacks, such
as
tape deck, turntable, etc.
Super Audio
CD player,
CD player
I
Turntable
"Audio
cord
(not supplied)
..
MD deck,
Tape deck
..
Notes
•
If
your turntable has a ground (earth) wire, connect
it to the
(rh) SIGNAL
GND
terminal.
• Before connecting cords, make sure to disconnect
the AC power cord (mains lead).
25
GB
