Installation
Installation 17 (GB)
Variable Range of the Optical Axis Angle in Rear Projection

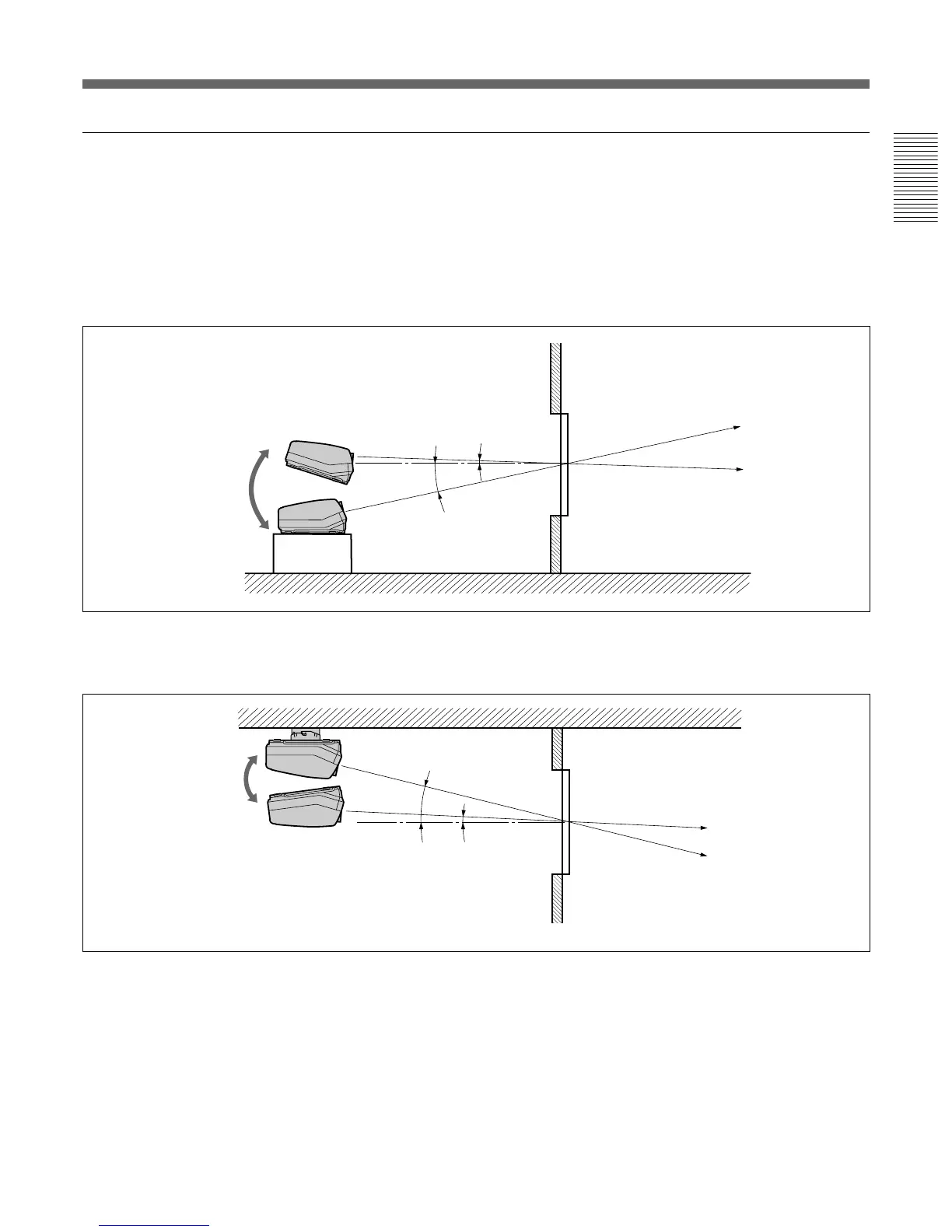

You can change the optical axis angle within the following ranges by
adjusting flapping of the lens.
For adjusting flapping of the lens, see “Adjusting flapping of the green lens” on
page 62 (GB).
On floor installation
You can install the projector within an angle of optical axis –13.5° to +2°.
On ceiling installation
You can install the projector within an angle of optical axis +3° to +13.5°.
n : Optical axis
– · – · : Horizontal line
n : Optical axis
– · – · : Horizontal line
+2°
–13.5°
+3°
+13.5°
Wall
Wall
Floor
Ceiling
