Sophos WS100 User Manual

is always a bridge card in a WS1000. Bridge cards are optional for the WS500 and WS1100.
There is never a bridge card in a WS100, SM2000, or SM5000.
For appliances with no bridge card:

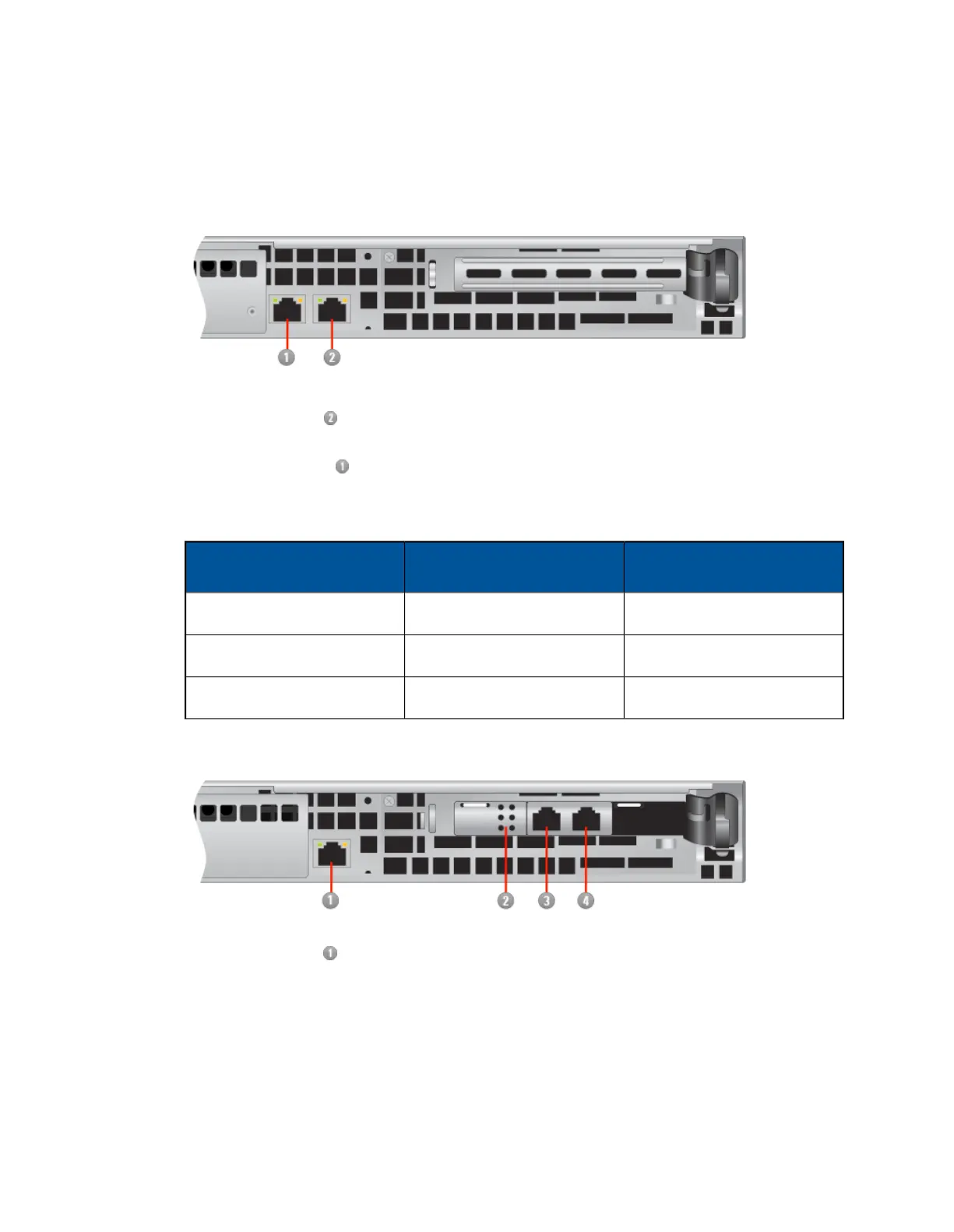

There are two RJ45 network ports along the bottom of the appliance to the right of the middle:
■
The Config port : This is the port to which you connect your laptop or PC to run the setup
wizard.
■
The Network port : This is the port to which you make your LAN connection after the setup
wizard has been completed.
The two LEDs at the top of these ports indicate the following:
IndicatesColorLED Position
100 MbpsGreenLeft
1 GbpsAmberLeft
Port activeBlinking YellowRight
For appliances with a bridge card:
There is one RJ45 network port along the bottom of the appliance to the right of the middle, the
Configuration port . This is the port to which you connect your laptop or PC to run the setup
wizard.
The two LEDs at the top of this port indicate the following:
14 | Getting Started | Sophos Web Appliance

Sophos WS100 Specifications

General

Brand	Sophos
Model	WS100
Category	Firewall
Language	English
