3. Taking an Exposure CRANEX Novus e

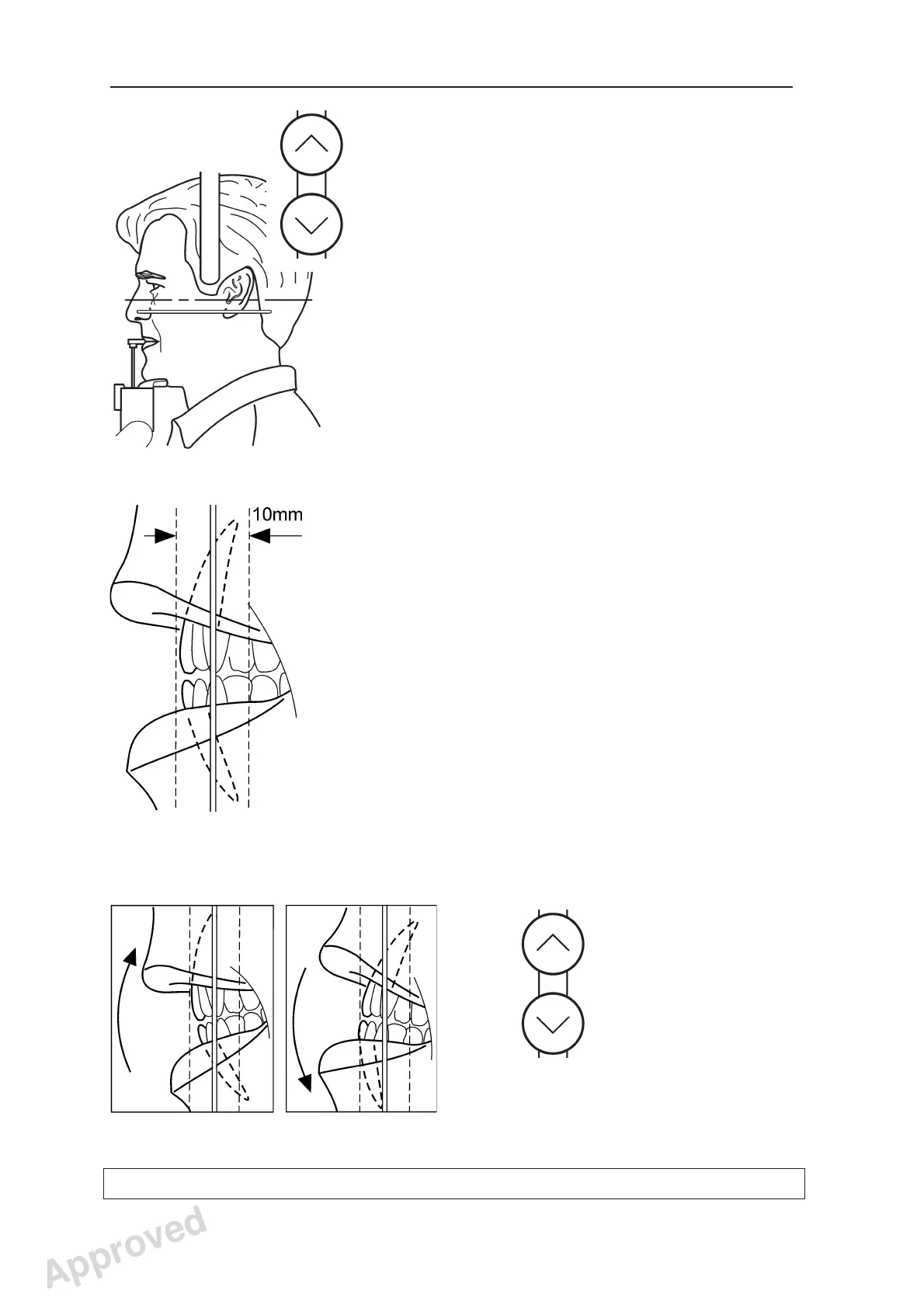

12. Press either Up/Down key to adjust the tilt of
the patient’s head until the patient’s Frankfort
plane coincides with, or is parallel to, the
horizontal light.
If necessary use the light positioning knob to
adjust the height of the light.
CAUTION:
When pressing the Up/Down keys to adjust the
tilt of the patient’s head make small adjustments
only so as not to cause the patient any distress
or discomfort.
13. The focal trough light indicates the center of the
focal trough which is 10 mm wide at the front.
Make sure that the roots of the front incisors are
located within the focal trough and are on the
same vertical plane.
If the roots of the front incisors are not on the
same vertical plane adjust the tilt of the patient’s
head until they are.
