CRANEX Novus e 3. Taking an Exposure
User manual 208898 33

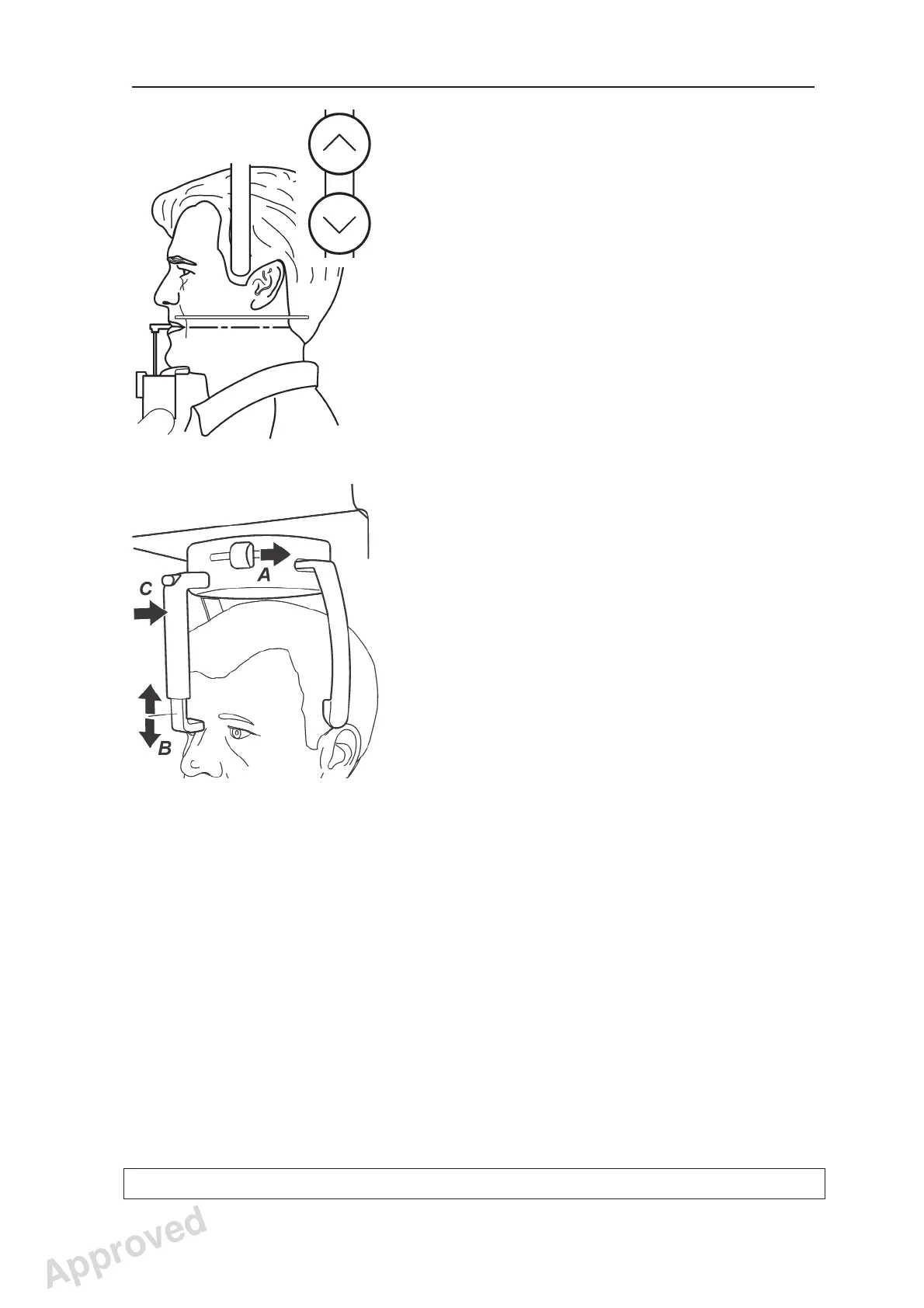

11. Press either Up/Down key to adjust the tilt of
the patient’s head until the patient’s Occlusal
plane coincides with, or is parallel to, the
horizontal light.
If necessary use the light positioning knob to
adjust the height of the light.
CAUTION:
When pressing the Up/Down keys to adjust the
tilt of the patient’s head make small adjustments
only so as not to cause the patient any distress
or discomfort.
12. Close the temple supports by sliding the temple
support knob to the right (A). Make sure that
patient’s neck is stretched and straight.
Adjust the height of the forehead support until it
is level with the patient’s forehead or nasion (B).
Carefully push the forehead support in until it
touches the patient’s forehead or nasion (C).
13. Ask the patient to press their lips together and
press their tongue against the roof of their
mouth.
Close the mirror. Then ask the patient to look at
a fi xed point in the mirror and to remain still for
the duration of the exposure.
The exposure takes approximately nine
seconds.
