5.3.2: STAGEBOXES
INPUTS AND OUTPUTS > ViSi CONNECT > STAGEBOXES
5.3.2 INPUTS & OUTPUTS > ViSi CONNECT > STAGEBOXES

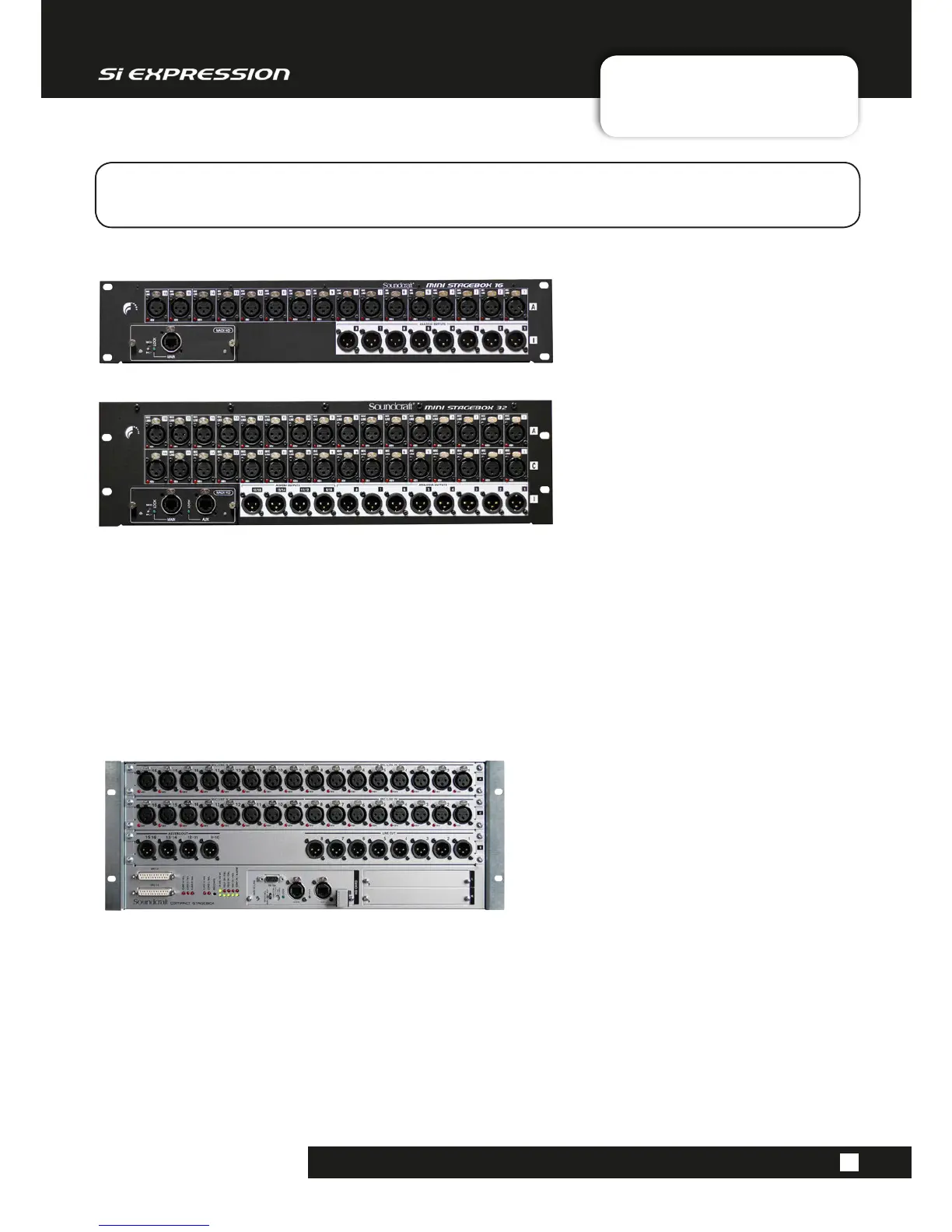

Soundcraft Mini Stagebox
Two variations of a smaller Stagebox for general use when modular I/O is not required.
The Mini Stagebox 32 (3U) provides 32 analogue inputs and 8 analogue line outputs, with 4 pairs of AES
outputs, providing a total I/O capacity of 32 inputs and 16 outputs, with the Mini Stagebox 16 (2U) model
providing 16 analogue inputs and 8 line outputs making a 16 x 8 matrix. They connect to any of the
Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card
tted to the option card slot.
Soundcraft Compact Stagebox
A high density of I/O connections in only 4U of rack space. The modular unit is fully congurable but is
offered with a standard conguration of 32 mic/line inputs, 8 line outputs, 8 channels of AES/EBU outputs
and 2 expansion slots for standard Studer D21m I/O cards. The D21m is the I/O architecture for Studer as
well as Soundcraft digital mixing systems and allows connection to most popular digital formats, including
CobraNet®, AVIOM A-Net®16, Ethersound, ADAT and RockNet. A MADI recording interface can also be
tted to the expansion slots.
With a MADI card tted, the Si Expression can be connected to A variety of additional I/O, including
the Soundcraft Stageboxes.
