User Manual
5.0: INPUTS & OUTPUTS
INPUTS AND OUTPUTS
5: INPUTS & OUTPUTS

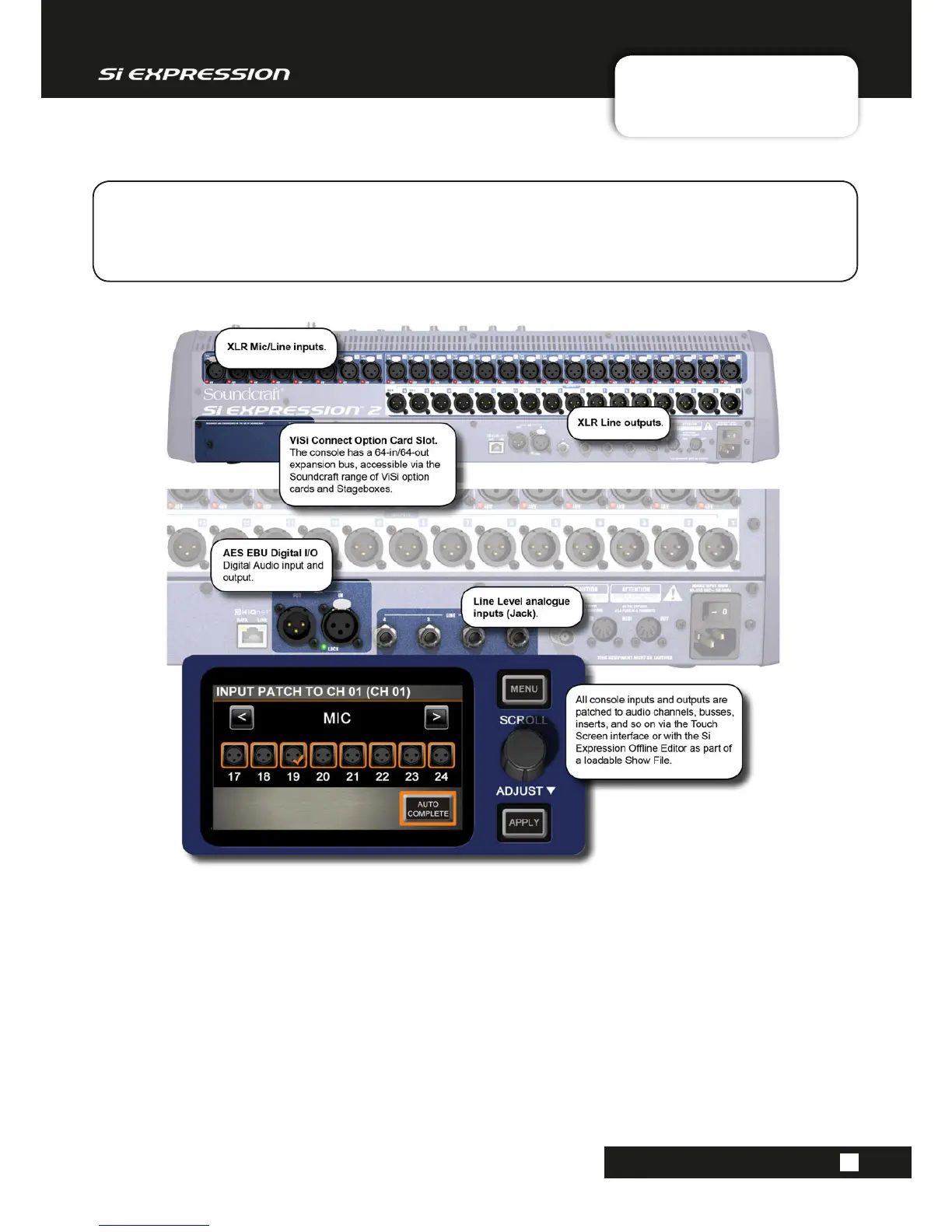

The console has an assignable patching system for all inputs and outputs. In other words, any
internal audio signal input or output can be assigned a physical input or output. At its simplest, this
might mean that the input to Channel 1 is patched to MIC01 (the rst local mic/line XLR
socket).
The console does have a factory default patching conguration, which is used whenever the console
is reset to its default (SYSTEM menu > RESET PATCHING or RESET ALL).
Additionally, the console has a ViSi compatible option card slot with 64-in / 64-out expansion
capability that can be used with a wide range of I/O cards, or a Soundcraft Stagebox (when a MADI
card is installed).
